Ditec DAS107PLUS
Automation for sliding doors, designed to make your life easier
Ditec DAS107PLUS is the sliding door operator able to satisfy all requirements in standard commercial environments with frame weight up to 160 kg.
Designed to be easy and fast to install, Ditec DAS107PLUS is the perfect choice for professionals in door automation who look for low inventory cost and ease of maintenance.
QUALITY & RELIABILITY
Ditec DAS107PLUS is the sliding door operator focusing on the needs of our customers and featuring high quality components at the right value:
- Performing electromechanical operator for up to 160 kg door weight
- Tested up to 1 Million cycles

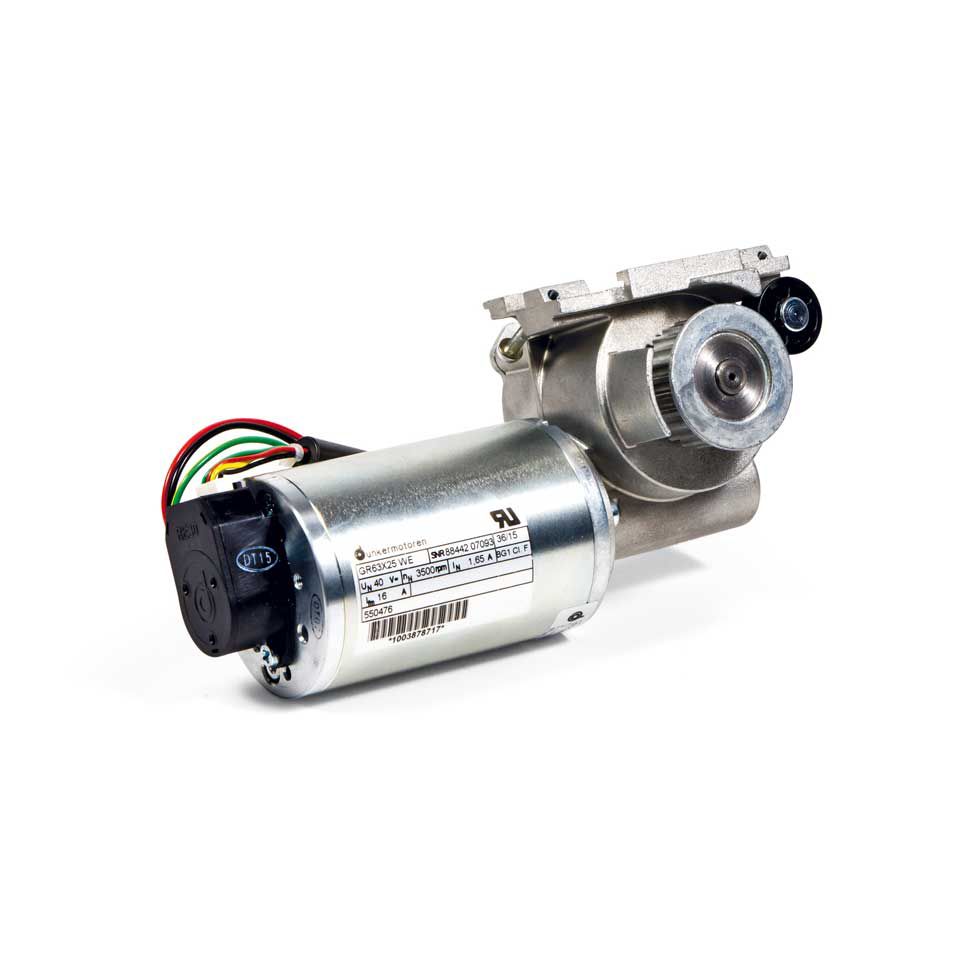

- Long-lasting automation with 24 Vdc DUNKERMOTOREN™ with built-in Encoder
- Reinforced techno-polymer wheels in DUPONT™ Delrin®
- Fully certified and tested by TÜV SÜD
TIME SAVING INSTALLATION
NDesigned for a simple and efficient installation, few components to assemble and few steps to set-up. Ditec DAS107PLUS is the time saving solution for any need:

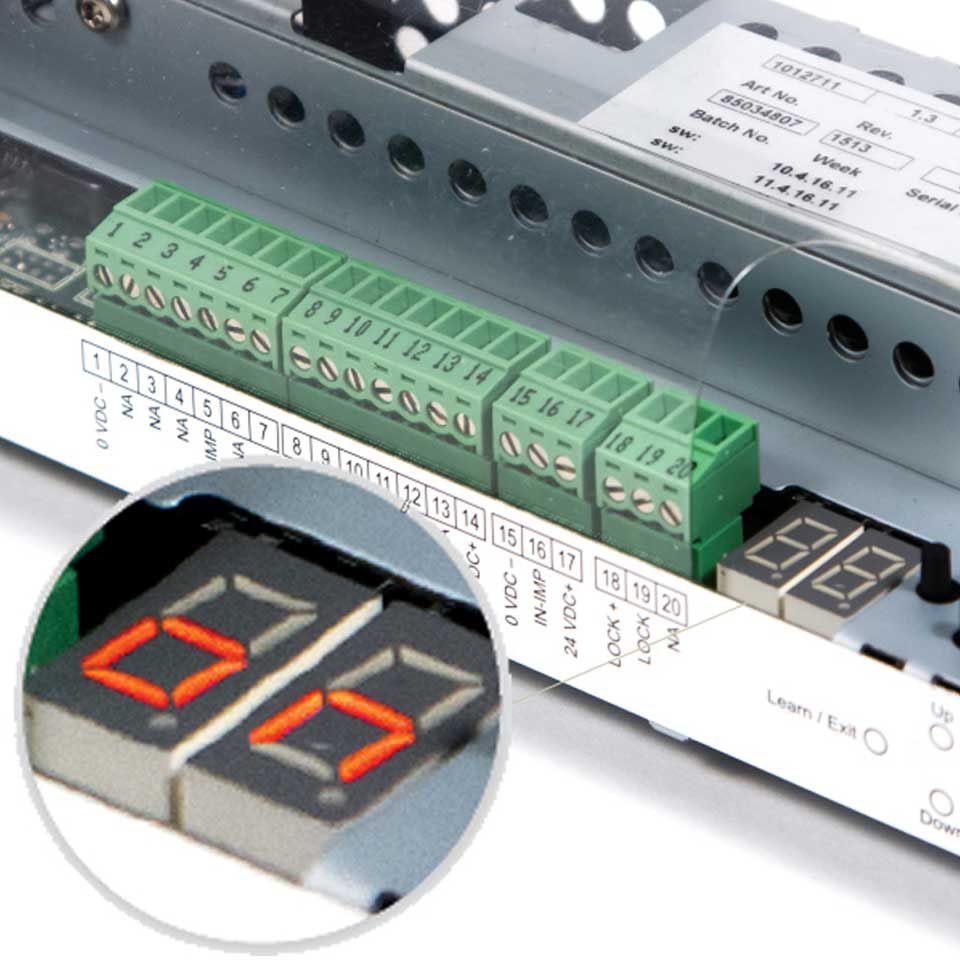

- Plug & Play connectors
- Automatic self-learning start-up mode, with auto detection of:
- weight of wings
- passage opening
- presence of locking device and typology (fail safe, fail secure)
- emergency and back-up batteries
- Easy and accurate control panel setting with digital programming and just few key parameters
- Switching power supply covering a wide range of electric voltages (100 Vac÷240 Vac; 50/60 Hz)
- Easy adjustment of trolleys and belt
EASY LOGISTIC
SDitec DAS107PLUS is the solution to optimize stock value and manage logistics:
- Easy to order: 1 kit, 1 beam and 1 cover and you’re ready to start with your operator
- The convenient kit item includes power supply, gear motor, control panel, trolleys and brackets
- Beam and cover available length: 4450 and 6650 mm
- Selected range of accessories to complete your installation
- One door holder for every application, designed in conjunction with Ditec AC glass profile wing, Ditec PAM and ALU profile series and any commercial frames
FULL COMPLIANCE WITH EU DIRECTIVES AND STANDARDS
Contact us
Accessories
DAS801LOK
Secure lock with external handle release. See the manual
DAS801LOKA
Safe lock. See the manual
DAS901BAT1
Battery kit, 12 V power supply for emergency use only
DAS902BAT2
Battery kit, 24 V power supply for back-up use
DAS11M8
Fixing plates kit for AC1356, PAM16 and PAM30. See the manual
DAS18M8
Fixing plates kit for AC4255 and AC4870. See the manual
DAS40M8
Fixing plates kit for ALU48. See the manual
DAS900PH1A
Pair of photocells
