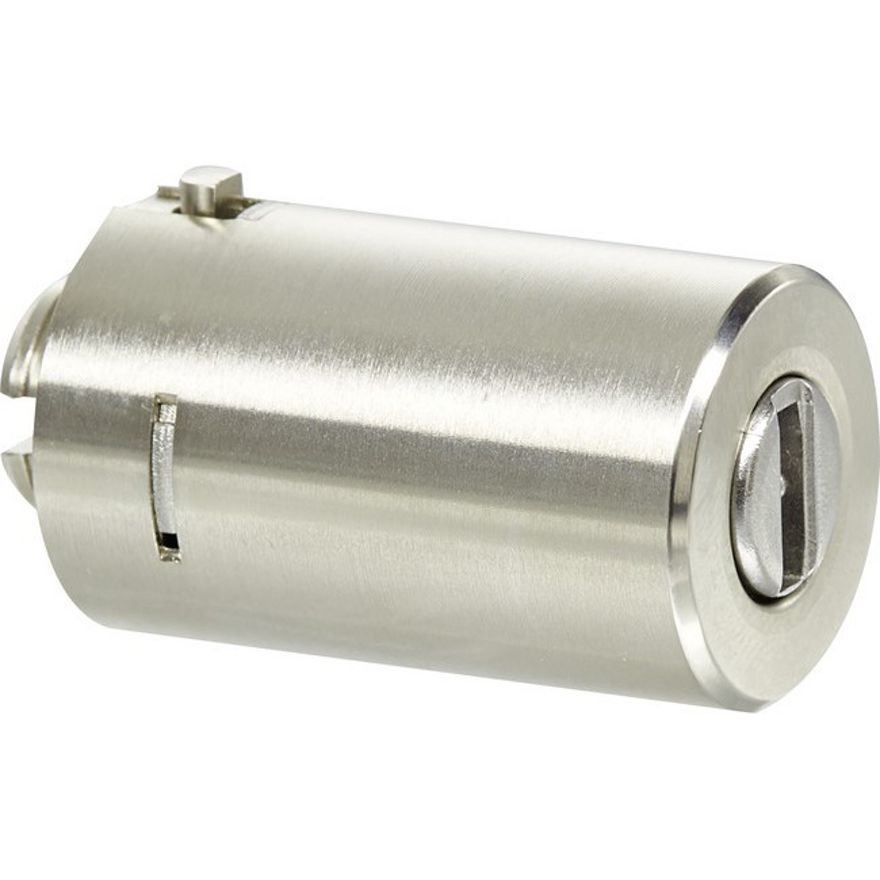

Switch cylinder eCLIQ NC52

Diameter 20 mm for electric rotary switches with multiple withdrawal positions - without key

Product description

Available as rotary secured or electronical version (V=)
Standard finish, satin nickel-plated (OF=MV)
Diameter 20 mm
For electric rotary switch with multiple withdrawal positions of various manufacturers
Key withdrawal in every resting position
Up to 12 resting positions possible
Display of switching position by the keyway
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

Ordering Information

Article number	OF= (Surface)	AUS= (Version)	V= (Version)
NC52	MV (Matt, nickel-plated)	1	E (Electronic secure version)

ATEX=	Description	Info
II 2G Ex ib IIB T4 Gb	Locking cylinders for Zone 1 hazardous areas	per cylinder

V2=	AUS3=	Description	Info
	ONLINE	Cylinder with function "Online Open", frontal marking with symbol "@"	per cylinder
	SEQUENCE	Cylinder with function "two-man rule", frontal marking with symbol "&"	per cylinder
OHNE AUDIT		Cylinder without events list, frontal marking with symbol "§"	per cylinder
