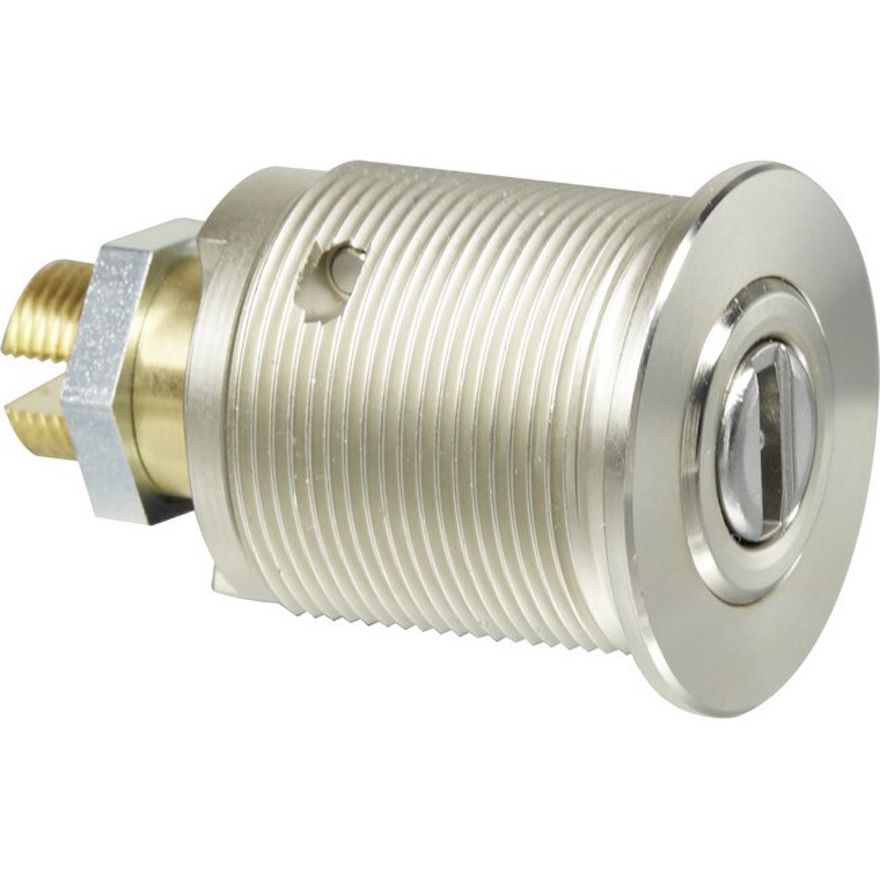

Locking cylinder eCLIQ NC31

23 mm diameter, laterally flattened - without key

Product description

• Available as electronical version (V=)
• Standard finish, satin nickel-plated (OF=MV)
• Maintenance-free for up to 200,000 cycles
• Splash-proof IP54
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 locking cylinder

Note

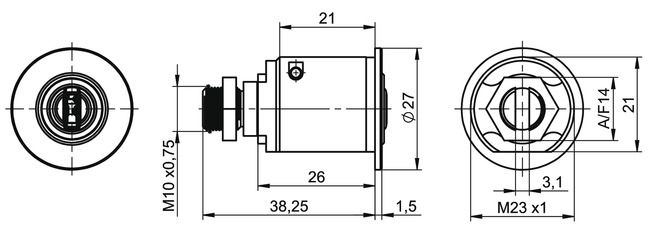

• Standard length of casing 26 mm (L=26), optionally 30 mm (L=30) available

Ordering Information

• The locking levers (KESO order numbers E.270 and E.275) are not included
