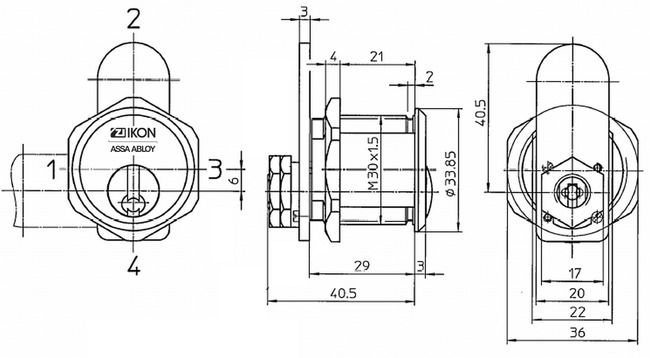

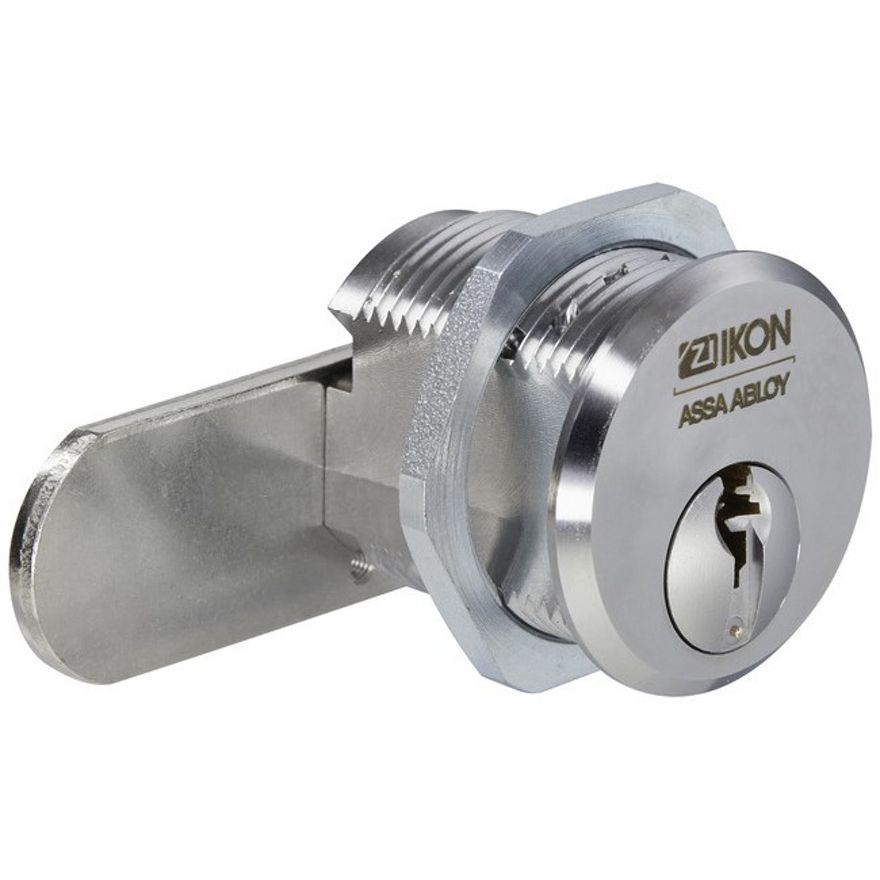

Locking lever cylinder +CLIQ .449,AUS=E29+CLIQ

30 mm Diameter , laterally flattened to 22 mm - without key

Product description

• For IKON locking systems in the system SK6
• 6 pin tumblers
• Brass cylinder
• Standard finish, matt chrome-plated (OF=MC)
• Other surfaces: satin nickel-plated (OF=MV), brass, mat brushed (OF=MG), polished brass (OF=MP)
• Drilling protection (AB=), additional lateral scanning, security card depending on profile (PR=)
• Spherical cylinder core head with reinforced key guide
• Core pins made of special wear-resistant bronze
• Locking lever path 90°
• Two locking lever end positions
• Fixing with M30x1.5 housing nut
• Key rotation 360° (2 key retraction positions)
• Locking lever SLHB= 1647004 (other locking levers available on request)
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb

Scope of delivery

• 1 locking lever cylinder
• 1 housing nut M30 x 1.5 x 4
• 2 core nuts M10 x 0,75 x 3
• locking lever fixed

Ordering Information

• Not available with drilling protection 2 (AB=2) or 3 (AB=3)
• Please include the desired locking path (SST=) in your order
