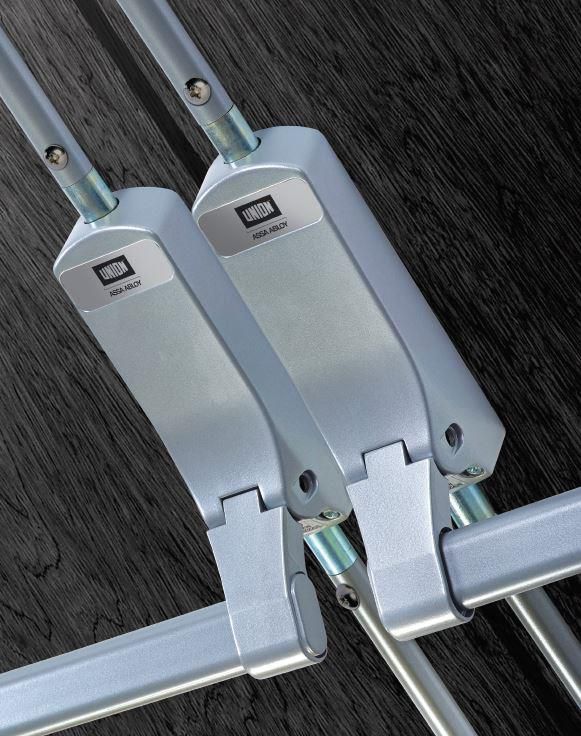

CE852DD - ExiSAFE Panic Set For Non-Rebated Double Doors

Application

A push bar surface mounted panic set for use on non-rebated double doors, comprising of 2 panic bolts.

• Ideal for final exit escape doors used by general public
• Install to push face of outward opening doors
• Non-handed for maximum flexibility
• Compatible with knob and lever CE855OAD outside access devices
• Each leaf can open independently of the other

Specification

• Proud to be "Made in Britain"
• CE Marked to EN 1125
• Certifire approved
• Can be used on timber fire doors (up to FD120) or metal fire doors up to (FD240) up to 1200mm x 2440mm tall
• Top and bottom shoot bolt rods can be cut to size on sit to fit each door
• Push bars can be cut to size on site to fit each door leaf
• Automatic top trip releases bolts only as door closes into frame, preventing damage to frame and flooring
• Anti-thrust features in main mechanism prevents top and bottom shoot bolts being pushed out of keeps to force the door open
• Easy clean floor socket provided as standard
• Alternative keeps and range of spares available
• Complete with "Push bar to open" signage
• Rod guides prevents shoot bolt rods from warping and protects against vandalism
• Install screws concealed by UNION branded labels and push bars
• Completed 200,000 cycles in durability testing
• 96 hours corrosion resistance
• Slim line design projects less than 100mm from door face
• 10 year guarantee

Finish

• Silver as standard
• Potential to supply other colours - please ask for details of range and MOQ

Standards

CE Marked to BS EN 1125
