4961.**.0SQ Freeline Hinge

Hydraulic Hinge

Description:

• Single hydraulic hinge wall plate with 4 fixing holes
• Hydraulic system for comfort in automatic door closing
• Aesthetic solution
• Adjustable closing speed
• For glass door
• 100kg easy installation
• Max. load 100kg for 2 hinges

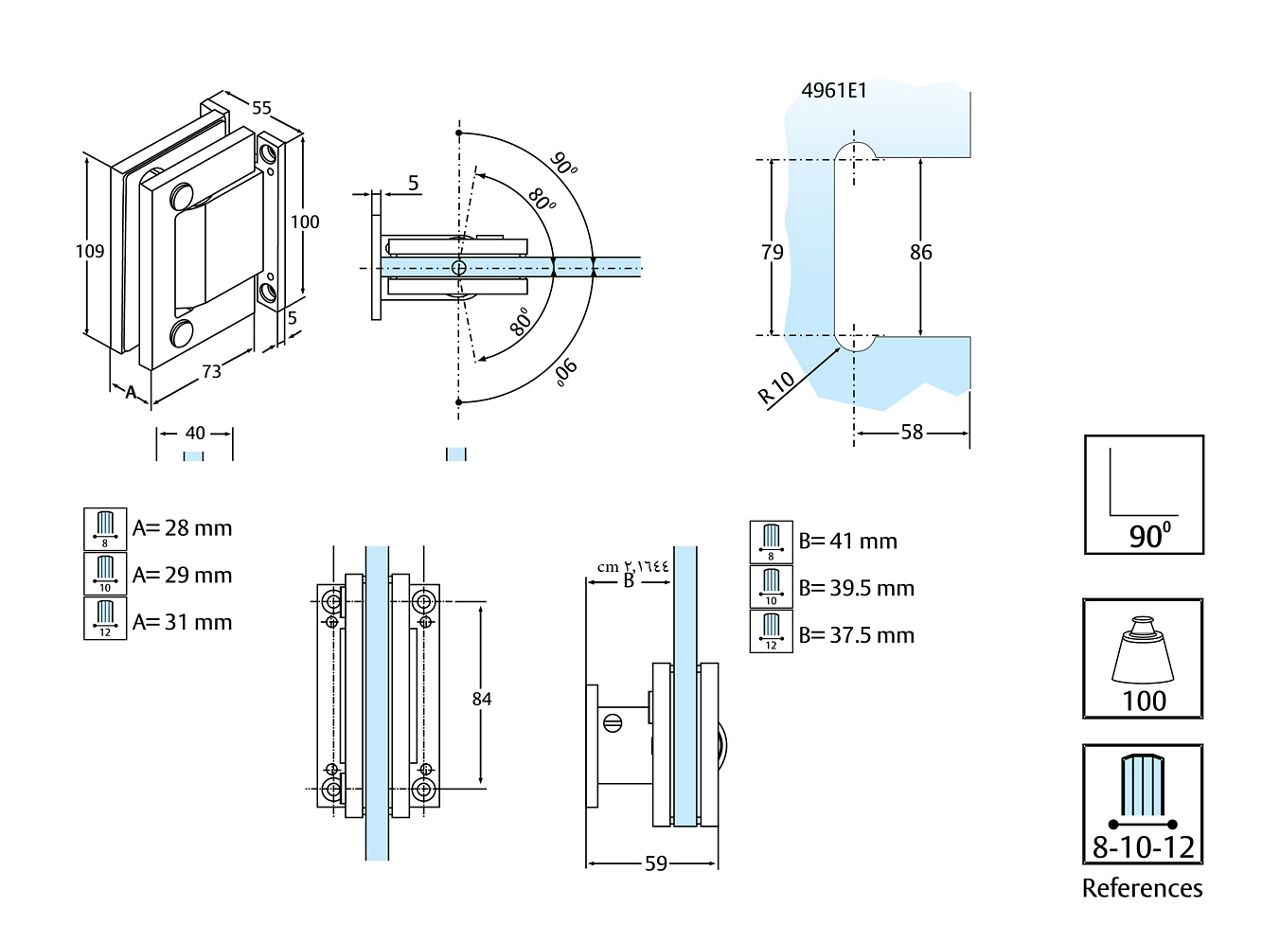

Technical details:

• Recommended for inside doors
• Maximum door size 1000mm x 3000mm
• For 8, 10 or 12mm thick toughened glass
• Blocking at 0° and 90° with hydraulic return from 80° to 0° on both sides
• Adjustable in the closed position
• Adjustable closing speed
• To fit notch 4961E1 for single hinge 4961 and notch 4962E for double hinge 4962
• Supplied with spacers and stainless steel fixing screws
