M38
600lbs holding force; Indoor use
Documents, Certifications & Listings

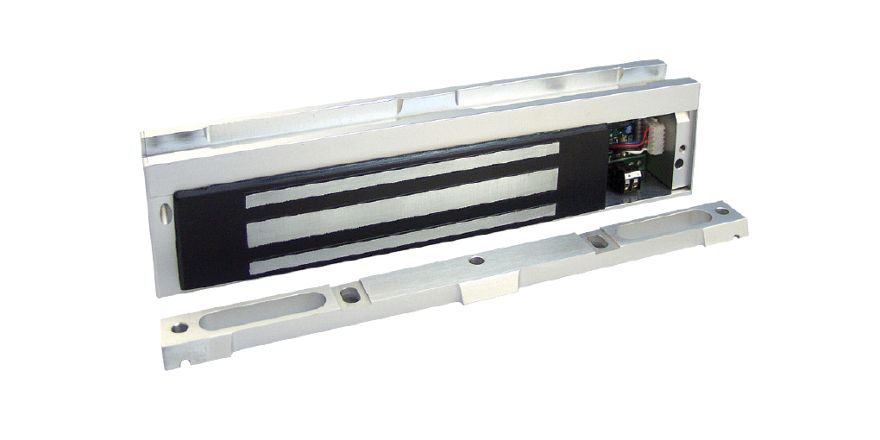

600 lbs. holding force Magnalock with automatic dual voltage. This model offers a built-in wire access chamber and bracket mount design for a unique and simplified method of installation. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with mounting bracket using minimal tools
- Internal wire access chamber
- Mounted using steel machine screws into blind finishing nuts
- Brushed aluminum finish
- All ferrous metal surfaces plated to MIL specification
- Automatic dual voltage - no field adjustment required
- Dress Covers available
- Lock options include Senstat, door position switch, LED indicator and anti-tamper switch
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 600 lbs. [272 kg]
- Current Draw and Voltage: 350mA at 12VDC; 170mA at 24VDC
- Operating Temperature: +32 to +110F [0 to +43C]
- Shipping Weight: 8 lbs.
Models
| Part # | Description |
| M38 | Magnalock® Model 38 |
| M38D | M38, DPS |
| M38DL | M38, DPS, LED |
| M38DLS | M38, DPS, LED, Senstat |
| M38DLST | M38, DPS, LED, Senstat, Tamper |
| M38DS | M38, DPS, Senstat |
| M38LS | M38, LED, Senstat |
NOTE: The M38 with strike requires minimum 2.25" of flat mounting space.
