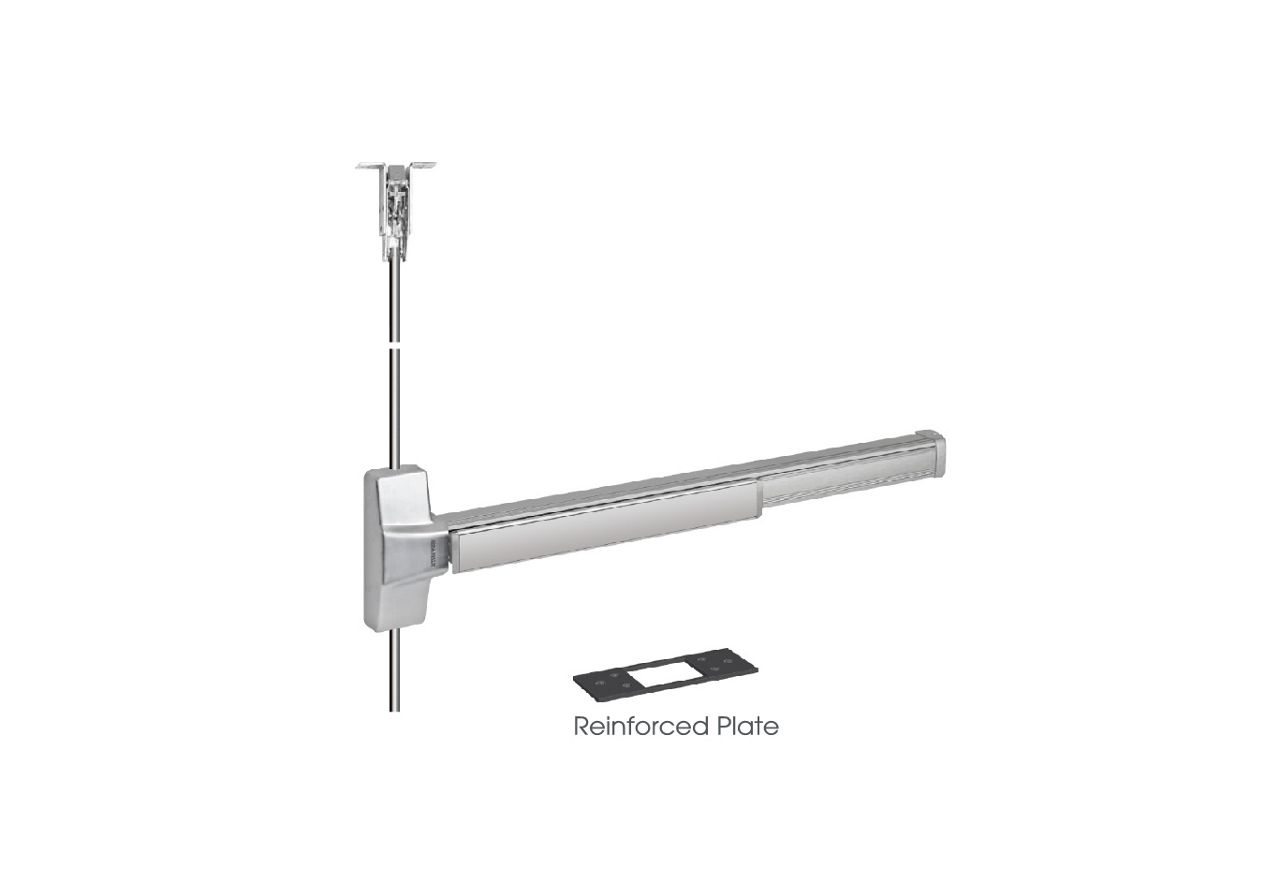

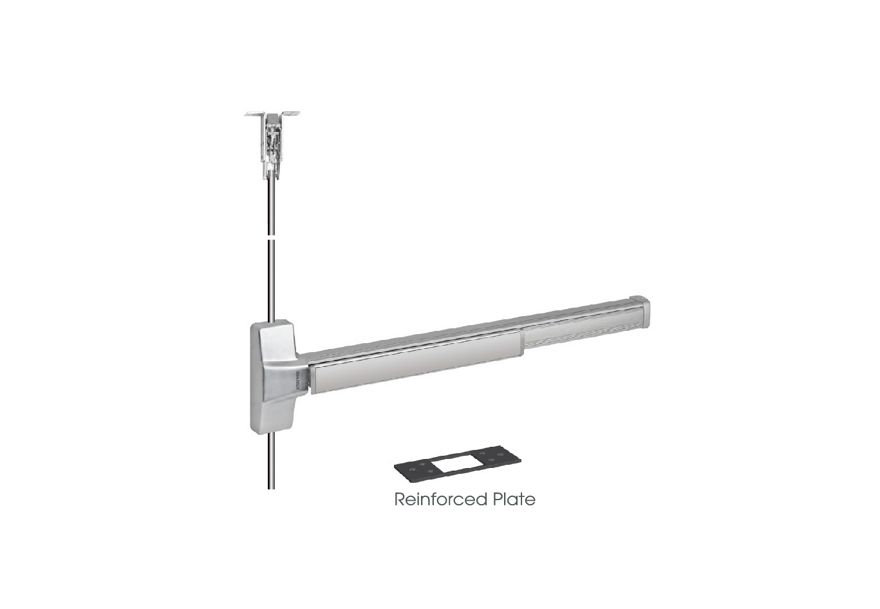

    XD 1C LBR - Less Bottom Rod Exit Device

    Description:

    XD 1C LBR devices are concealed vertical rod type devices with Less Bottom Rods finds its applications in doors to ease the passage of wheel chairs and stretchers.

    Characteristics:

    Panic LBR exit devices are used for all types of single and double doors. Fire LBR exit devices are used for UL listed fire labeled pairs of steel doors up to 8 x 8 (2438mm x 2438mm).


    1 of 3

    Material  Stainless steel and steel components on aluminum chassis
    Strikes Steel
    Vertical rods  Aluminum
    Handing This device ships RHR and is quick field-reversible

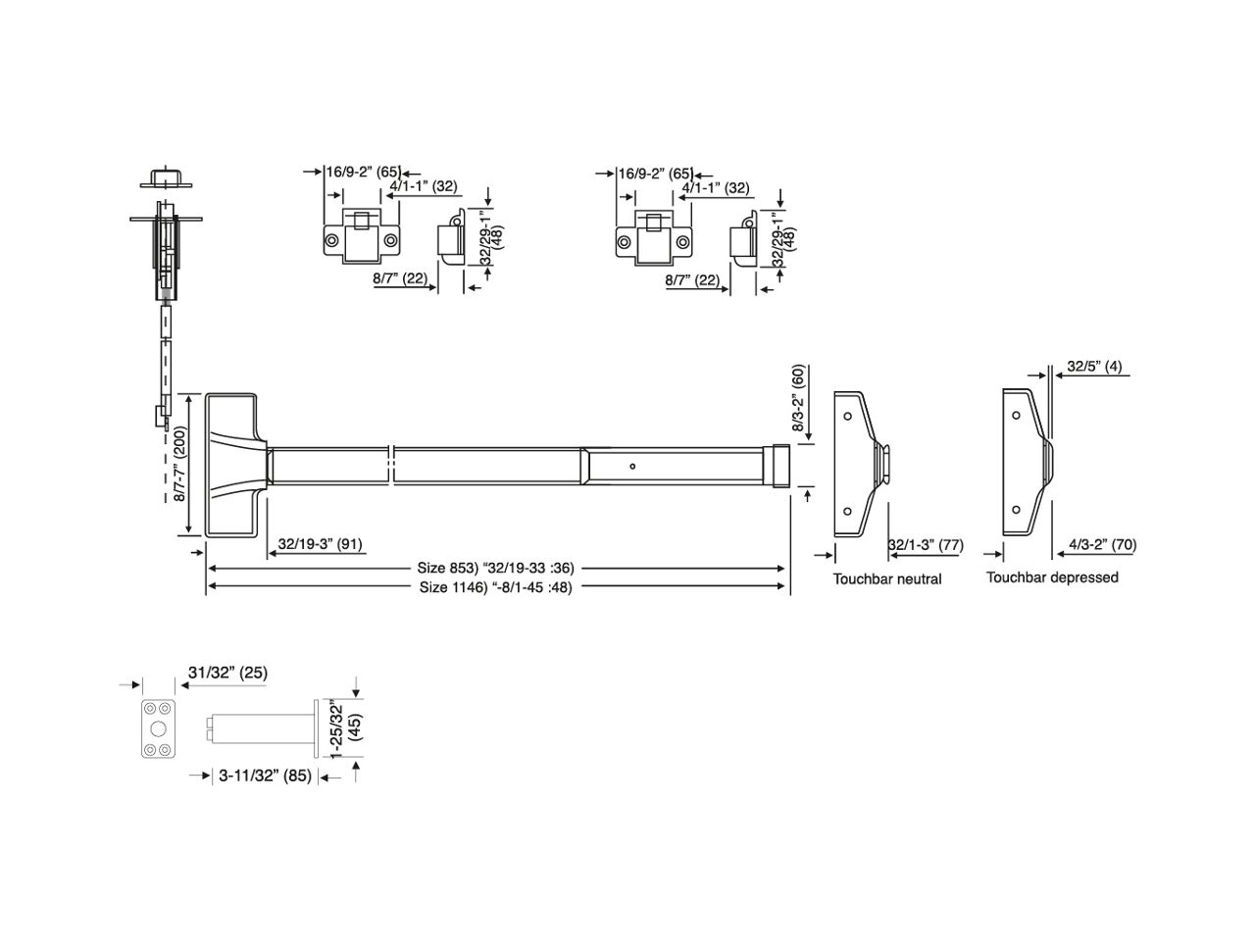

    Device Lengths

    Short - 36”: 33-15/32” (850mm)

    Long - 48”: 44-3/4” (1137mm)

    Door Widths

    36”- For 29” to 36” (736mm to 914mm) door size

    48” - For 33” to 48” (838mm to 1219mm) door size

    Minimum Stile Width 4-1/4” (107mm) Top latch - 5/8” (16mm) throw, can be deadlocked automatically

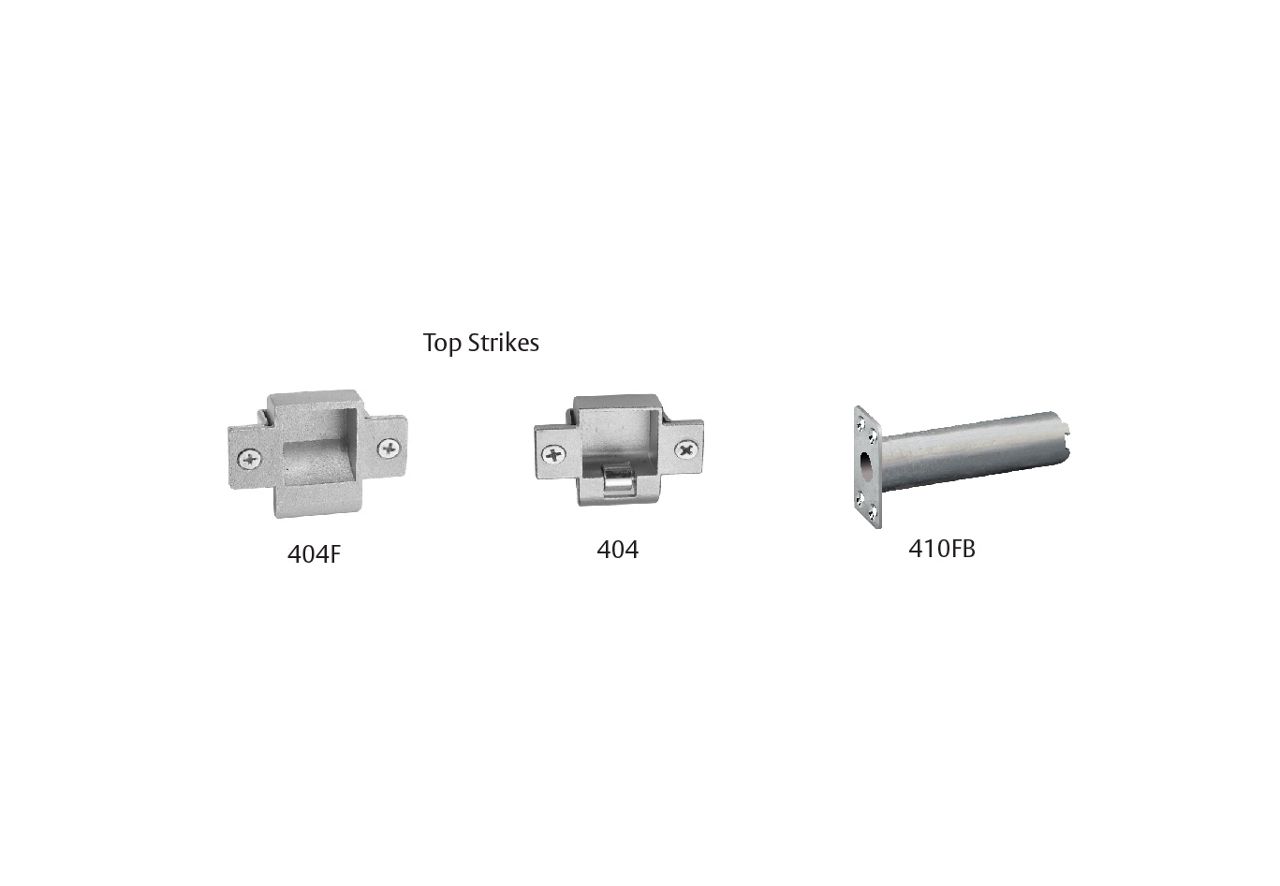

    Latch Bolt Strikes

    Top - 403 (panic), 403F (fire).

    Dogging Kit

    Panic device - Hex key dogging (RD) standard

    Fire device - No mechanical dogging (ND)

    Dogging Options

    Cylinder Dogging (CD)

    Less Dogging (LD)

    Mounting Fasteners

    Panic device - Machine screws furnished standard SNB furnished for top & bottom latches

    Fire device - Six nuts and bolts (SNB) supplied standard SNB are required to use for wood doors, order SNB separately

    Mounting Heigh

    Device centerline from finished floor is 40"(1016mm) standard

    Door Opening

    Height Standard door height is 7. (8’is available)

    Vertical Rods

    1/2” (13mm) diameter tubular with rod guides

    Projection

    Pushbar Neutral:3-1/16” (78mm)

    Pushbar Depressed: 2-19/32” (66mm)

     Finish

    603, 605, 612, 613, 625, 626, 630, 689

    Certification

    ANSI /BHMA: Tested and certified to the requirements of ANSI/BHMA A156.3 Exit Devices Grade 1

    UL Listed : Panic Exit Hardware, or 3-hour Fire Exit Hardware

    Note:

    These LBR devices had been re-tested or approved by two nationally recognized test laboratories. Fire-rated LBR device must use with a UL listed Fire Latch Bolt
