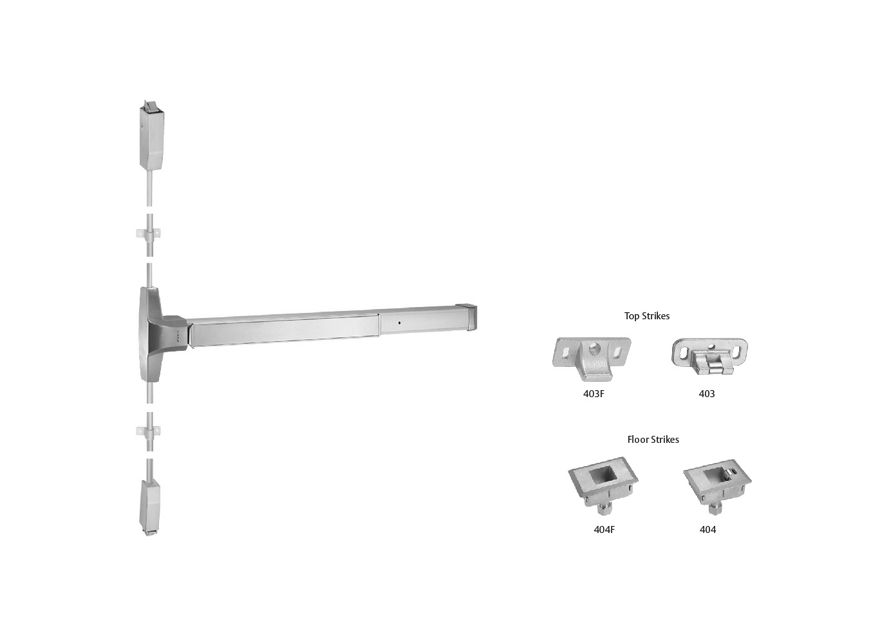

    XD 2V - Surface Vertical Rod Exit Device

    Characteristics:

    XD 2V Narrow design panic SVR exit devices are used for the aluminum frame full glass doors or narrow style aluminum doors applications. Narrow design Fire SVRexit devices are used for the aesthetics requirements of wide style pairs of metal or wood doors up to 8’ x 8’ (2438mm x 2438mm).


    1 of 2

    Material  Stainless steel and steel components on aluminum chassis
    Strikes Steel
    Vertical rods  Aluminum
    Handing This device ships RHR and is quick field-reversible
     Device Lengths

    Short - 36”: 33-15/32” (850mm)

    Long - 48”: 44-3/4” (1137mm)

    Door Widths

    36” - For 29” to 36” (736mm to 914mm) door size

    48” - For 33” to 48” (838mm to 1219mm) door size

    Minimum Stile Width 2-19/32” (66mm)
    Latch Bolt

    3/4” (19mm) throw, deadlocking design

    Dogging Kit

    Panic device - Hex key dogging (RD) standard

    Fire device - No mechanical dogging (ND)

    Dogging Options

    Cylinder Dogging (CD)

    Less Dogging (LD)

    Mounting Fasteners

    Panic device - Machine screws furnished standard SNB furnished for top & bottom latches

    Optional SNB are available for device, order SNB separately

    Fire device - Six nuts and bolts (SNB) supplied standard

    Mounting Heigh

    Device center line from finished floor is 40" (1016mm) standard

    Door Opening

    Height Standard door height is 7 (8’is available)

    Vertical Rods

    1/2” (13mm) diameter tubular with rod guides

    Top rod has two pieces to connect for accommodating 7’ or 8’ door

    Bottom rod is one piece, its length is 31-1/4” (794mm)

    Projection

    Pushbar Neutral: 3-1/16” (78mm)

    Pushbar Depressed: 2-19/32” (66mm)

     Finish

    603, 605, 612, 613, 625, 626, 630, 689

    Certification

    ANSI /BHMA: Tested and certified to the requirements of ANSI/BHMA A156.3 Exit Devices Grade 1

    UL Listed : Panic Exit Hardware, or 3-hour Fire Exit Hardware
