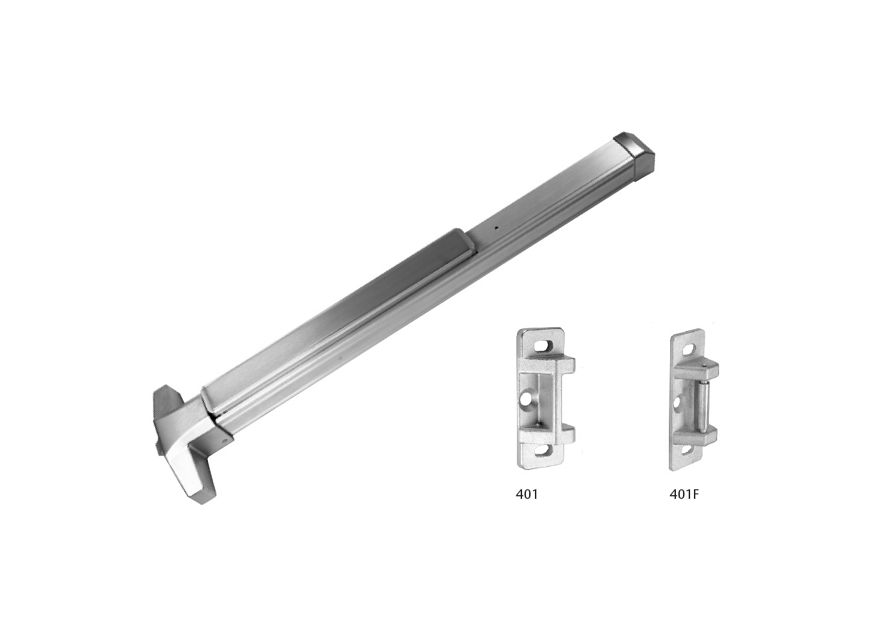

XD 2R - Rim Exit Device

Characteristics:

XD 2R Series have a full line of heavy-duty narrow stile Panic and Fire-Rated
Exit Hardware are designed for using on narrow stile doors in all public buildings, resort hotels, shopping stores, and all types of aluminum doors or aesthetic requirements

1 of 3

Material	Stainless steel and steel components on aluminum chassis
Strikes	Steel
Handing	Non-handed
Device Lengths	Short - 36” : 33-15/32” (850mm) Long - 48” : 44-3/4” (1137mm)
Door Width	36”- (736mm to 914mm) door size 48” - (838mm to 1219mm) door size
Minimum Stile Width	66mm
Latch Bolt	(19mm) throw, deadlocking design
Dogging Kit	Panic device - Hex key dogging (RD) standard Fire device - No mechanical dogging (ND)
Dogging Options	Cylinder Dogging (CD) Less Dogging (LD)
Mounting Fasteners	Panic device - Machine screws furnished standard Optional SNB are available for device, order SNB separately Fire device - Six nuts and bolts (SNB) supplied standard
Mounting Height	Device centerline from finished floor is (1016mm) standard
Projection	Pushbar Neutral:3-1/16” (78mm), Pushbar Depresesed: 2-19/32” (66mm)
Finish	603, 605, 612, 613, 625, 626, 630, 689
Certifications	ANSI/BHMA: Tested and certified to the requirements of ANSI/BHMA A 156.3 Exit Devices Grade 1 UL Listed: Panic Exit Hardware or 3 Hour fire exit hardware
