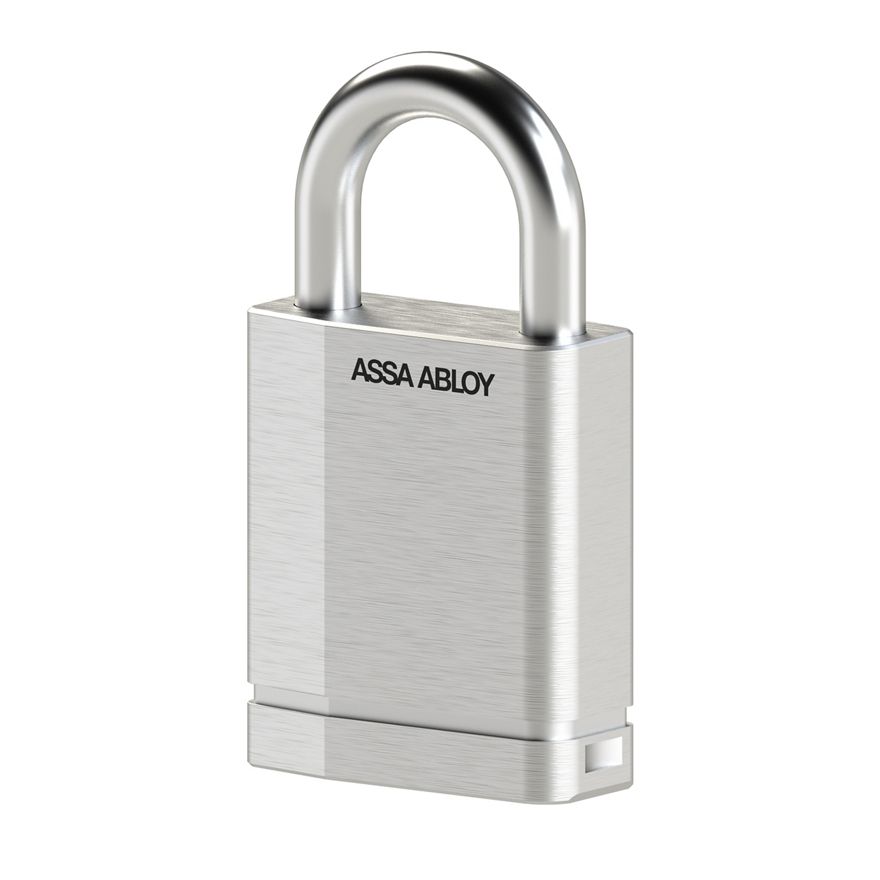

CYS10 Padlock

A trusted, robust padlock for multiple applications, inside or outdoors. Suitable for sheds, gates, fences, lockers, storage boxes, bike chains, and more.

When in the unlocked position, the CYS10 Padlock retains the key to prevent your possessions being left at risk.

The optional dust cover increases corrosion resistance to 240 hours.


Applications:

  • Indoor and outdoor locking points
  • Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)



Optional functionality:

  • Dust cover (240 hours salt spray test conformance)
  • 25 mm Stainless Steel shackle
  • Non key retaining

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

  • Datasheet
  • Technical Drawings
FeatureDetail
Security EN 12320:2012 tested ‒ Grade 2
Attack resistanceAnti-pick | Anti-bump (only for KA and KD)
Number of keysMKS and KA: according to order | KD: 3
Max. number of effective key differs144,729
Max. number of MKS profiles63
Number of pins6
Raw materialBody: Brass | Shackle: Stainless Steel
FinishSatin Nickel
Body dimensionsWidth: 48 mm | Length: 56 mm | Thickness: 20 mm
Shackle diameter8 mm
Shackle clearance25 mm | 50 mm | 75 mm
Weight 450 g (25 mm shackle clearance)
