ASSA ABLOY
  • Keys and Cylinders
  • ASSA ABLOY ANSI range

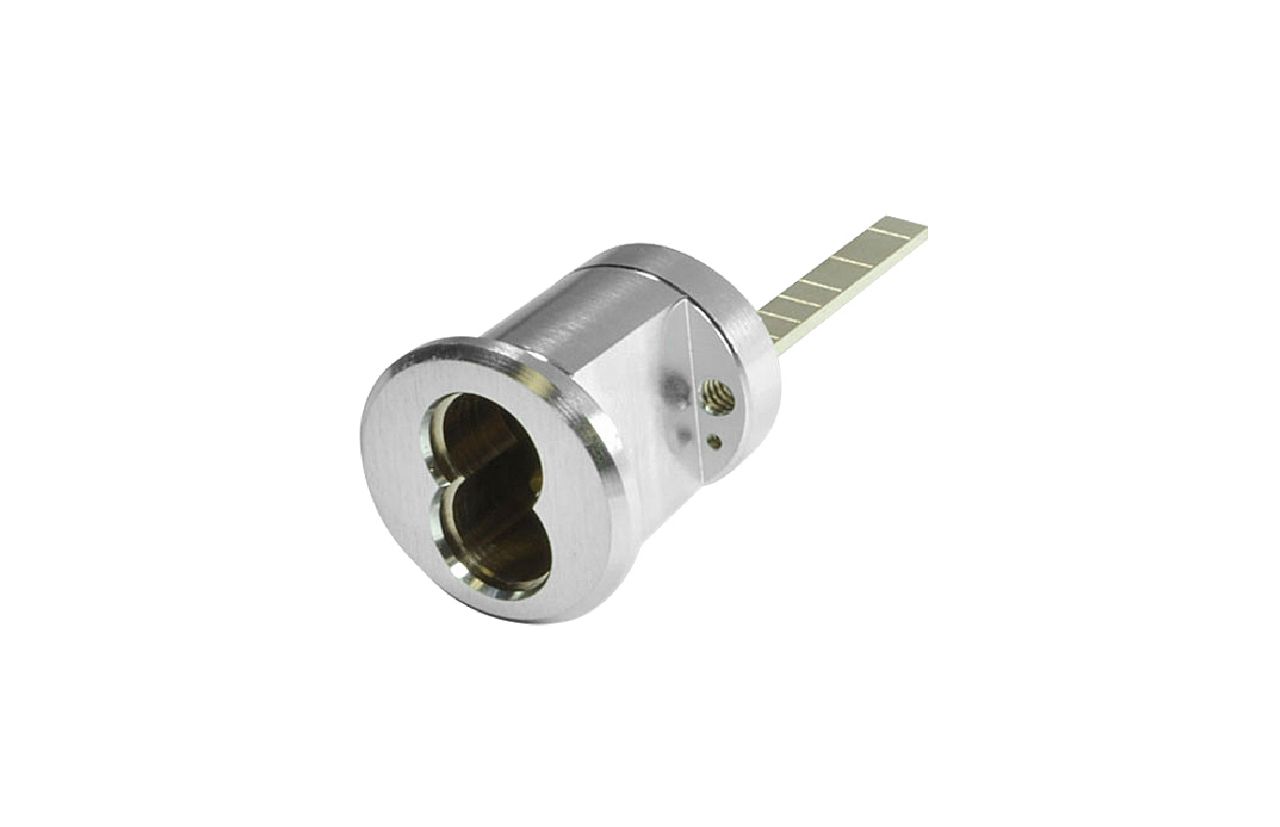

CY40 Cylinders and Keying

Description:

CY40 offers a range of rim type SFIC housings instandard American format.

Rim Small Format Interchangeable Core Housing.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Areas of Application Exit devices and other hardware items that are operated by rim type cylinders
Material  Solid Brass
Keying Factory master keying or 0-bitted/uncombinated for end user keying
Thread
32 per inch
Standard Length 29 mm (1 -1/8”)
Compatability Compatible with cores from Arrow, Best, Falcon and KSP. Accommodates 6 and 7pin cores (SFIC)
Cams
Please specify the model of the securing device in ordering information to supply suitable cam. Various options of cams available.
Certifications ANSI/BHMA: Meets the requirements of ANSI A156.5-2001
