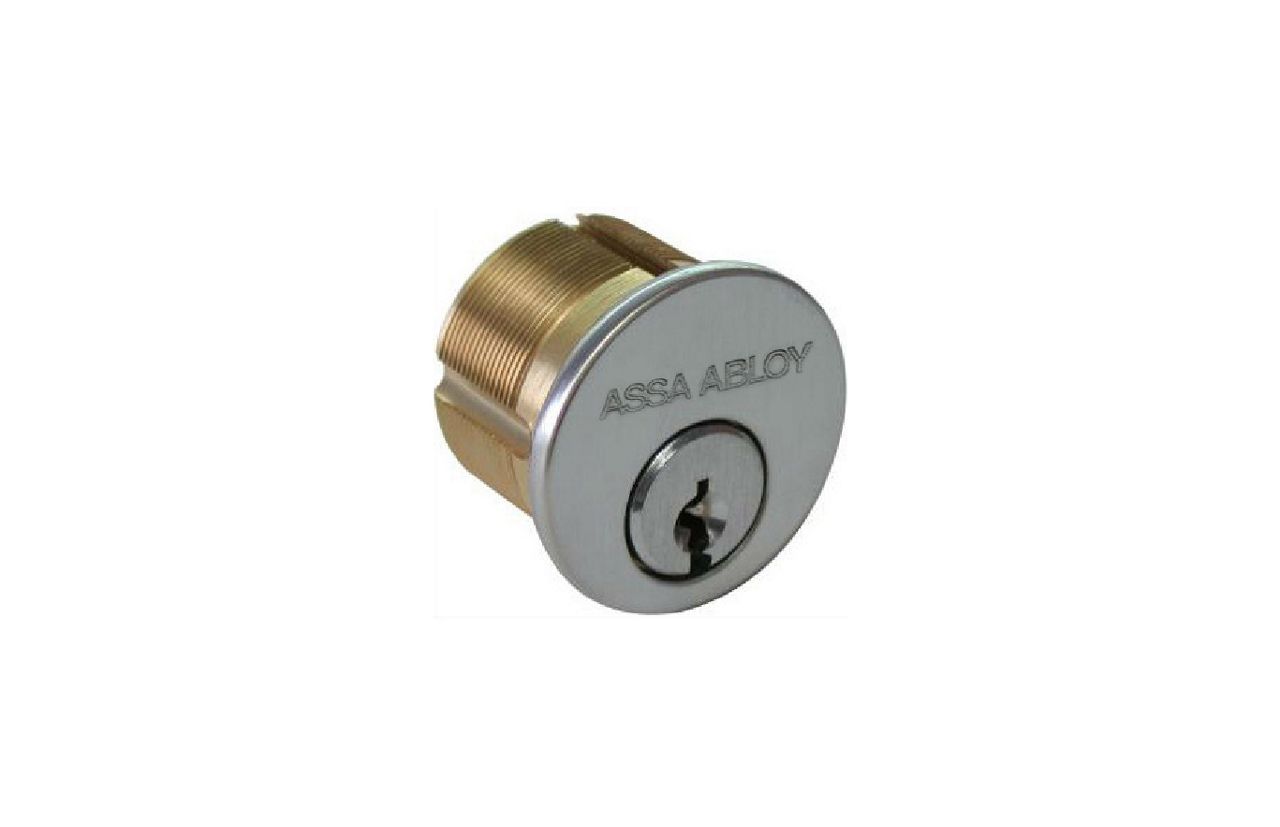

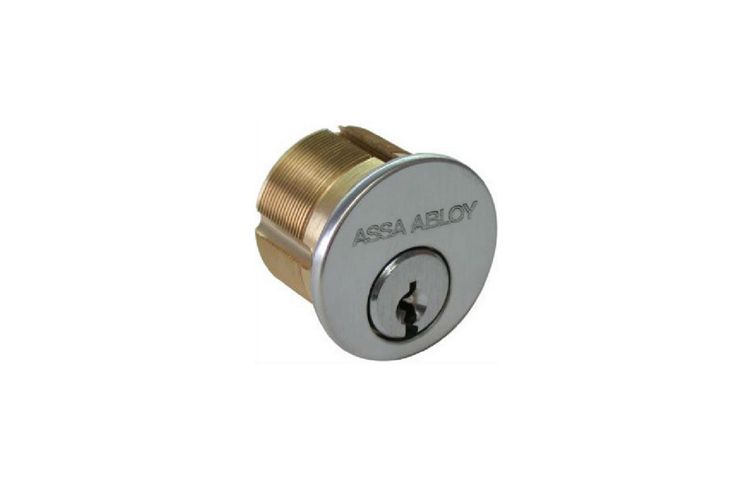

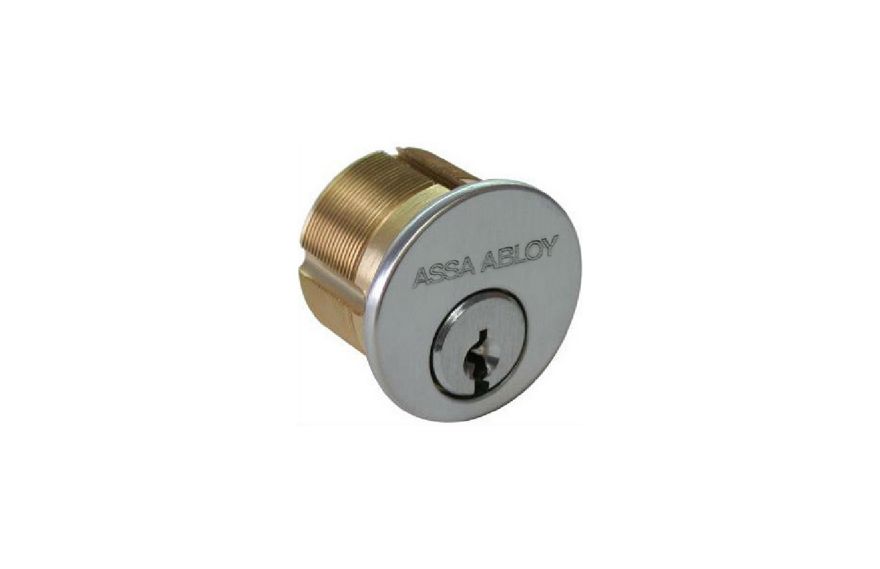

Mortise cylinder with standard American format suitable for multiple level master keying.
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions
of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Areas of Application
Mortise locks, exit devices, key switches and other hardware items that are operated by mortise cylinders
Material
Brass or Bronze
Standard Keyway
SC Keyway
Keying
Factory master keying or 0-bitted / uncombinated for end user keying
Optional Keyways
Other keyways available upon request

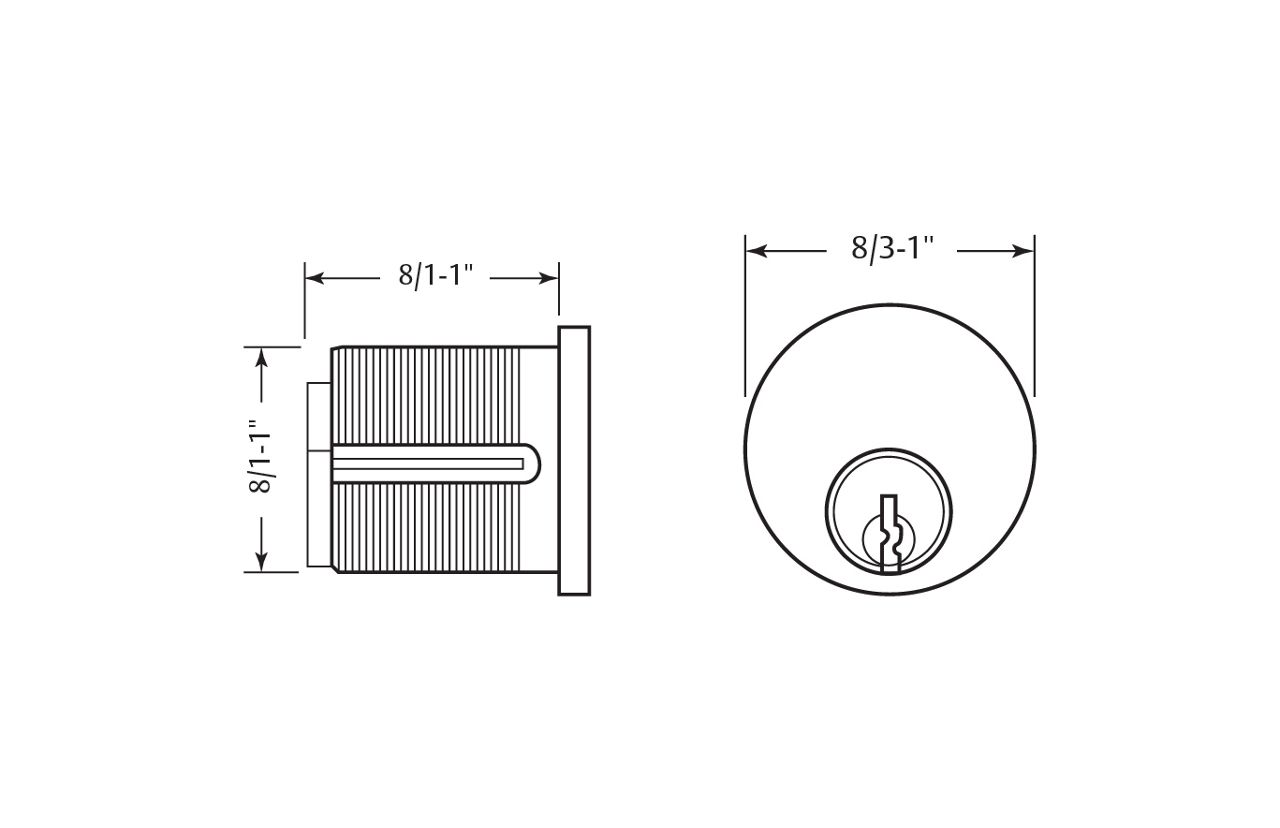

Standard Length
29 mm (1-1/8”)
Cams
Please specify the model of the securing device in ordering information to supply suitable cam. Various options of cams available.
Number of Pins
6 Pins
Certifications
ANSI/BHMA: Meets the requirements of ANSI A156.5-2001
Note: For use in other manufacturer securing devices,please mention the manufacturers cam number with manufacturer name prefixed for cam selection in ordering information
