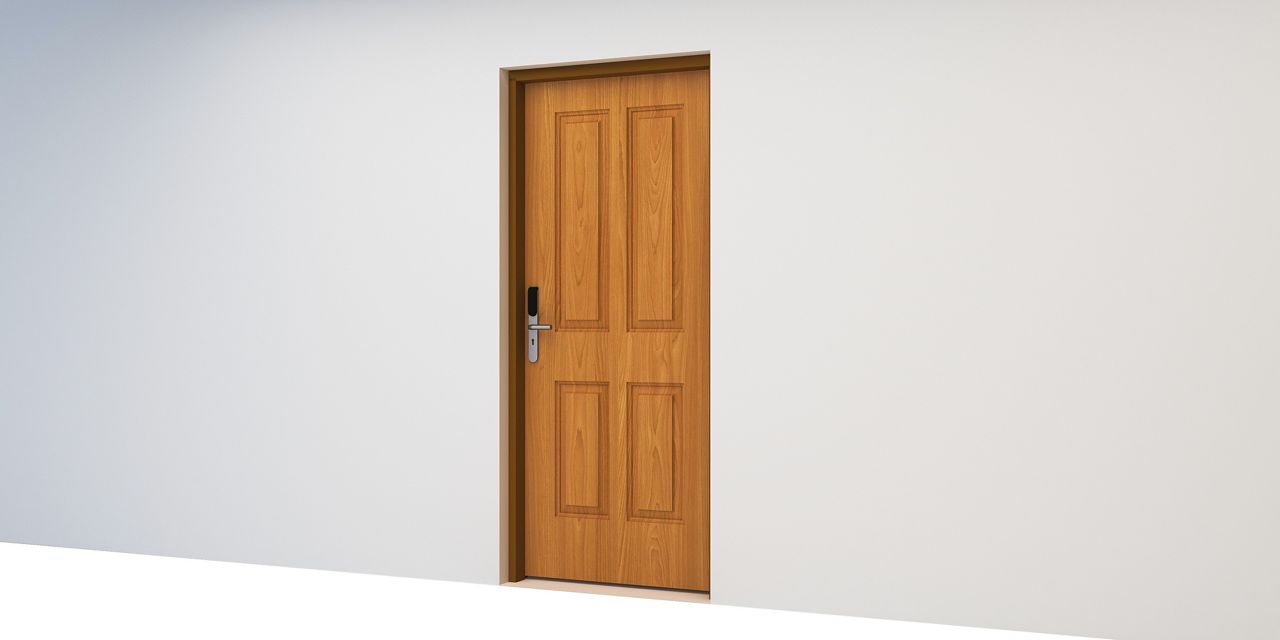

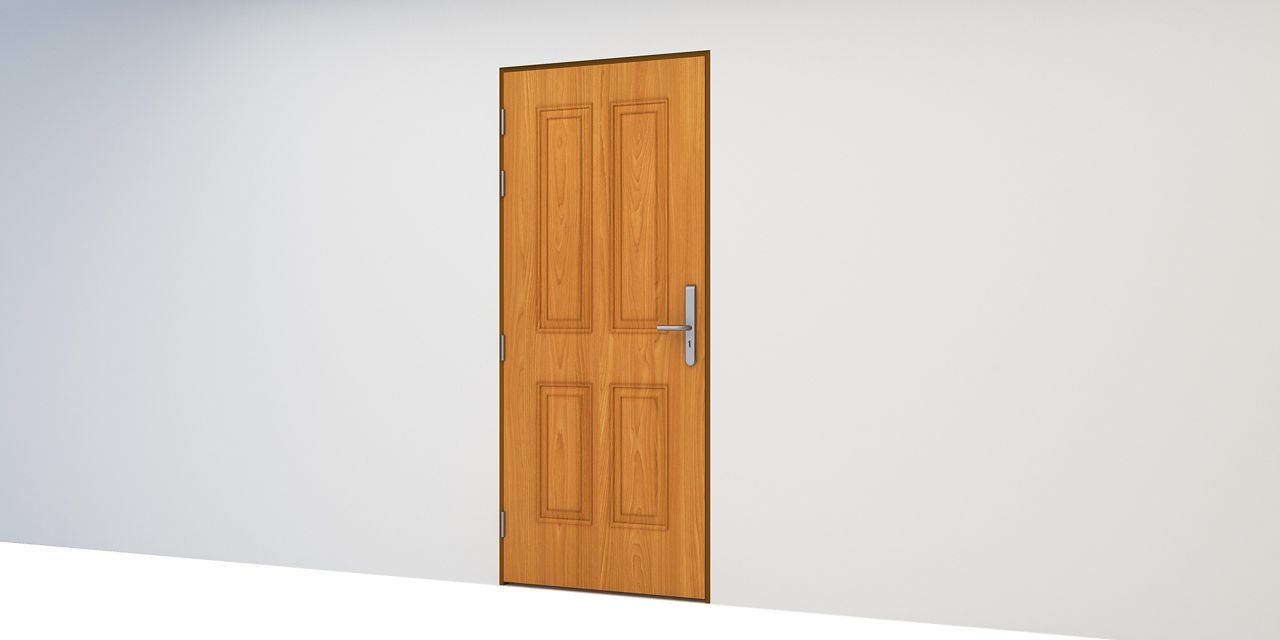

Wooden Doorset Office Entrance-Single

Wooden Doorset Office Entrance-Single

ASSA ABLOY Opening Solutions Middle East solution for an office admin door with fire rated single leaf wooden door. Equipped with Aperio® wirelessaccess control and Cam-Motion®concealed doorcloser.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Characteristics

  • Full range of sizes
  • Noise insulation properties 36dB
  • Door Leaf is of high density and medium density mineral board with MDF & Hardwood Lipping
  • Door frames are made of solid wood
  • Door leaf and frame in PU paint

Performance

  • BS approval
  • Resistance to sound transmission and acts like a sound barrier
  • Acoustic rating available up to 36dB
  • Usage: Internal

Safety

  • Fire rating up to BS 60 min
  • Finger guard option

Sustainability

  • Complies to the Green Building Requirement
  • FSC sourced wood / Wood Composite materials
  • Manufactured under ISO 9001:2015 certification

Hardware Set:

  • Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
  • Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
  • Aperio® Access control Lever handle with Escutcheon, IP 5, CE Marked. (EPD-ASA-20150279-IAB1-EN)
  • MKS Knob Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
  • Concealed door closer Cam-Motion, Standard: BS EN 1154. CE Marked.
  • Floor mounted door stop.
  • Self-adhesive seal
  • Intumescent seal.

Typical applications: Commercial buildings, hospitals, school, hotels.



Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1.

  • 10.Datasheet_Wooden_Doorset_Office_Entrance-Single(PDF, 176 KB)
  • 10.Doorset_Office_Admin_Room_ASSA_ABLOY_Hardware_2D_Light(RFA, 756 KB)
  • 10.Doorset_Office_Admin_Room_ASSA_ABLOY_Hardware_3D(RFA, 1 MB)
