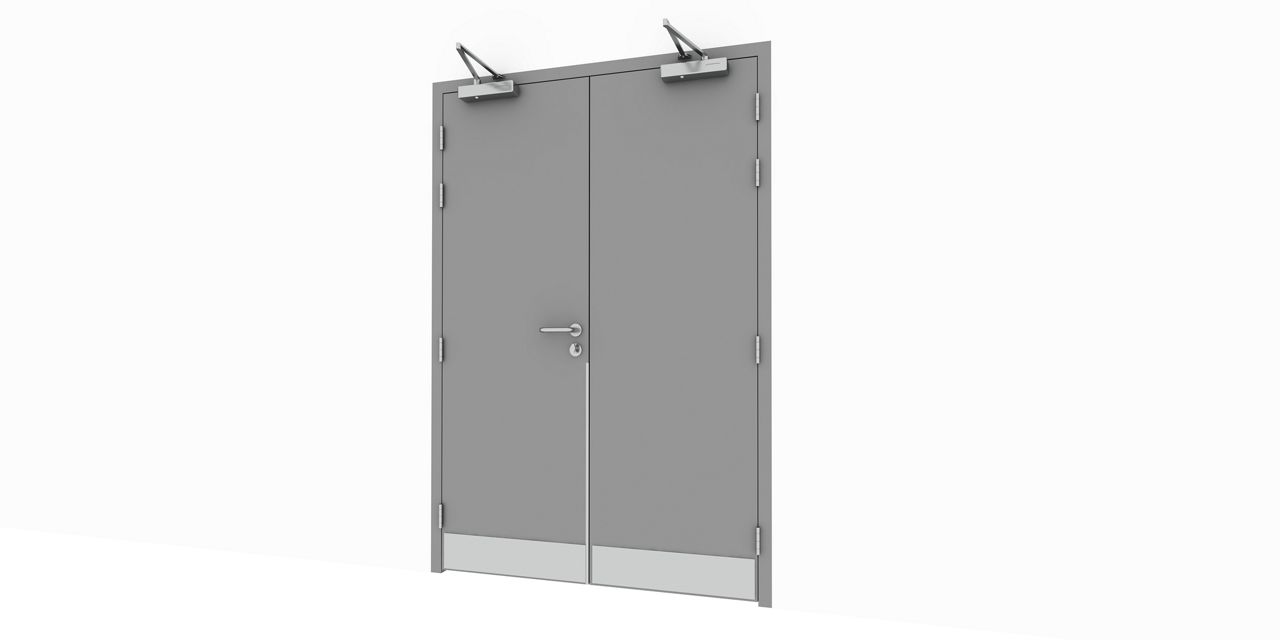

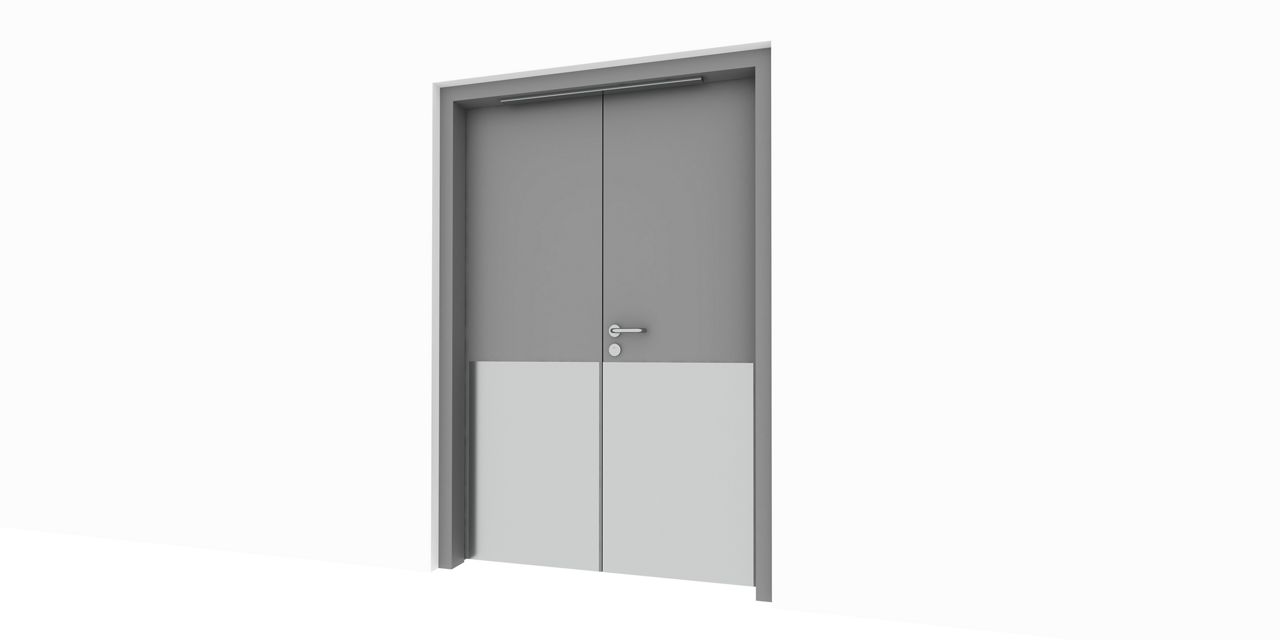

Steel Doorset Garbage Room – Double

Characteristics

• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Door powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down

Performance

• Certifier approval
• Increased finish performance for corrosion
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool)

Safety

• Fire rating up to FD120

Sustainability

• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwoo
• Manufactured under ISO 9001:2015 certification
• Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
• Lever Handle, standard: BS EN1906 Grade 3.
• MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
• Auto Flush bolt
• Dust proof strike
• Door coordinator
• Armour Plate
• Mop Plate
• Edge Guard.
• Door stop, floor mounted
• Gasketing

Typical applications: Residential, commercial buildings, hospitals and Other

Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN1906, BS EN 1303, BS EN 1158.
