Single Steel Doorset HV Room - Single

Single Steel Doorset HV Room - Single

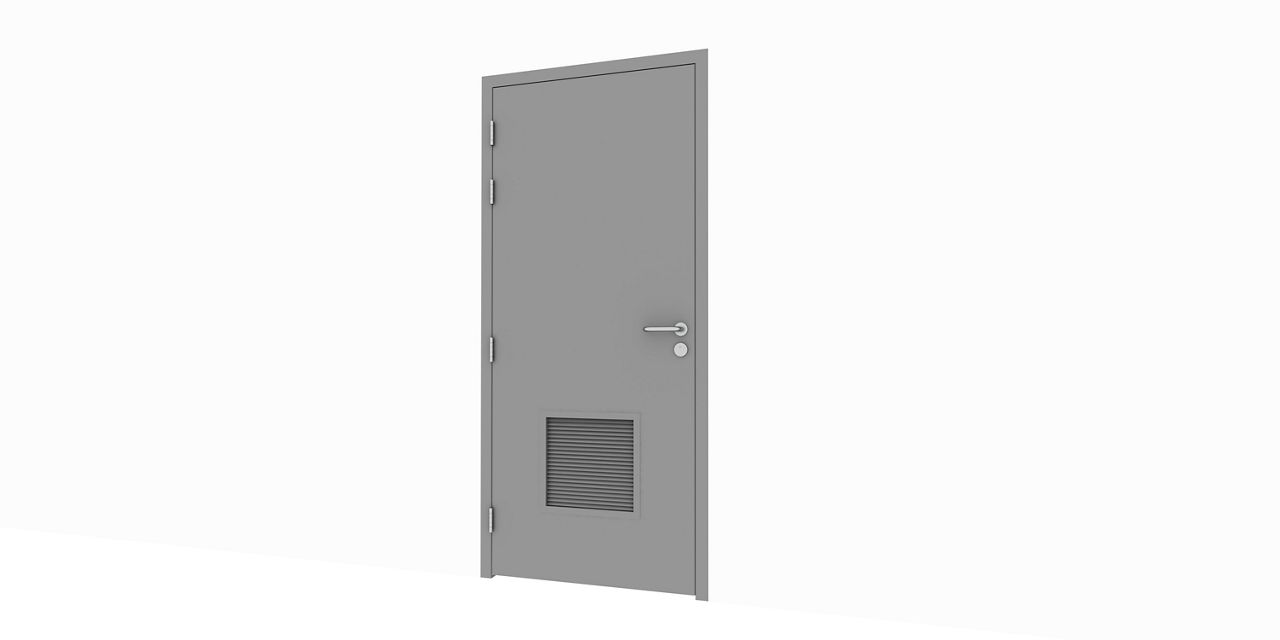

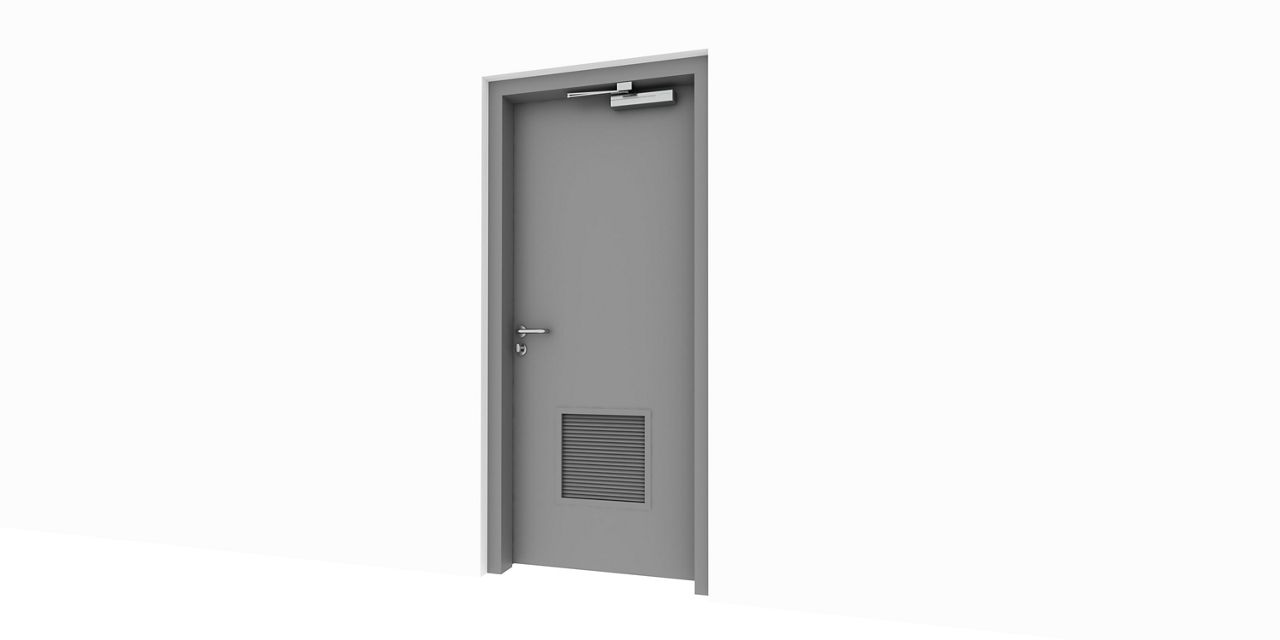

ASSA ABLOY Security Solutions Middle East doorset for a High voltage room with fire rated single leaf steel door. Equipped with mortice sash lock, lever handle, master keyed cylinder and rack and pinion door closer




Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Characteristics

  • Full range of sizes
  • Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
  • Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
  • Door Set powder-coated in any colour from the Standard Range RAL palette
  • Door Frame Corner construction: Welded or Knock down

Performance

  • Increased finish performance for corrosion
  • Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
  • Usage: Internal (Honeycomb/Rockwool); External (Rockwool)

Safety

  • Fire rating up to FD180
  • Protection plates, Armor plates, options available arerequired.

Sustainability

  • Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
  • Manufactured under ISO 9001:2008 certification
  • Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set:

  • Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked
  • Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
  • Lever Handle, standard: BS EN1906 Grade 3.
  • MKS Single Cylinder, Standard: BS EN 1303:2015
  • BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1- EN)
  • Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
  • Floor mounted doorstop.
  • Self-adhesive seal.

Typical applications:



  • Back of house areas of residential, commercial buildings, hospitals, schools, hotels, and others.
  • Residential, commercial buildings, hospitals and Other



Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN1906, BS EN 1303.

  • Microsoft Word - 11-Datasheet_Steel Doorset HV Room Door - Single(PDF, 1 MB)
  • 11.Doorset_HV_Room_ASSA_ABLOY_Hardware_2D_Light(RFA, 696 KB)
  • 11.Doorset_HV_Room_ASSA_ABLOY_Hardware_3D(RFA, 1 MB)
