AEH - 04 Series
Model No : AEH-04A, AEH-04B, AEH-04C, AEH-04D, AEH-04E

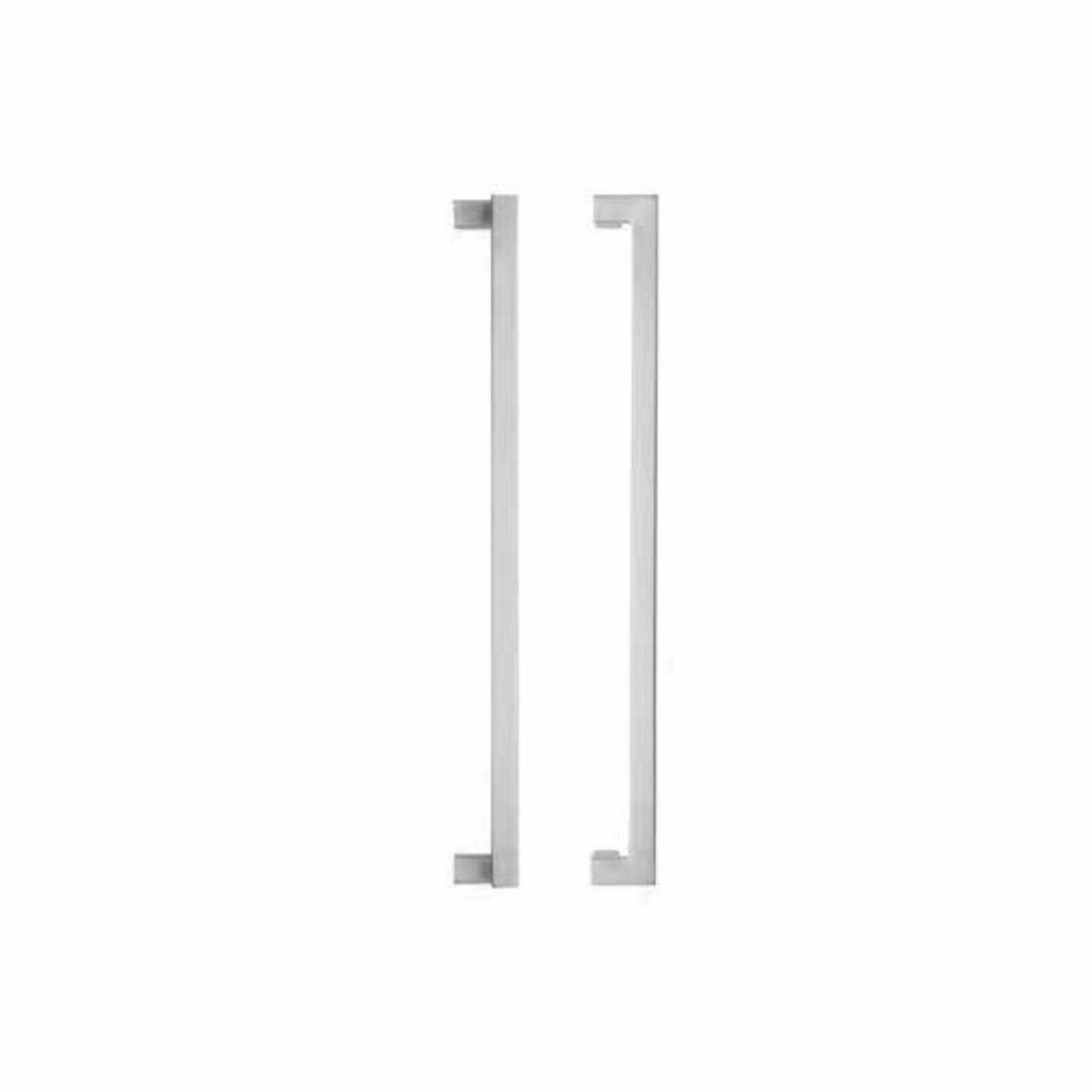

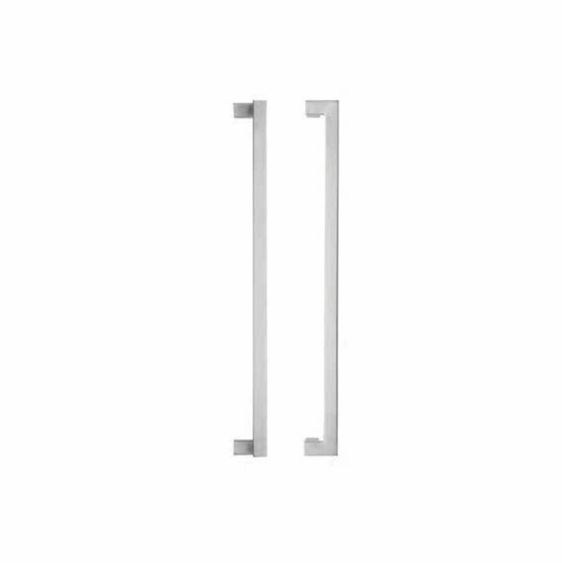

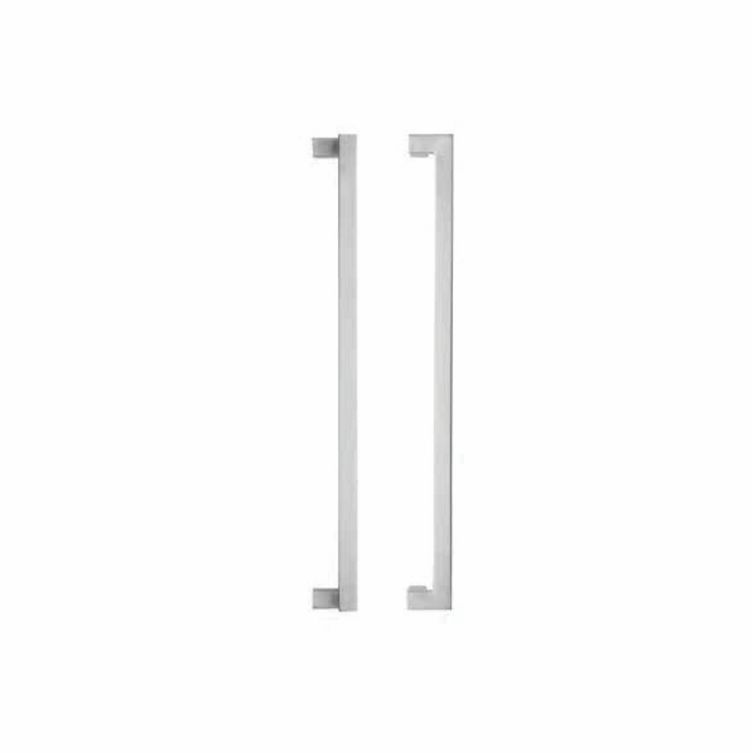

Description: ASSA ABLOY H - Type Square offset Pull Handle Back-to-back mount
Door Thickness : 12mm Glass, 38-50mm, Aluminium and Timber
Finish : Satin Stainless Steel - US32D (Standard) , Polished Stainless Steel - US32 (Option) , Black Matt

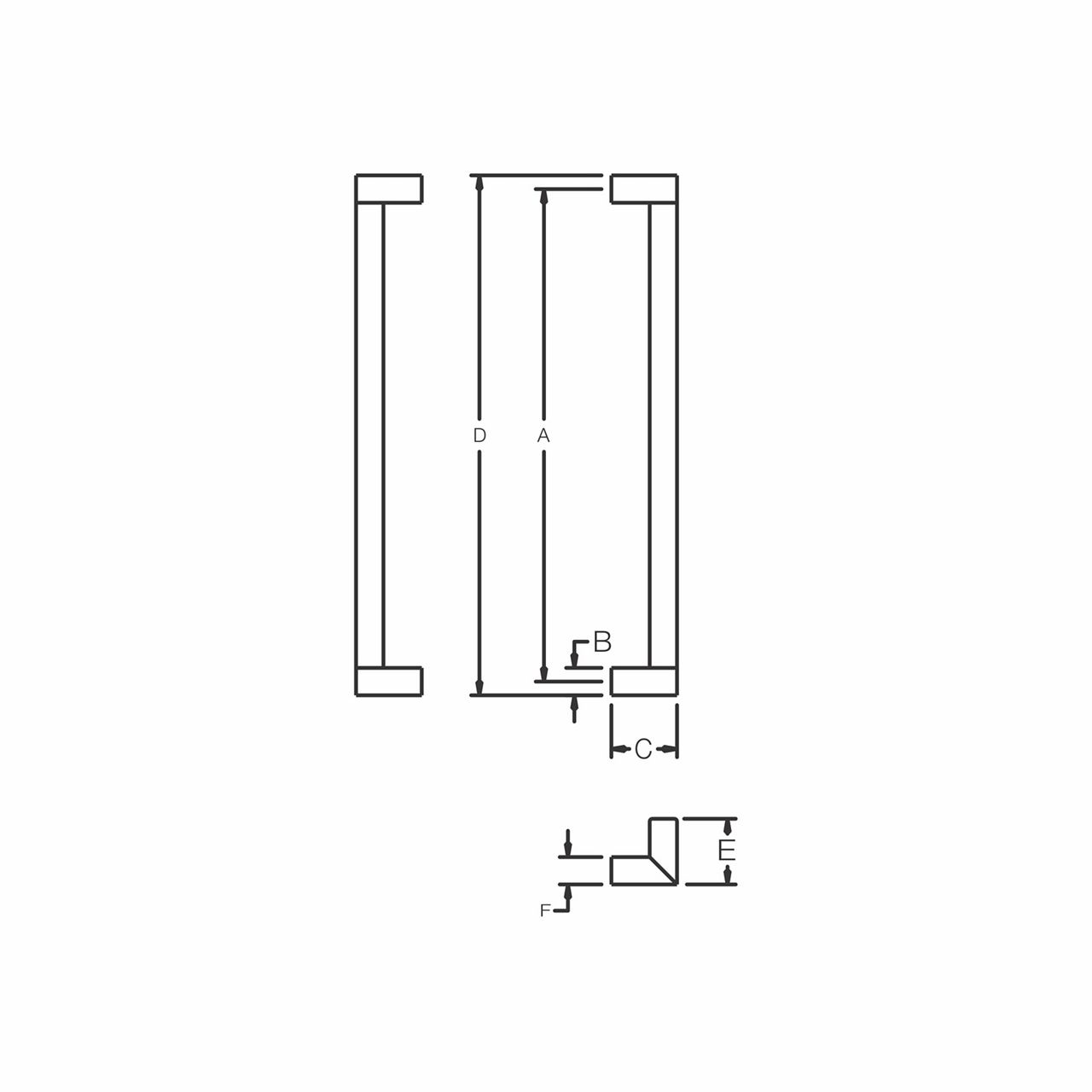

| Ordering No | A | B | C | D | E | F |
| AEH - 04A | 450mm | 25mm | 60mm | 475mm | 60mm | 25mm |
| AEH - 04B | 600mm | 25mm | 60mm | 625mm | 60mm | 25mm |
| AEH - 04C | 900mm | 25mm | 60mm | 925mm | 60mm | 25mm |
| AEH - 04D | 1200mm | 25mm | 60mm | 1225mm | 60mm | 25mm |
| AEH - 04E | 1500mm | 25mm | 60mm | 1525mm | 60mm | 25mm |
