AEH - 02 Series
Model No : AEH-02A-S, AEH-02B, AEH-02C, AEH-02D, AEH-02E

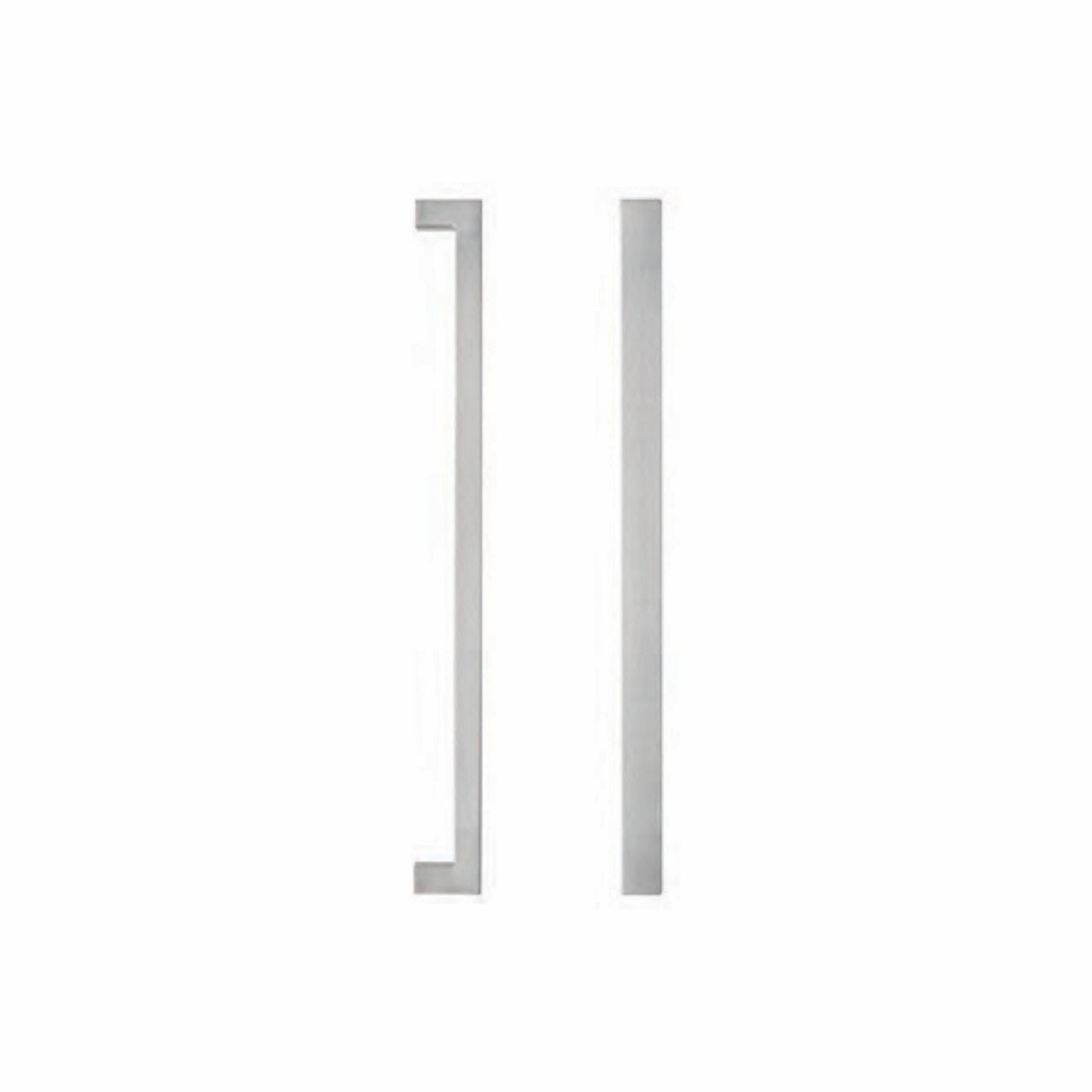

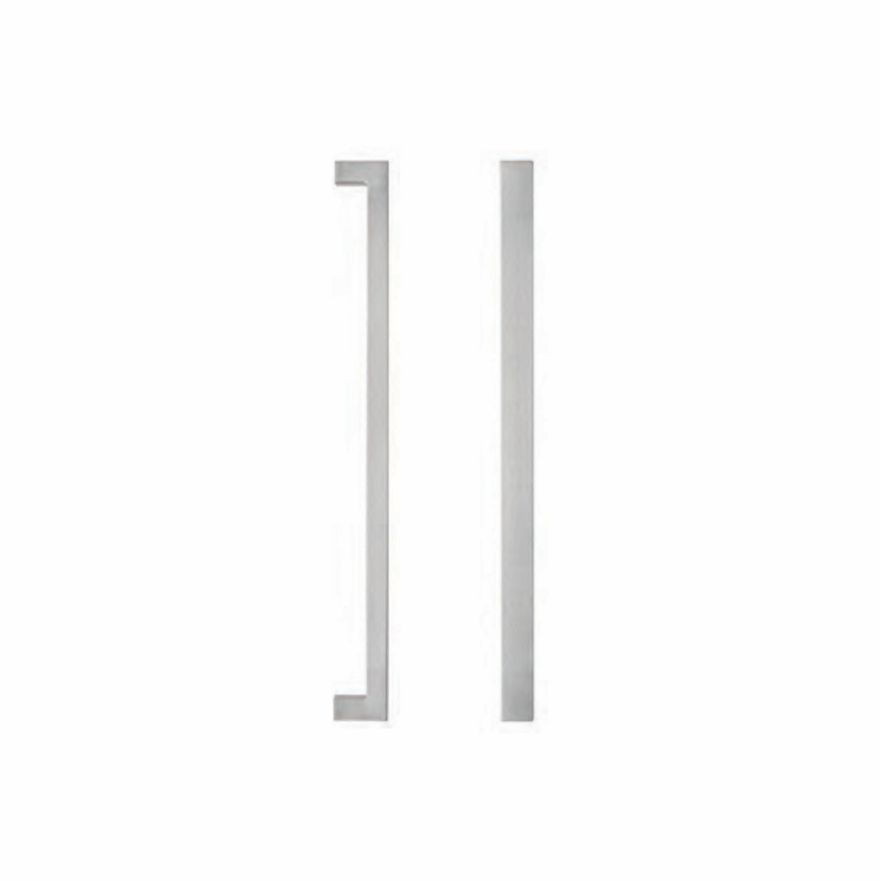

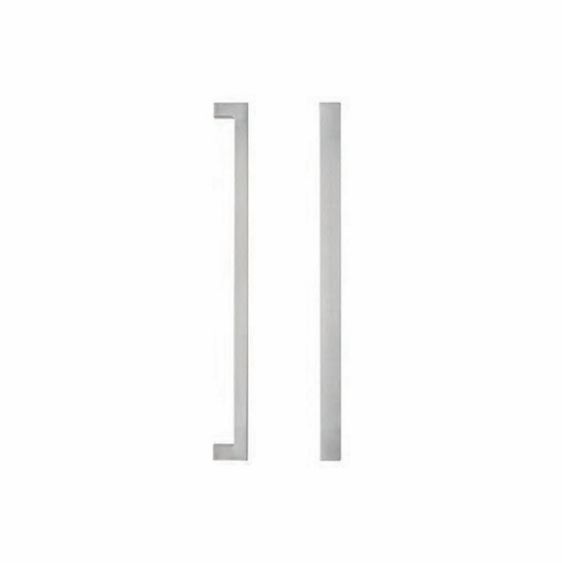

Description: ASSA ABLOY H - Type Square Pull Handle Back-to-back mount
Door Thickness : 12mm Glass, 38-50mm, Aluminium and Timber
Finish: Satin Stainless Steel - US32D (Standard) , Polished Stainless Steel - US32 (Option), Black Matt

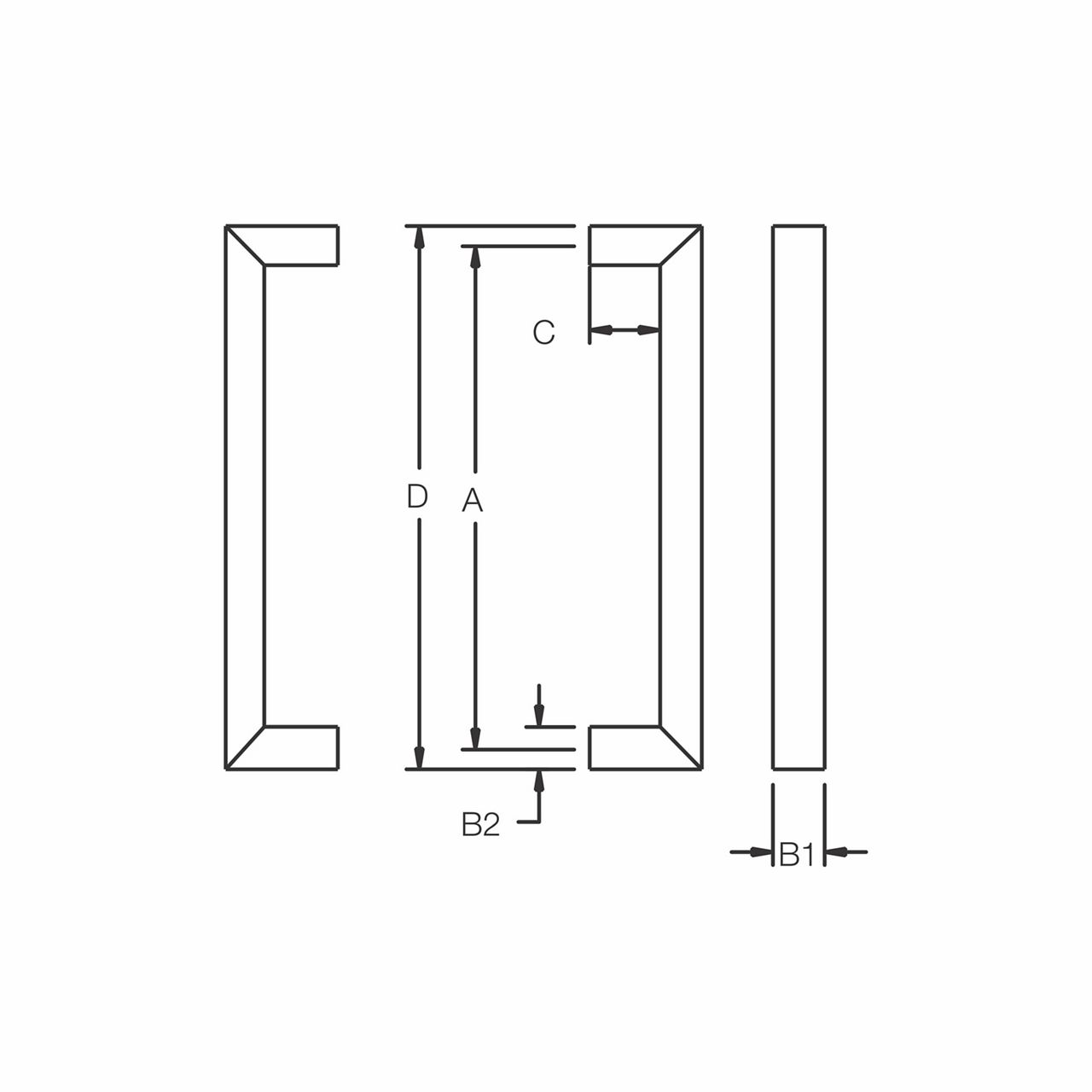

| Ordering no. | A | B1 | B2 | C | D |
| AEH - 02A-S* | 450mm | 40mm | 20mm | 60mm | 475mm |
| AEH - 02B* | 600mm | 40mm | 20mm | 60mm | 625mm |
| AEH - 02C | 900mm | 40mm | 20mm | 60mm | 475mm |
| AEH - 02D | 1200mm | 40mm | 20mm | 60mm | 1225mm |
| AEH - 02E | 1500mm | 40mm | 20mm | 60mm | 1525mm |
