AEH - 01 Series
Model No : AEH-01, AEH-01A, AEH-01B, AEH-01C, AEH-01D, AEH-01E

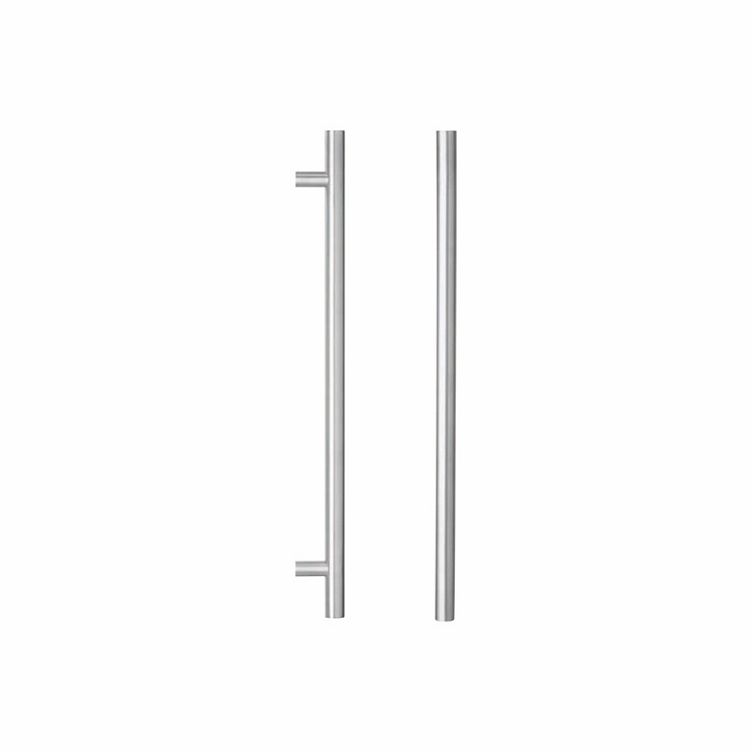

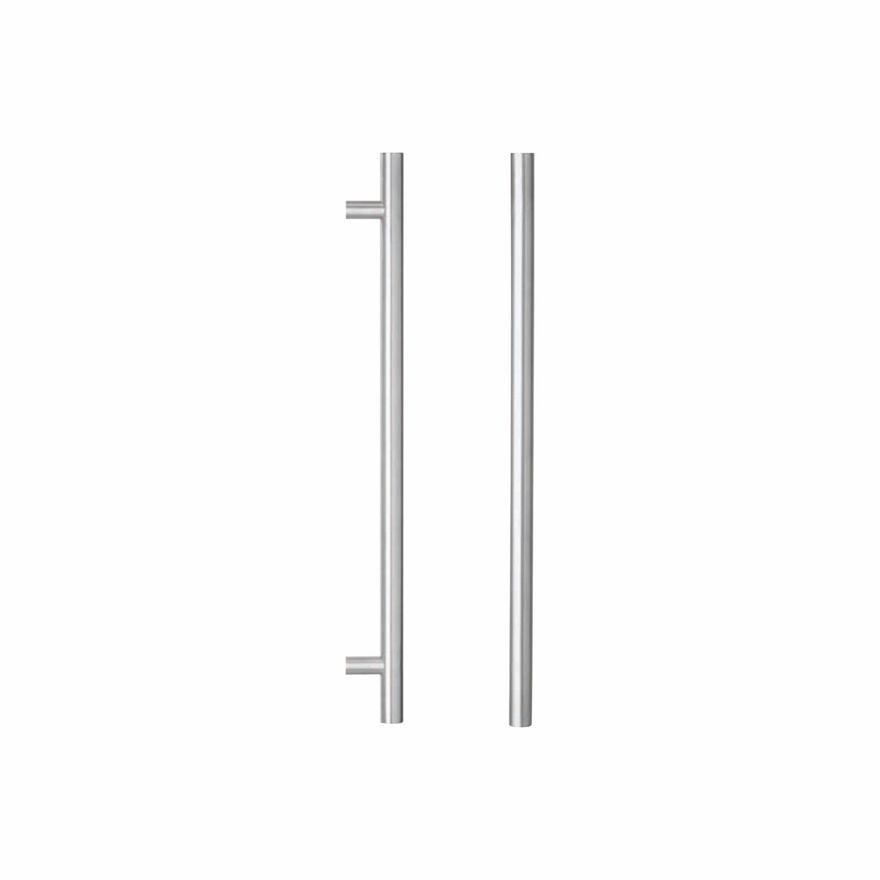

Description: ASSA ABLOY H - Type tubular Pull Handle Back-to-back mount
Door Thickness : 12mm Glass, 38-50mm, Aluminium and Timber
Finish:Satin Stainless Steel - US32D (Standard) ,Polished Stainless Steel - US32 (Option) ,Black Matt

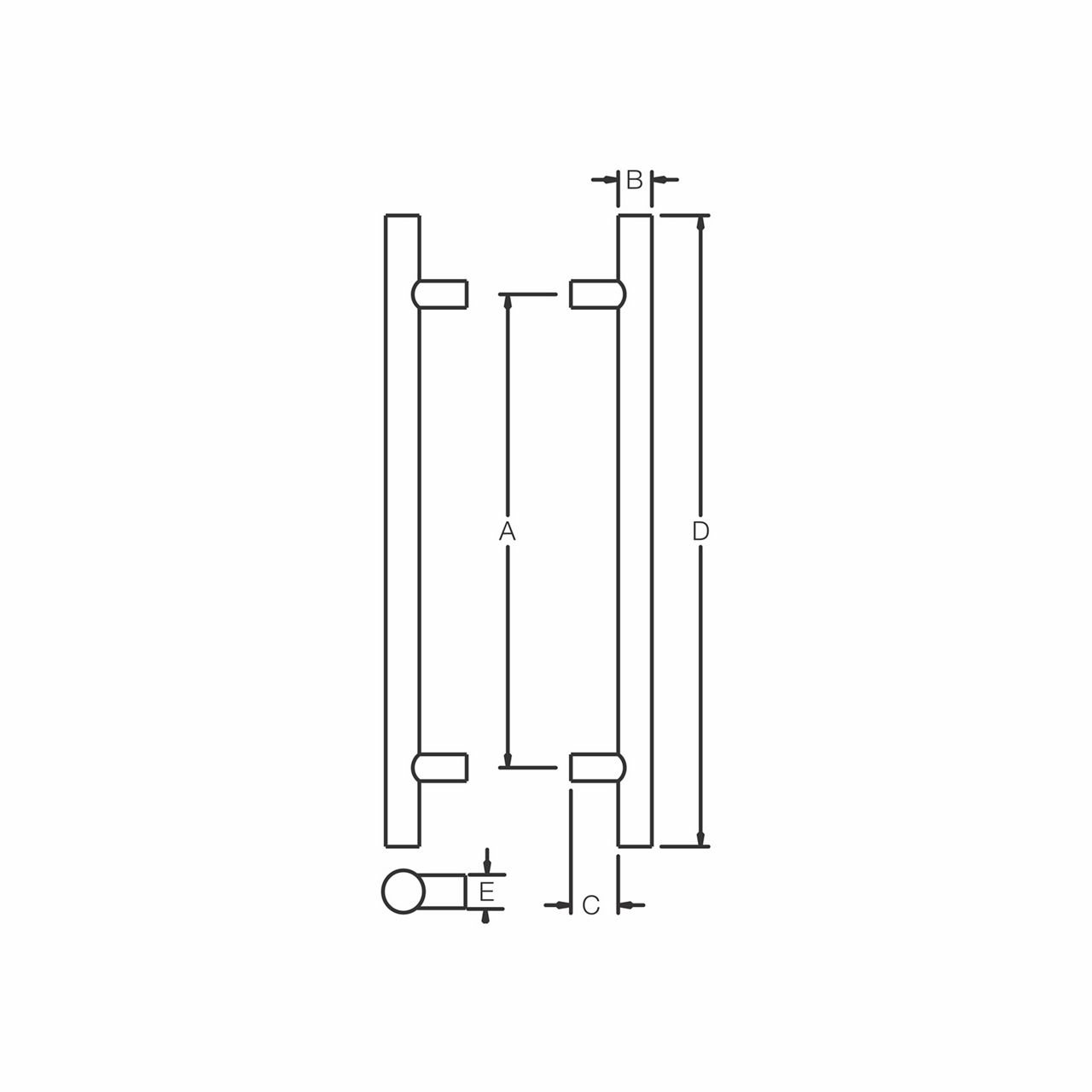

| Ordering no. | A | B | C | D | E |
| AEH - 01 | 350mm | 25mm | 45mm | 450mm | 25mm |
| AEH - 01A* | 450mm | 32mm | 45mm | 600mm | 25mm |
| AEH - 01B* | 600mm | 32mm | 45mm | 750mm | 25mm |
| AEH - 01C | 900mm | 32mm | 45mm | 1050mm | 25mm |
| AEH - 01D | 1200mm | 32mm | 45mm | 1350mm | 25mm |
| AEH - 01E | 1500mm | 32mm | 45mm | 1650mm | 25mm |
