Onyyx
Onyyx Sensor

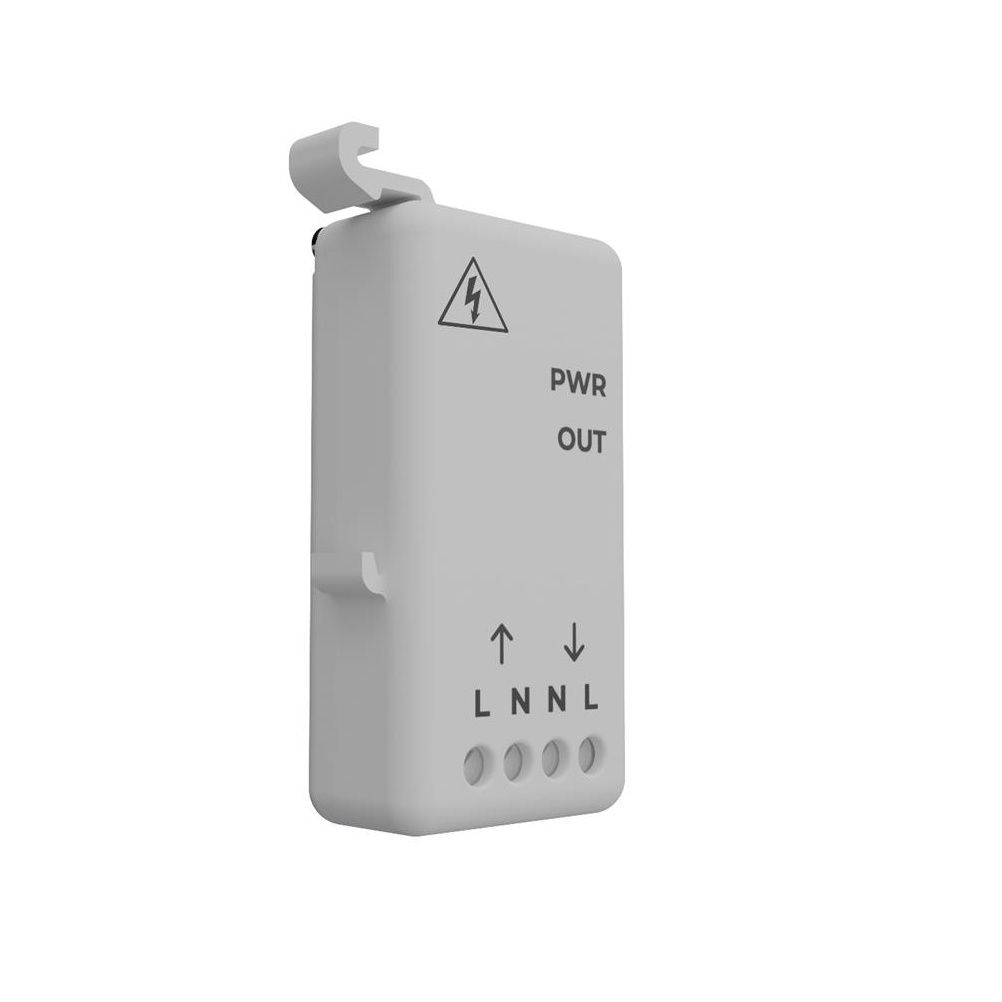

AC Relay
Features:
Small form factor for easy integration into existing systems
Integrated clips for installation onto DIN-rail
Mains powered
Easy installation with in-app setup
Secure Bi-directional wireless communication
Trigger on an event, remote keyfob or on a schedule
Show more
Technical Specification
Certifications
ICASA TA2025/1136
Dimensions
58mm x 30mm x 17mm
RF Protocols and Frequencies
Xwave2lite – 867.650MHz
Up to 300m line-of-sight
Power supply
110VAC @60Hz—220VAC @50Hz
Switching Current
Resistive load: 8A @ 250VAC (2KW)
Inductive load: 1HP (0.75KW)
Temperature
-10⁰C – 55⁰C
