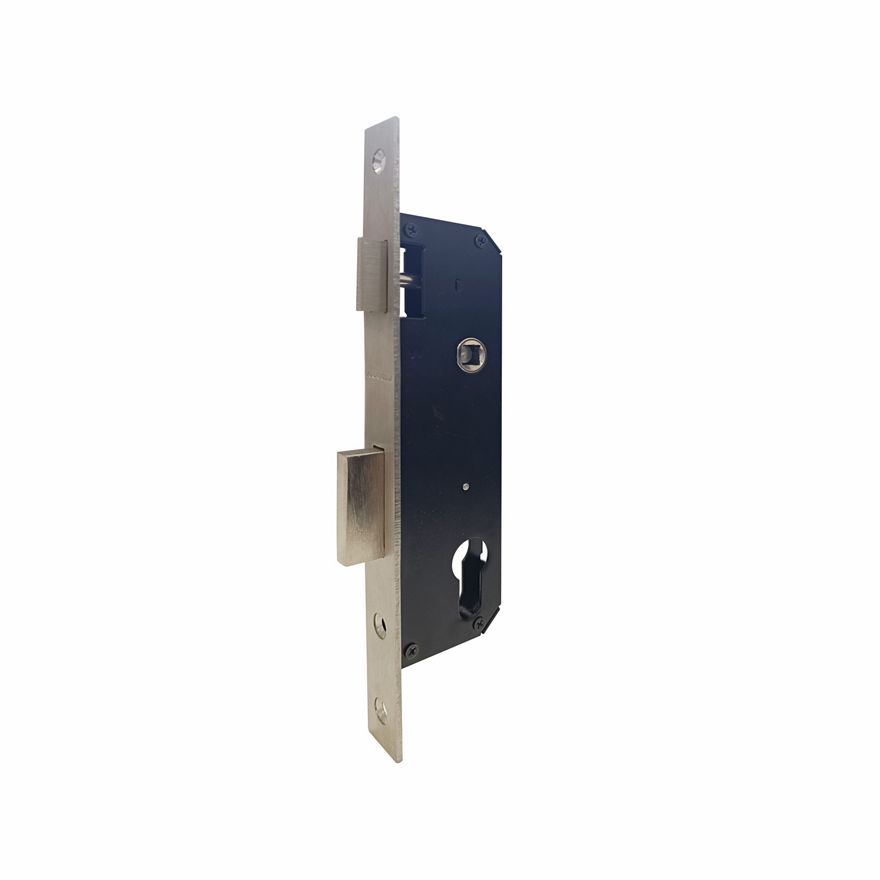

Mortise Lockcase AA 2403 Series

Model no.: AA 2403 3025 / AA2403 3085 / AA2403 3585

Description: AA2403 ASSA ABLOY Narrow stile Mortise Sash Lock

Material Specification: • Front Plate: SS202 Grade
                                      • Striker Plate: SS202 Grade
                                      • Dead bolt: Zinc
                                      • Latch bolt: Zinc

Finish: Satin Stainless Steel , Matt Black , SS Matt Black

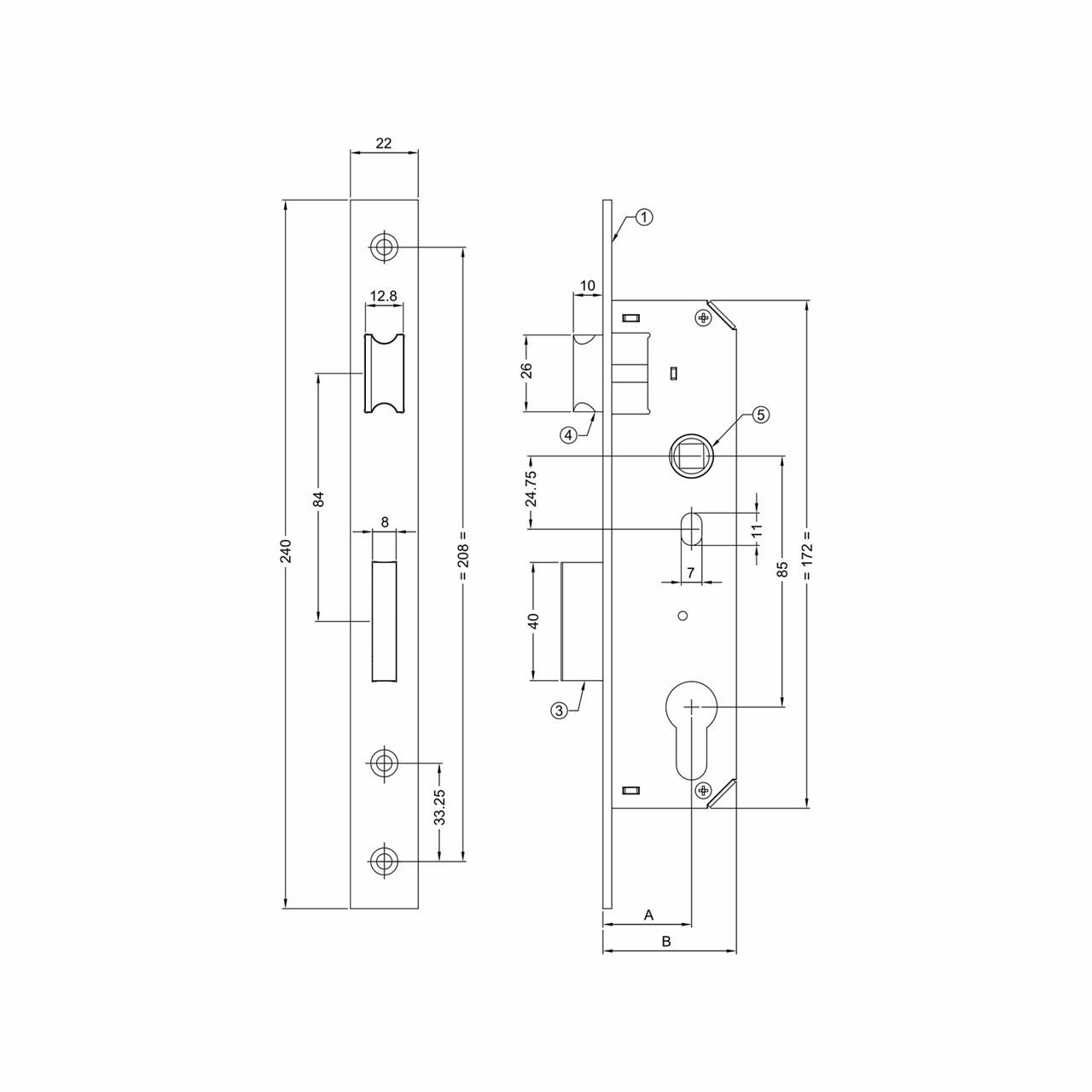

Dimension Chart

SR NO BST DIM 'A’ DIM 'B’
1 25 mm 25 35.2
2 30 mm 30 40.2
3 35 mm 35 45.2
