AA510R 2085, AA510R 2585, AA510R 3085 AA510R 3585
Key features:
- Made of SS 304
- 4 different functions
- 4 Backset options
- Non-handed - latch reversible
- Compliant to BS EN 12209
Benefits:
- High corrosion resistance
- High durability
- Versatile usage
Technical details:
- Center to center - 85mm
- Backset - 20mm, 25mm, 30mm, 35mm
- Door thickness requried - 35mm to 50mm with the standard screw fixing pack provided
- Fits standard cam euro profile cylinder
- Single throw projection deadbolt - 15mm
- Suitable for hinged aluminium and metal doors
- All mortise lockcases contain suitable strike platesand screws
Description:

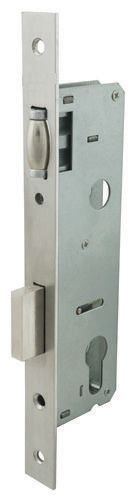

AA510R ASSA ABLOY Narrow profile mortise lockcase C to C: 85mm
- Finish: SSS - Satin Stainless Steel
- Outside: Bolt is locked or unlocked by key or turn.
- Inside: Bolt is locked or unlocked by key or turn.
*Roller bolt can always open the door from insideand outside when door is unlocked, roller bolt is notoperated by handle.
| Model no. | Backset |
| AA510R 2085 | 20mm |
| AA510R 2585 | 25mm |
| AA510R 3085 | 30mm |
| AA510R 3585 | 35mm |
