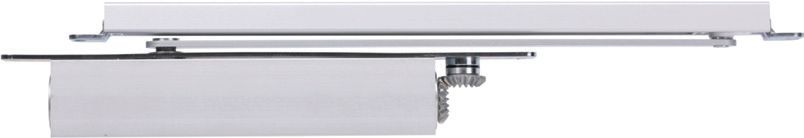

Concealed door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator and two electro-mechanical hold-open devices

Product Description

• Concealed door closer with Cam-Motion® technoloand guide rail with integrated mechanical coordinator and two electro-mechanical hold-open devices for double leaf doors
• Guide rail is certified in compliance with EN1155 and EN 1158, size
• 3-6 Closer is certified in compliance with EN1154, size
• 1-5Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Suitable for fire and smoke protection double leave doors, hinge distance 1350-2500 mm DIBt approval with different smoke detection systems

Overview of Advantages

• Concealed guide rail with integrated electro-mechanical hold-open device on both sides and door coordinator based on wedge system
• Hold-open angle adjustable between 80° - 120° Continuously adjustable holding force
• Large range of applications Standard colours: silver EV1
• Customised finishes available on request

Note

• Concealed guide rail G882 / G884 Facts for door closer see DC860
• Additional verification of suitability required for the respective fire or smoke protection door

Characteristics G882

• Concealed mechanical coordinator with two electro-mechanical hold-open devices for double leaf doors
• Possible to keep active leaf or both door leaves open

Characteristics G884

• Concealed mechanical coordinator with one electro-mechanical hold-open device for double leaf doors
• Possible to keep both door leaves open by using only one electro-mechanical hold-open device
