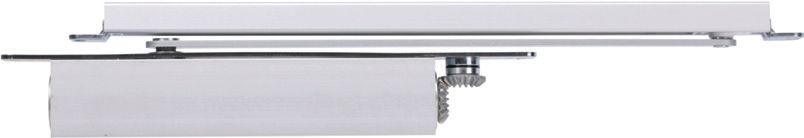

DC860 with G880 Concealed Cam-Motion®

Concealed door closer with Cam-Motion® technology and guide rail with electro- mechanical hold-open device for single leaf doors

Product Description

• Concealed door closer with Cam-Motion® technology and guide rail with electro-mechanical hold- open device for single leaf doors
• Guide rail is certified in compliance with EN1155, size
• 3-6 Closer is certified in compliance with EN1154, size 1-5
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Suitable for fire and smoke protection doorsFor single action doors up to 1250 mm wide

Overview of Advantages

• Concealed electro-mechanical hold-open
• device Continuously adjustable holding force
• Can be used for left and right-handed doors
• Closing speed and latching speed adjustable from top facing regulating valves
• Hold-open angle continuously adjustable between 80°- 120°
• Built-in backcheckThermodynamic valves for consistent performance
• Large range of applicationsVersions with 4 mm and 8 mm spindle extensions
• Standard colours: silver EV1
• Customised finishes available on request

Note

• Concealed guide rail G880
• Facts for door closer see DC860
• Additional verification of suitability required for the respective fire or smoke protection door
