AAH303, AAH304, AAH305, AAH306 AAH307, AAH310, AAH314D, AAH315D, AAH316D
Description:
- Ball bearing race ideal for improved quality
- Square corners
- 304 stainless steel provides improved corrosion resistance
- Also available in Grade SS316 upon request
- Available with template or congruent (zigzag) fixing pattern: please specify requirement on order
- Available with timber (W) or metal (M) door
- Dog bolt hinges for additional security (D)
- 2ball bearing hinges
Hinge Size (mm):
| Model No | Height | Width | Thickness |
| AAH303 | 102 | 76 | 3.0 |
| AAH304 | 102 | 102 | 3.0 |
| AAH305 | 102 | 89 | 3.0 |
| AAH306 | 127 | 76 | 3.0 |
| AAH307 | 114 | 102 | 3.4 |
| AAH310 | 114 | 114 | 3.4 |
| AAH314D | 102 | 76 | 3.0 |
| AAH315D | 102 | 89 | 3.0 |
| AAH316D | 102 | 102 | 3.0 |

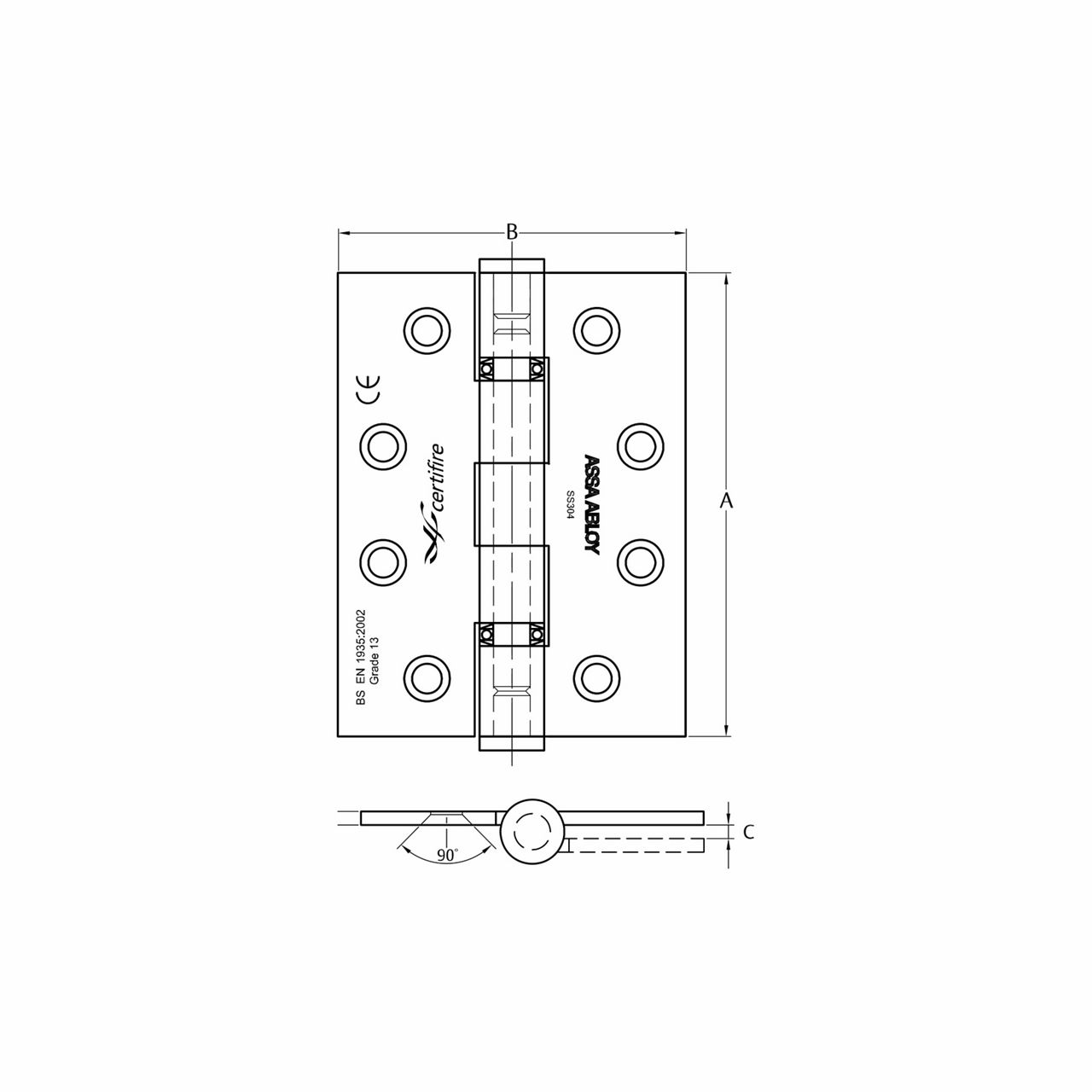

ASSA ABLOY AAH303 stainless steel fire-rated hinge

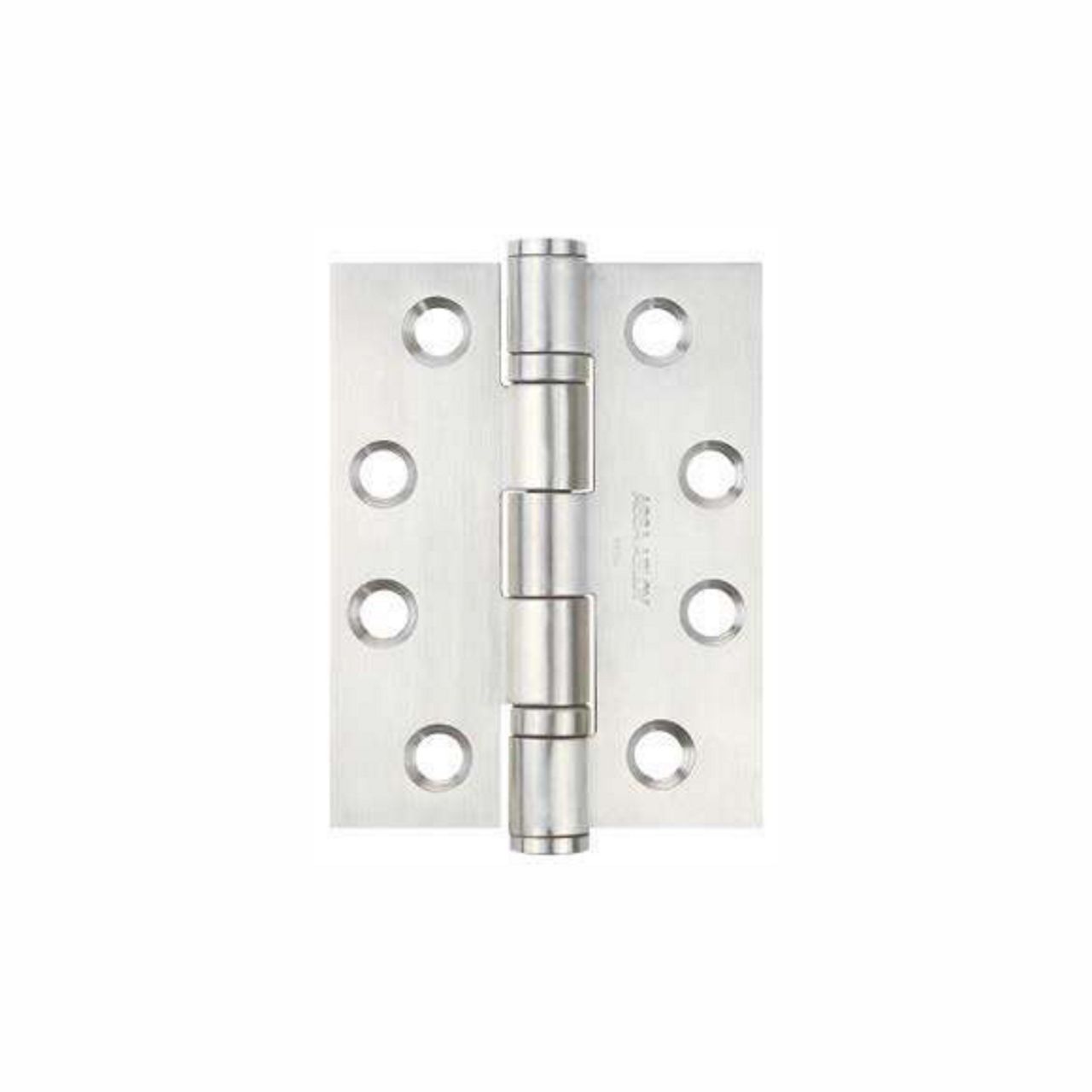

ASSA ABLOY AAH303 stainless steel fire-rated hinge
