AAH203, AAH204, AAH205, AAH206 AAH207, AAH210, AAH217, AAH218 AAH219, AAH220
Description:
- 2 Ball Bearing 5 knuckle hinges
- Square corners
- 304 stainless steel provides improved corrosion resistance
- Also available in SS316 Grade upon request
- Available with timber (W) or metal (M) door fixing
Please specify requirement on order
- Also available with Security Stud Feature
- (DOG BOLT) upon request
- Weight up to 120 kg
- Investigated to ANSI/BHMA A156.1
- Also evaluated in accordance with standard UL 10C.
Description:
- Satin Stainless Steel - US32D
- Matt Blck
| Model No. | Height | Width | Thickness |
| AAH203 | 102 | 76 | 3.0 |
| AAH204 | 102 | 102 | 3.0 |
| AAH205 | 102 | 89 | 3.0 |
| AAH206 | 127 | 76 | 3.0 |
| AAH207 | 114 | 102 | 3.4 |
| AAH210 | 114 | 114 | 3.4 |
| AAH217 | 114 | 102 | 3.0 |
| AAH218 | 114 | 114 | 3.0 |
| AAH219 | 127 | 89 | 3.0 |
| AAH220 | 127 | 102 | 3.0 |

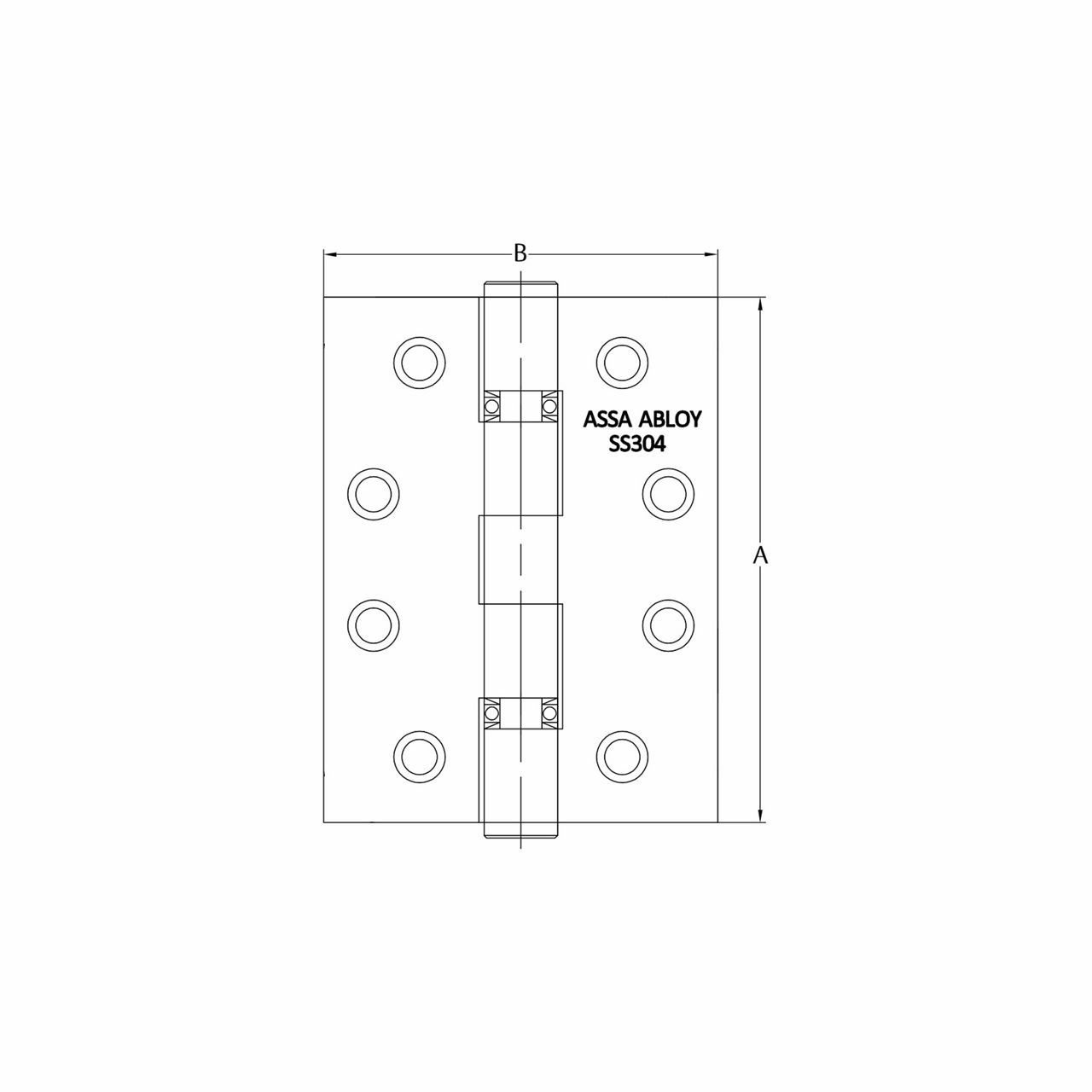

ASSA ABLOY AAH203 stainless steel fire-rated hinge

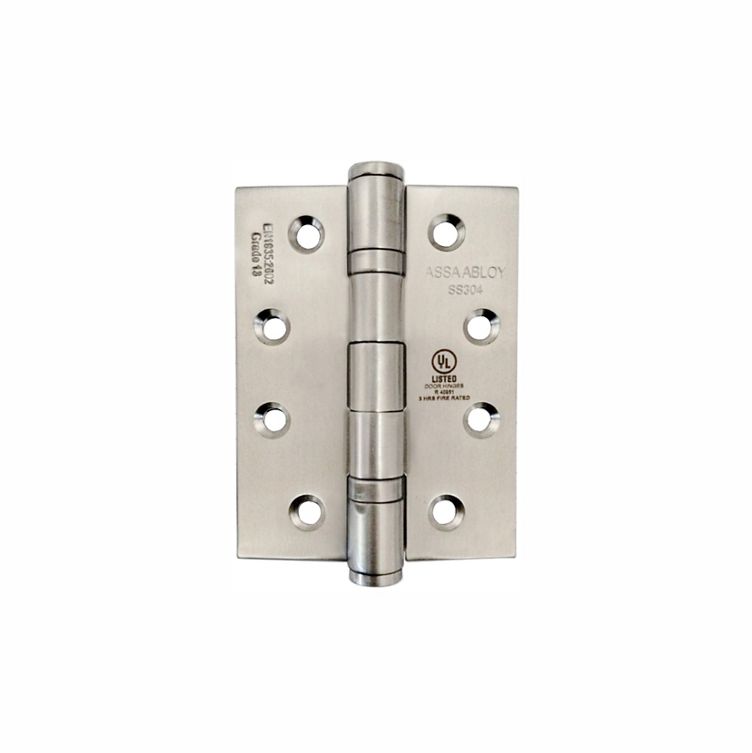

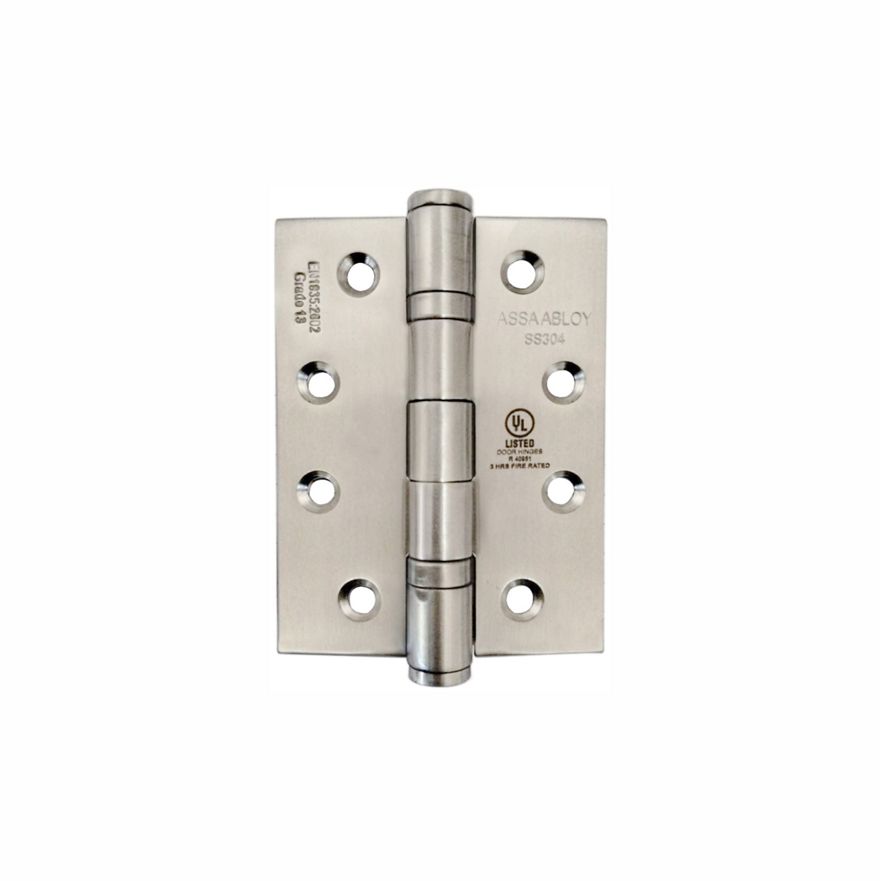

ASSA ABLOY AAH203 stainless steel fire-rated hinge
