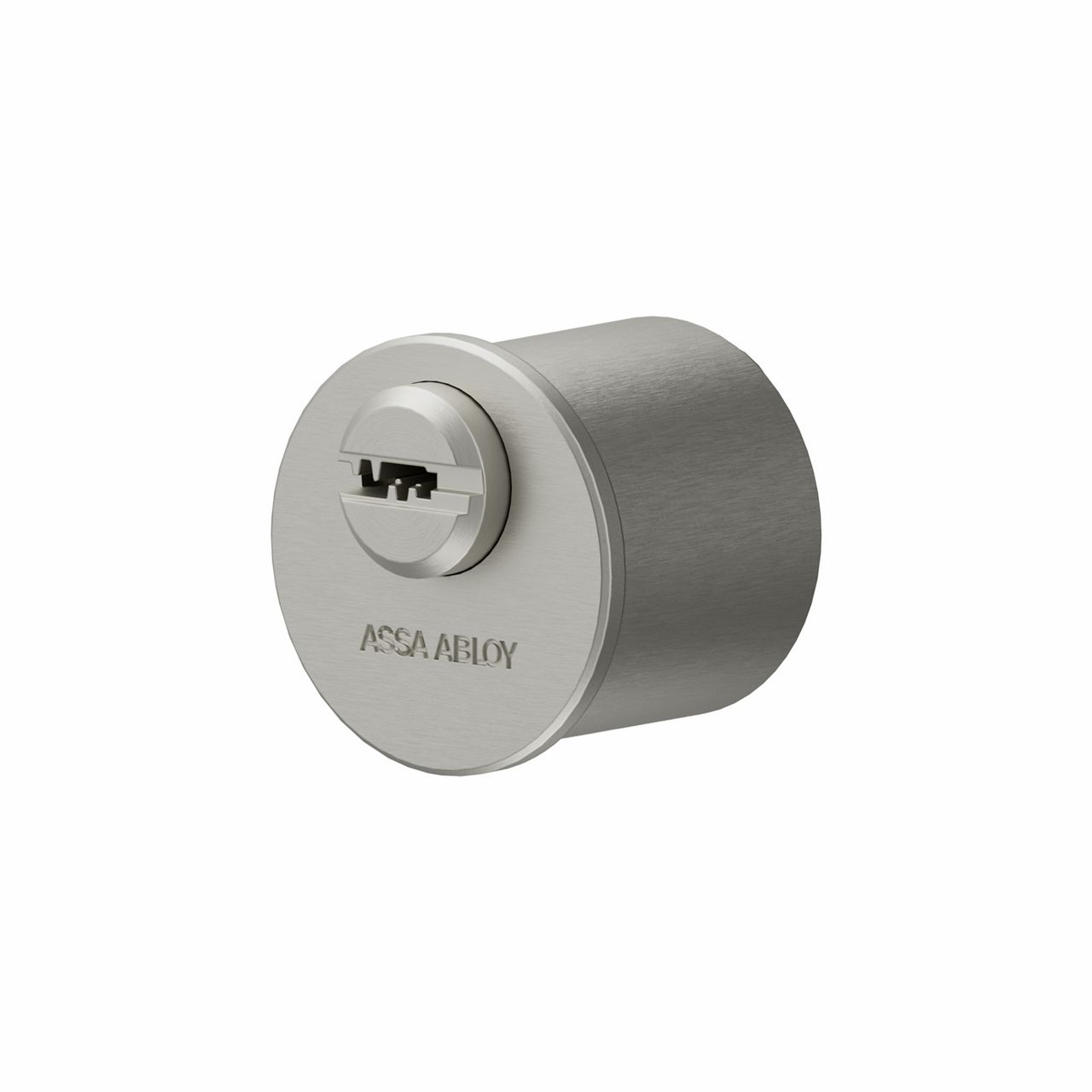

CY100 Rim Cylinder

Secure entrances while at the same time, enabling anyone inside to make an easy exit.

The CY100 Rim Cylinder can be used with night latches or other locking devices which are operated from a tailbar.

Applications:

1 of 3

Feature	Detail
Attack resistance	Anti-pick \| Anti-drill ‒ 5 minutes' drilling resistance \| Anti-pull ‒ 15 kN pulling resistance \| Anti-bump (only for KA and KD)
Number of keys	3
Max. number of effective key differs	39,411
Max. number of MKS profiles	4
Number of pins	6
Raw material	Brass
Finish	Satin Nickel

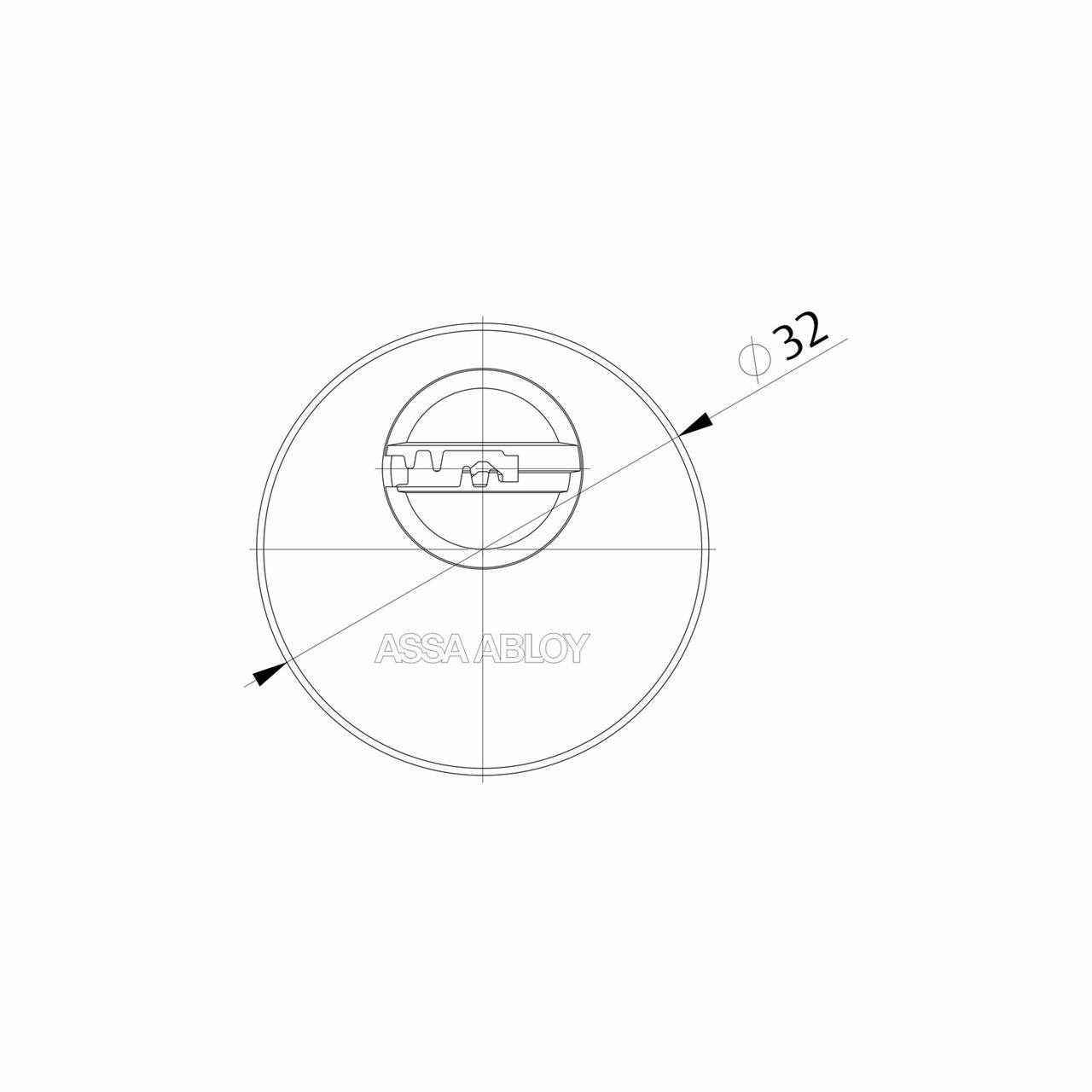

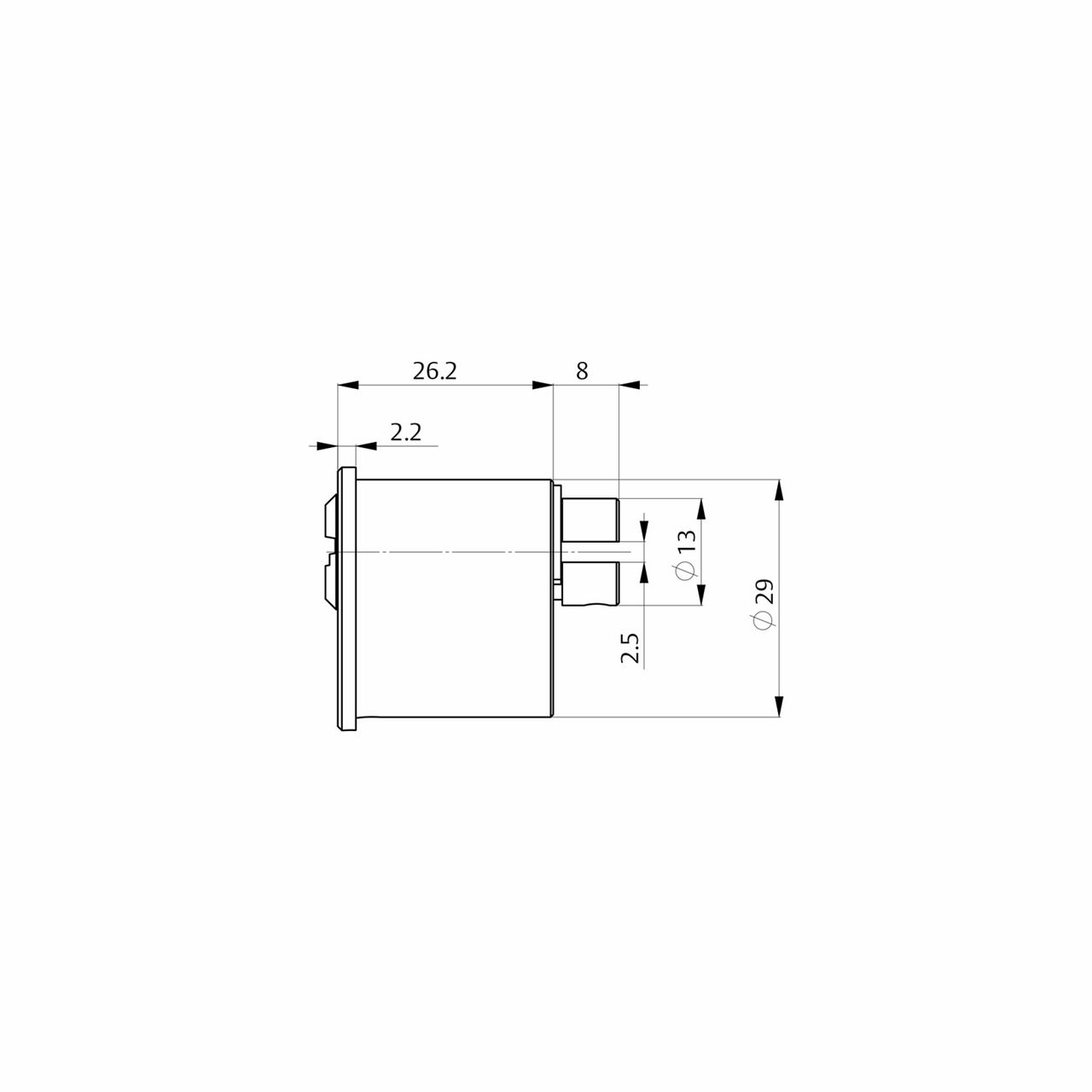

Dimensions	Face diameter: 32 mm \| Body diameter: 29 mm \| Tailbar length: 53 mm
Weight	175 g
