    AAF-U70

    High-Security doors and screens with Thermal Insulation

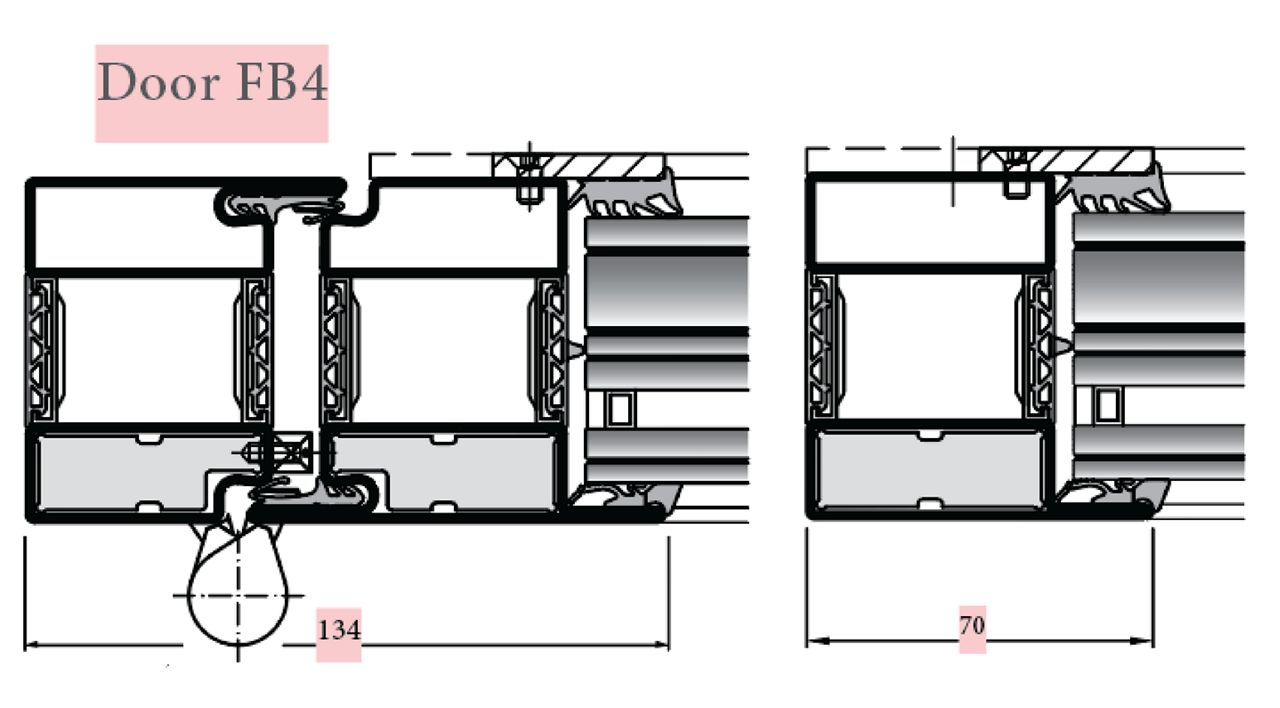

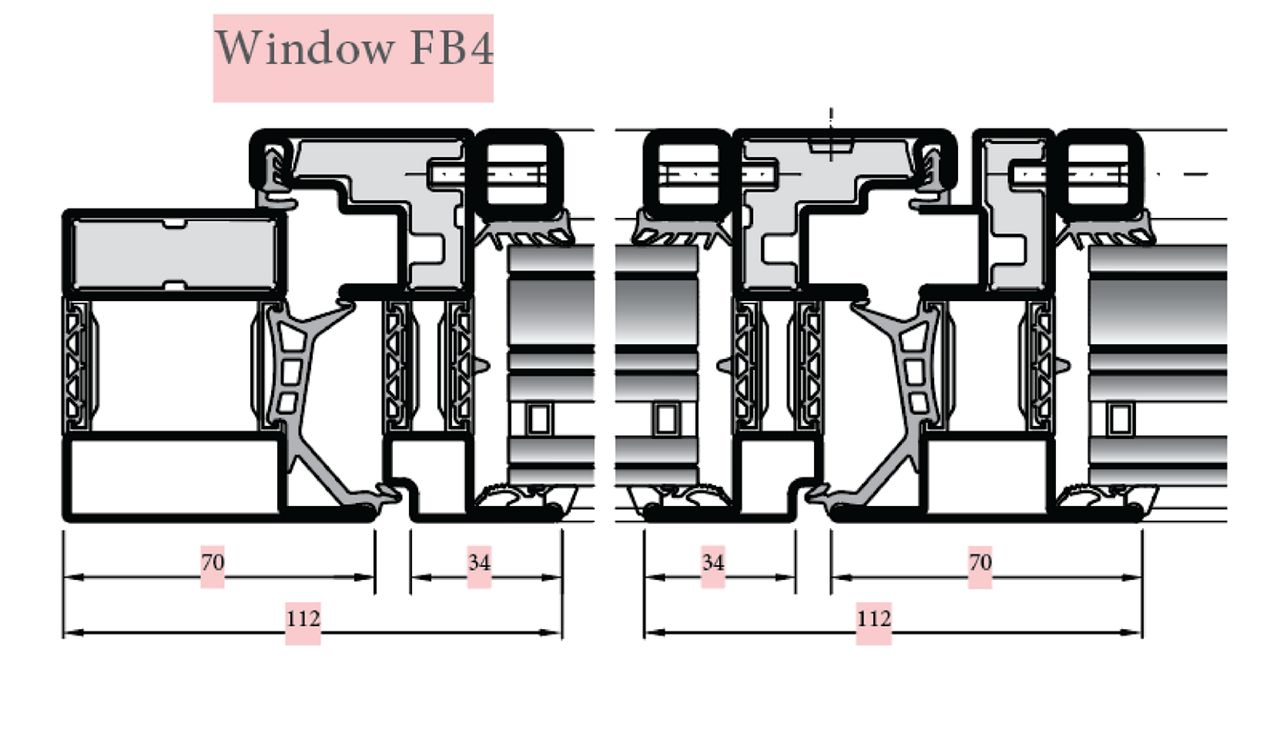

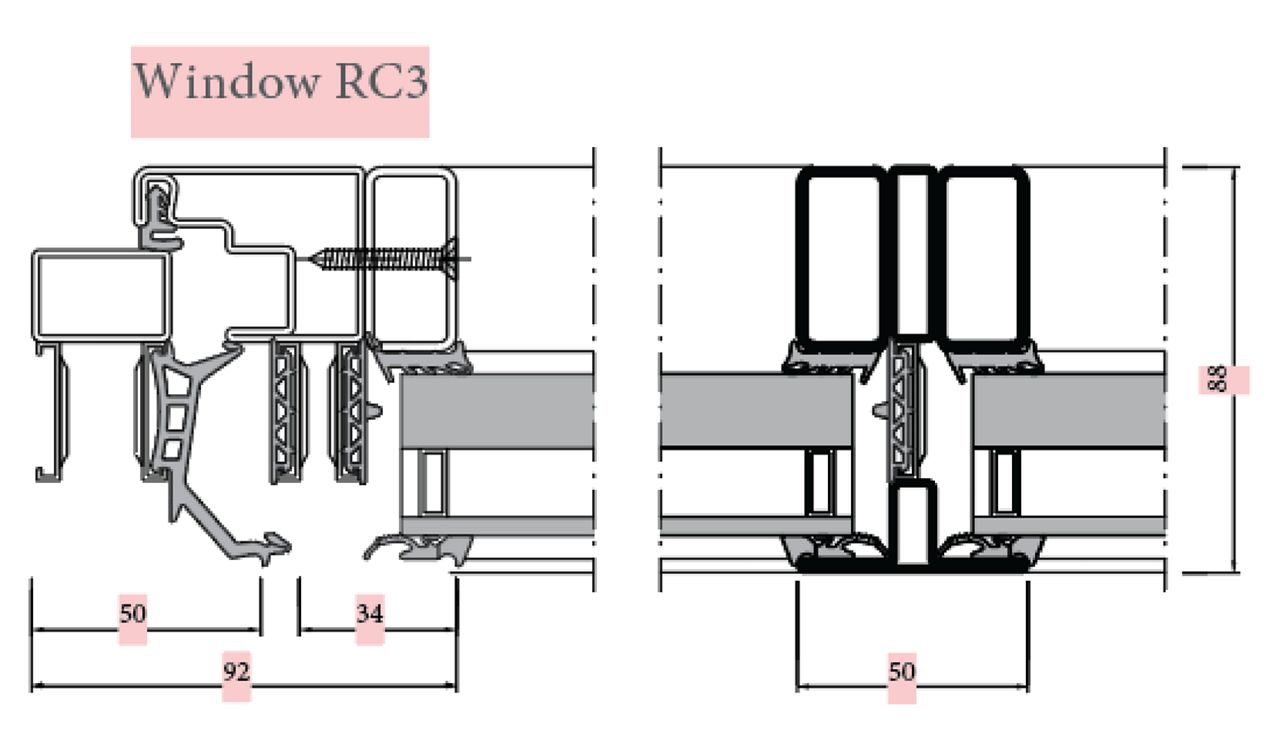

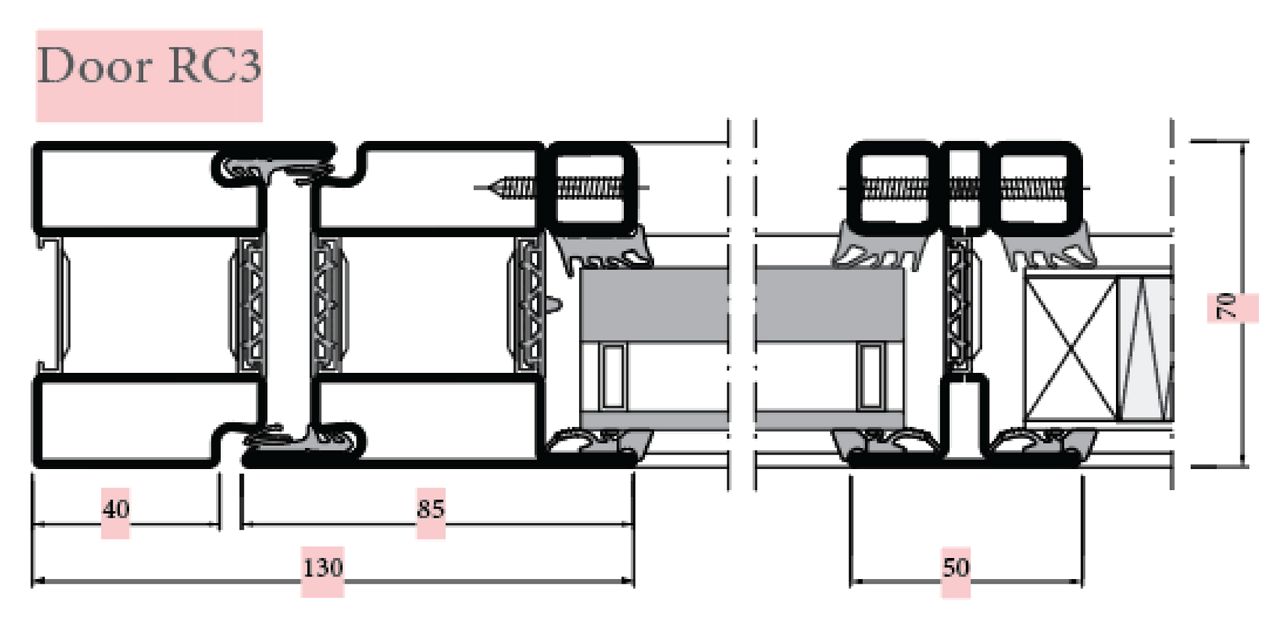

    This system is a thermally insulated profile system used for flush mounted single or double-leaf swing doors, windows and glazed partitions.

    It is manufactured from cold rolled mild steel with a zinc magnesium coating or stainless steel profiles, square cut Snap-on glazing beads, and can include aluminum reinforcement embedded in the profiles. With a nominal depth of 70mm, the profiles can also be welded together to form complex constructions.

    The system has been comprehensively tested to both the European and North American standards for high-security parameters; which includes burglary, ballistic, and blast resistance.



    Download Technical Data
