DC 700 with G462 / G464

Technical details:

Door closer with Cam-Motion® technology and guide rail
Certified in compliance with EN1154/EN1158, size 3-6
Operates independently of door closers and offers best possible safety and reliability
Suitable for fire and smoke protection double leaf doors, hinge distance 1350-2500 mm, non-hinge side installation hing distance 1400-2800 mm

Characteristics of DC 700 with G461

Integrated mechanical coordinator for double leaf doors
Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
Active leaf could stay open in any selected angle up to 150° when inactive leaf is opened
Standard mounting position on hinge side and non-hinge side
Non-hinge side mounting requires hook arm G120
Axis continuoulsy height adjustable up to 14 mm
Large range of applications
Standard colours: silver EV1; white, similar to
RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
Customised finishes available on request

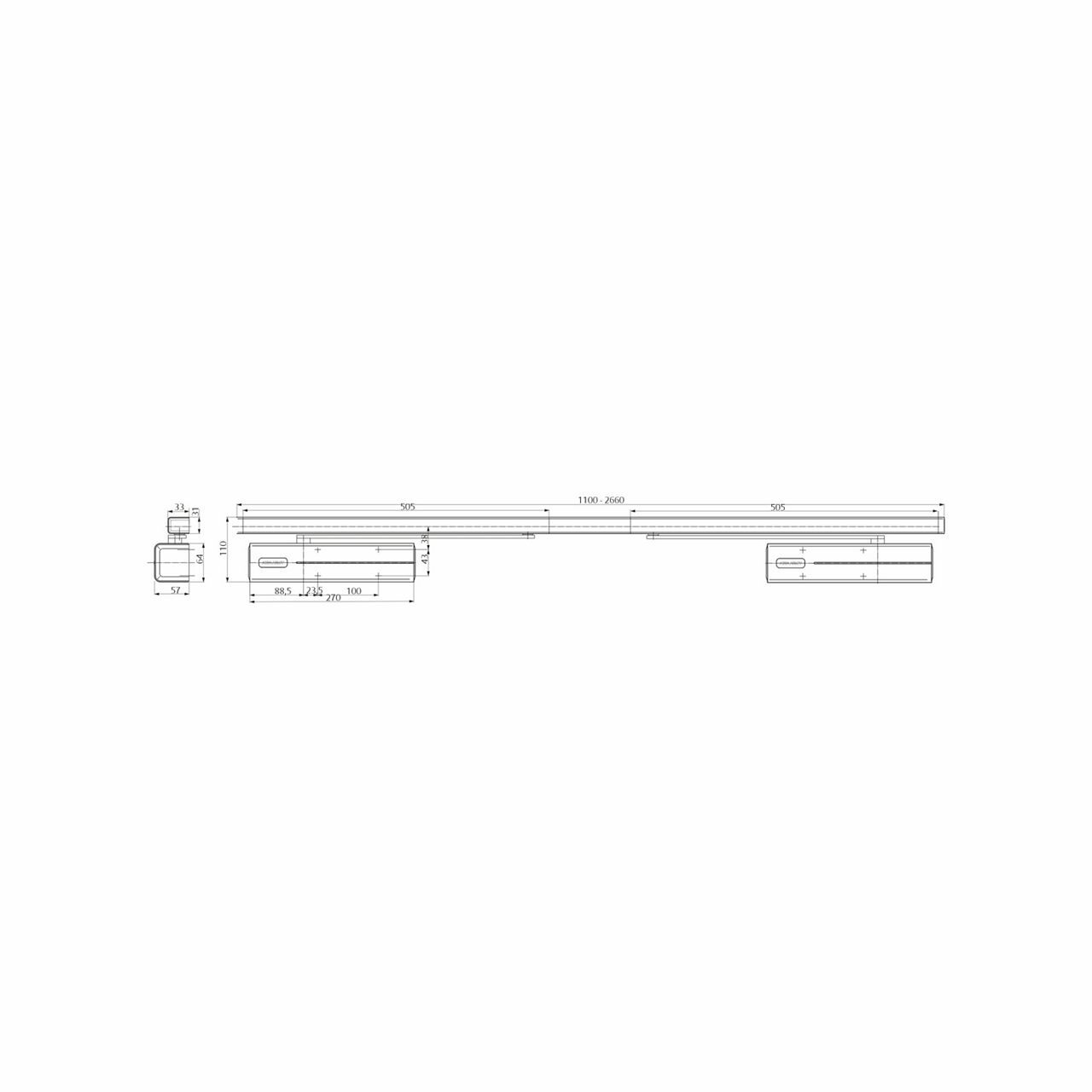

ASSA ABLOY DC700 with G462 G464 guide-rail systems for double leaf doors, electromechanical hold-open feature

Specification for DC700 with G462 / G64

ASSA ABLOY guide rail with mechanical coordinator and electro-mechanical hold-open device for double leaf doors used with DC700 Cam-Motion^® technology door closers

Hinge distance 1250 - 2800 mm
Hold-open angle of inactive leaf adjustable between 70° - 130°
Continuously adjustable holding force
Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
Standard mounting position on hinge side and non-hinge side
Non-hinge side mounting requires hook arm G120
Axis continuoulsy height adjustable up to 14 mm
Large range of applications
Possible to keep active leaf or both door leaves open (G462)
Possible to keep both door leaves open (G464)

Accessories:

Mounting plate A115
Angle bracket A116
Angle bracket A117
Hook arm G120 for non-hinge side mounting
Carry bar A101 for hinge side installations
Carry bar A102 for non-hinge side installations
Smoke detector
Flush mounted or surface mounted release button
Mechanical bearing A151, for double doors
Smoke protection detector A177
Flush mounted door release button A178
Opening damper A191

Colour:

Silver EV1
White, similar to RAL9016
Brown, similar to RAL8014
Black, similar to RAL9005
Stainless steel
Customised finish

DC 700 with G462 / G464
