DC 700 with G461
Technical details:
- Door closer with Cam-Motion technology and guide rail
- Certified in compliance with EN1154/EN1158, size 3-6
- Operates independently of door closers and offers best possible safety and reliability
- Suitable for fire and smoke protection double leaf doors, hinge distance 1350-2500 mm, non-hinge side installation hing distance 1400-2800 mm
Characteristics of DC 700 with G461
- Integrated mechanical coordinator for double leaf doors
- Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
- Active leaf could stay open in any selected angle up to 150° when inactive leaf is opened
- Standard mounting position on hinge side and non-hinge side
- Non-hinge side mounting requires hook arm G120
- Axis continuoulsy height adjustable up to 14 mm
- Large range of applications
- Standard colours: silver EV1; white, similar to
- RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
- Customised finishes available on request

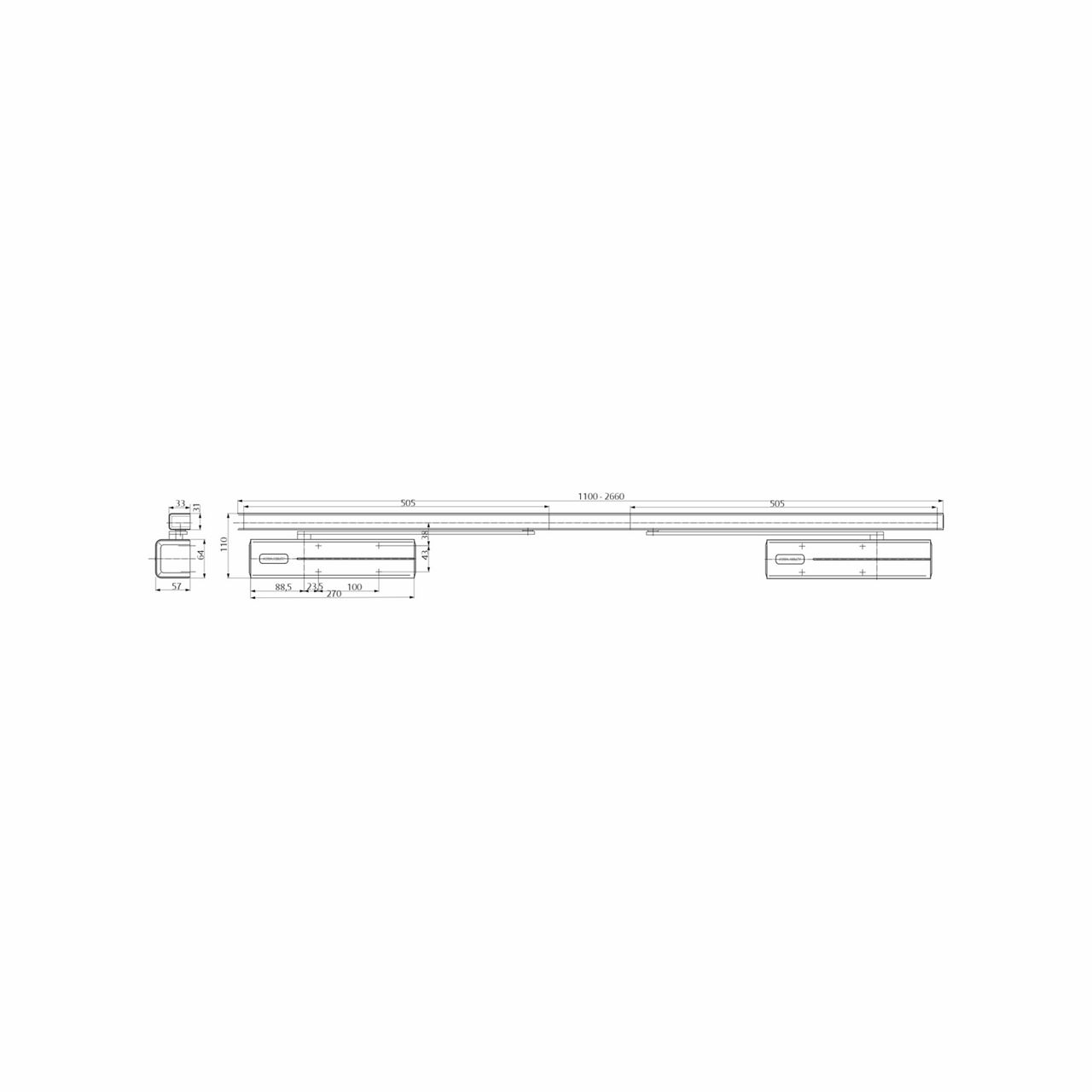

ASSA ABLOY DC 700 door closer equipped with G461 guide rail and mechanical coordinator for double leaf doors

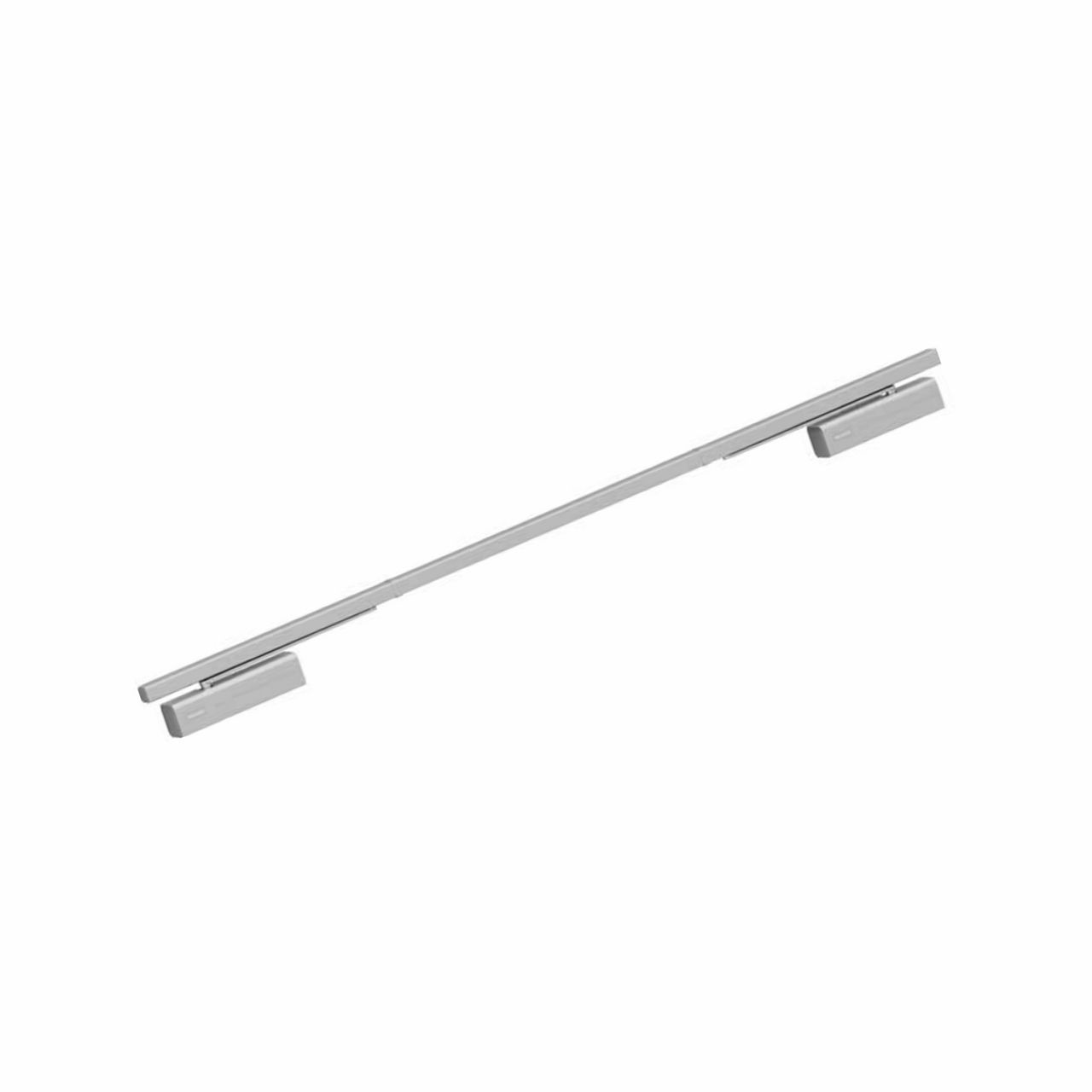

ASSA ABLOY DC 700 door closer equipped with G461 guide rail and mechanical coordinator for double leaf doors
