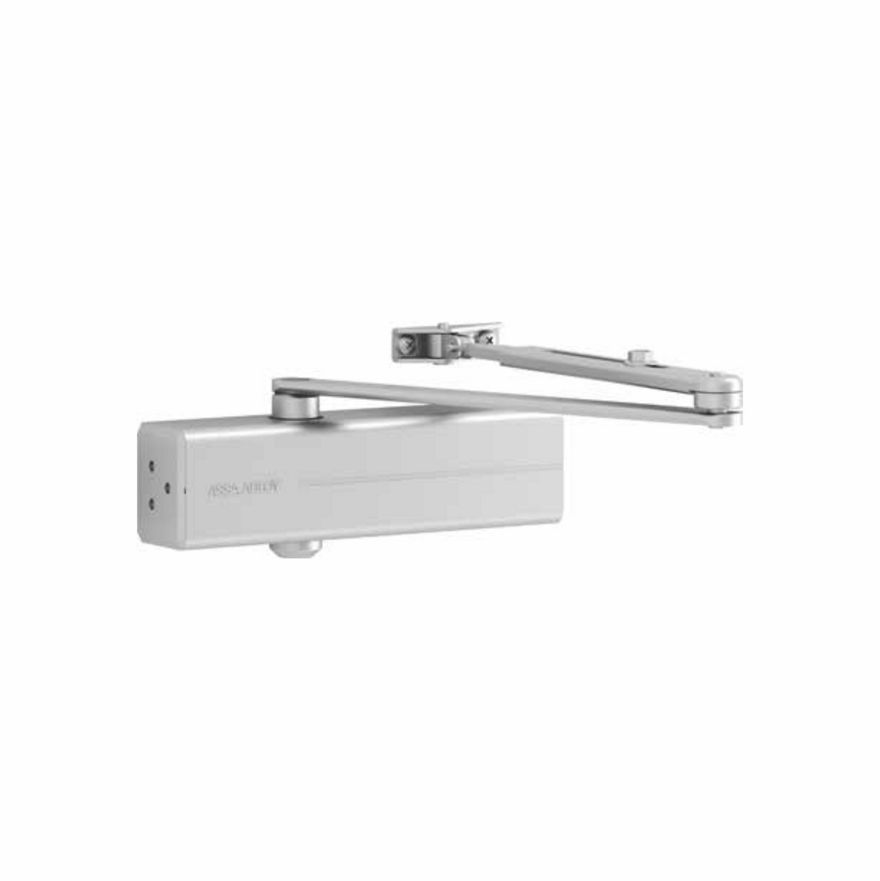

DC 140

Technical details:

  • Rack and pinion door closer with link arm
  • Certified in compliance with EN 1154, Size 2/3/4/5
  • For single action door up to 1250mm wide

Characteristics of DC140:

  • Can be used for left and right-handed doors
  • Suitable for fire and smoke protection doors
  • Closing speed, latching speed and back-check continuously adjustable using regulating valves
  • Thermodynamic valves for consistent performance
  • Closing force configurable
  • Opening angle up to 180° (EN5 = 125°)
  • Standard colour: Silver Ev1; white, smiliar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005

Specification for DC 140:

ASSA ABLOY Door closer DC140 featuring rack and pinion technology in compliance with EN1154

  • Closing force configurable, size EN 2/3/4/5 for doors up to 1250mm wide
  • Closing speed and latching speed and backcheck continuously adjustable
  • Suitable for left and right handed doors
  • Suitable for fire and smoke protection door
  • CE approved

Accessories:

  • Link arm L140
  • Hold-open link arm L141 (not for fire and smoke protection doors)
  • Guide rail G143 (not for fire and smoke protection doors)
  • Parallel arm bracket A154
  • Mounting Plate A161

Colour:

  • Silver EV1
  • White, similar to RAL9016
  • Brown, similar to RAL8014
  • Black, similar to RAL9005
