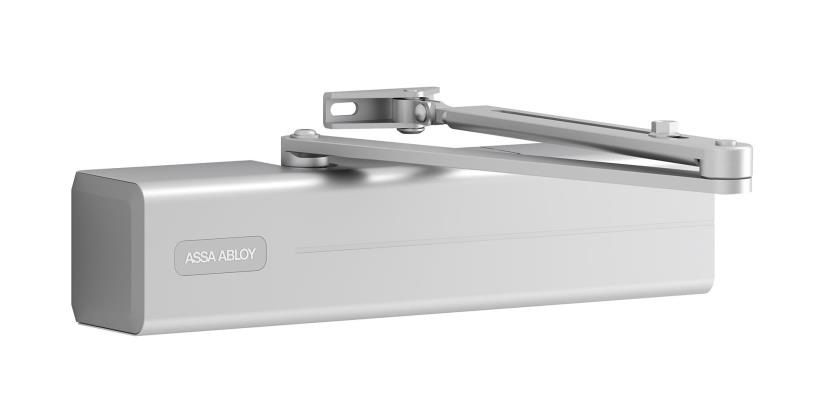

DC340

Rack and pinion closer with guide rail or link arm.

Closing force: EN 1-4* / EN 2-6†, *guide rail variant; †link arm variant

Mechanism: Rack and pinion

Closing speed: Variable between 180°-15°

Latching speed: Variable between 15°-0°

Backcheck: Variable above 75°

Delayed action: Yes

Door width up to: 1100mm* / 1400mm†, *guide rail variant; †link arm variant

Maximum door weight: 80kg* / 120kg†, *guide rail variant; †link arm variant

Height adjustable arm system: 14mm

Hold-open mode (with hold-open link arm L191): Adjustable 75°-150° (can be enabled and disabled), Not suitable for use on fire/smoke door assemblies

Maximum opening angle: 180° (hinge side), 130° (non-hinge side)

Mounting method: Hinge side, non-hinge side

Handing: Non-handed

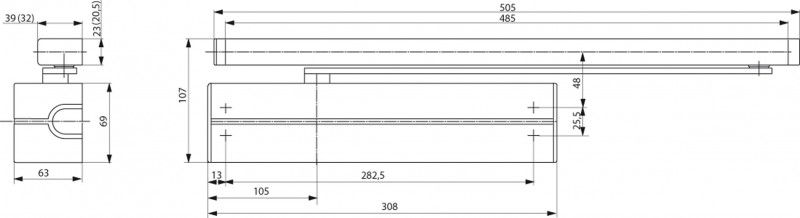

Dimensions (H x D x W): 69 x 64.5 x 306mm

Finish: SIL, SSS
