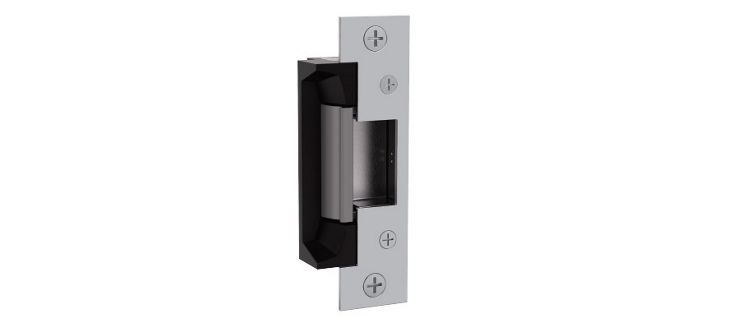

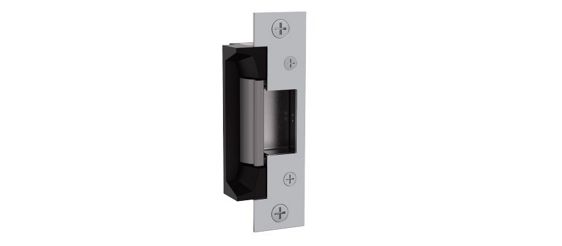

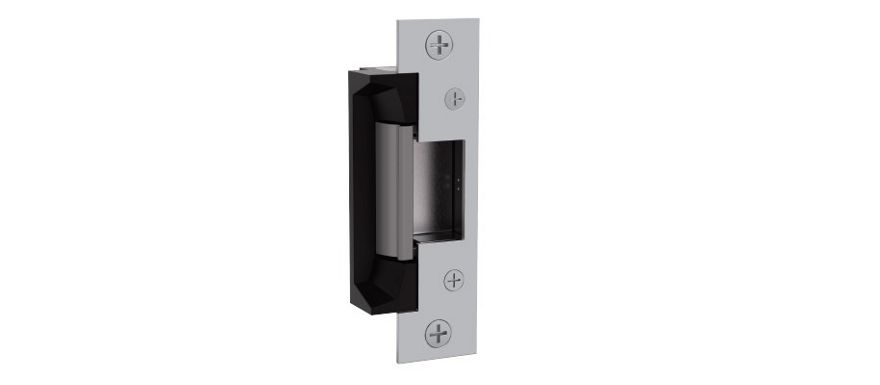

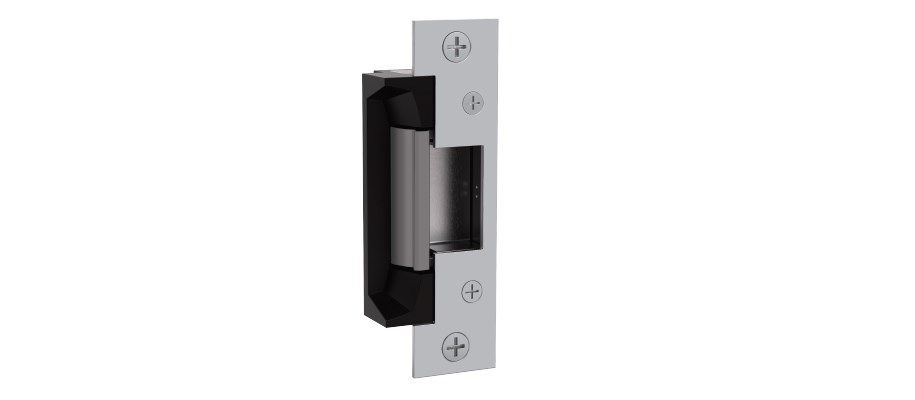

5200 Series

The grade 1 solution with horizontal adjustability for Latchbolt locks.

The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process. This features allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to a 3/4" throw. The 5200 is also available in a Complete Pac which pairs the strike body with the faceplates and mounting hardware all in one simple convenient package.

Frame application

• Metal
• Wood

Electrical

• .24 Amps at 12 VDC/VAC
• .12 Amps at 24 VDC/VAC
• DC continuous duty/AC intermittent duty only

Standard Features

• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• Field selectable fail secure/ fail safe
• Dual voltage 12 or 24 VDC/VAC
• Non-handed
• Internally mounted solenoid
• Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
• Strike body depth 1-1/16"
• Plug-in connector
• Trim enhancer included
• Five year limited warranty

Optional Features

• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
  *Complete Pacs are only available in the 630 finish
