drop bolt (motor bolt) 843G

for gates and doors

Product description

Electric motor bolt for doors, gates and roller shutters with high security demands. For outdoor and indoor use.

Overview of Advantages

• holding force 50 000N
• designed for outdoor use, protection class IP67
• integrated heating, can be switched on via dip switch
• fail-locked/fail-unlocked configurable via dip switch
• push button/switch function configurable via dip switch (Toggle mode)
• multi-voltage 12V DC to 24V DC (heating only 24V DC)
• various monitoring contacts
• anti-tamper contact
• mounting position vertical and horizontal

Scope of delivery

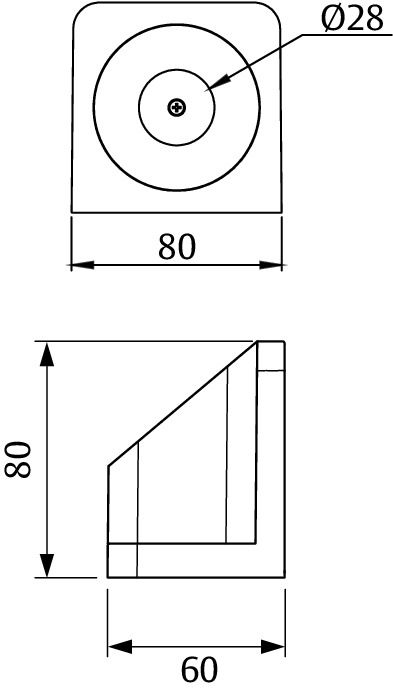

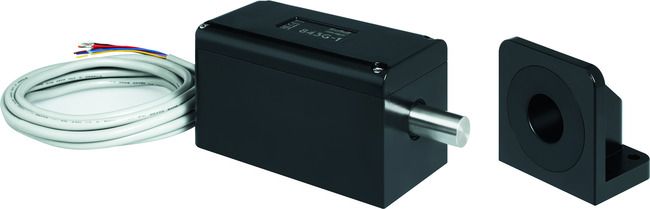

• drop bolt 843G with 3 metre connection cable, with housing base seal, incl. counterpart

Note

• Please note the installtion instructions
• For vertical mounting position, the locking direction is recommended to close downwards.
