SAM Shear Aligning Magnalock®

Hidden strength for any application. 1200 lbs. holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors.

Product Overview

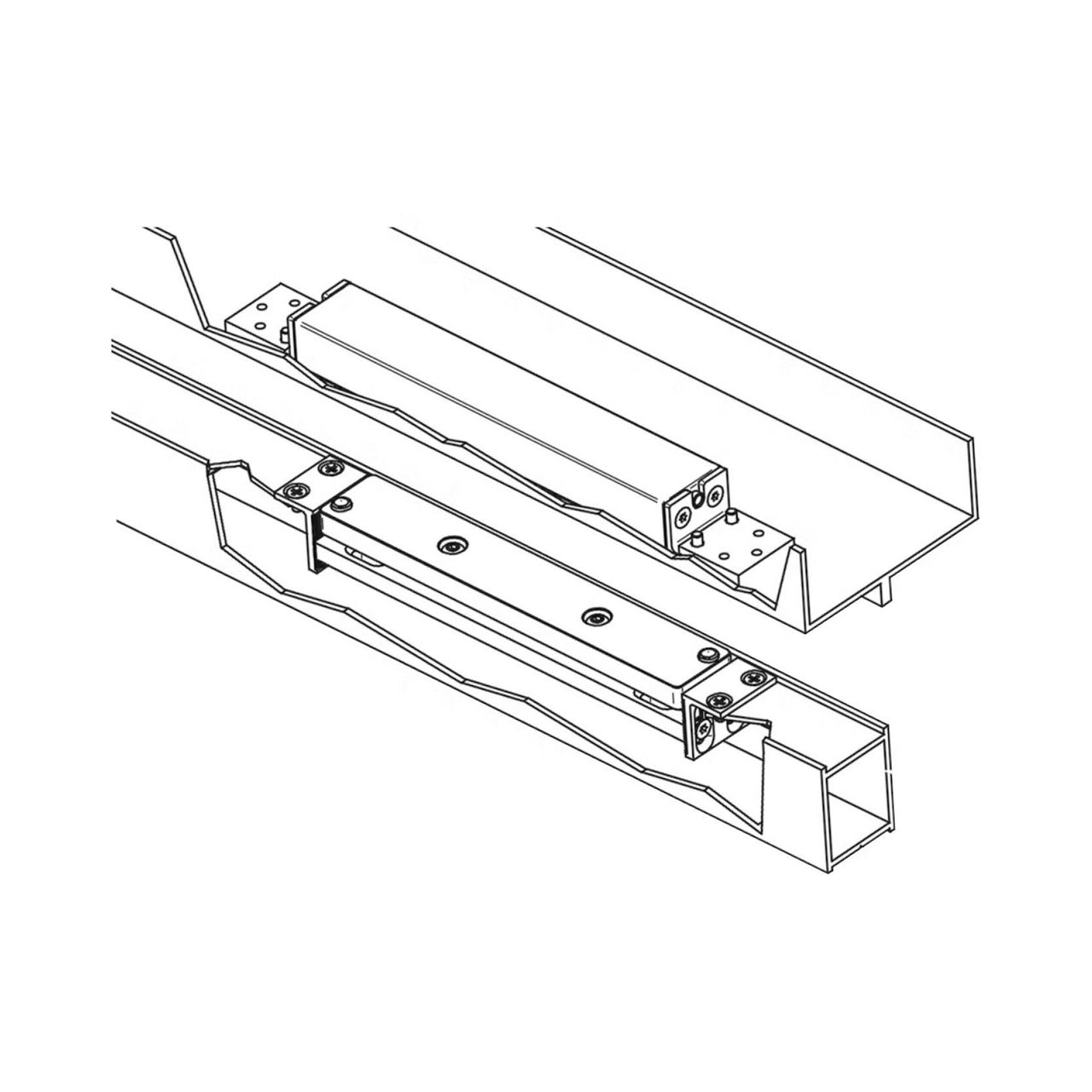

This concealed Magnalock is ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The Securitron SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or latching in any position; at the header, door edge or threshold.

• Auto Sensing Dual Voltage
• Lifetime Warranty
• Preload Capable
• Fire-Rated
• Grade 2

Product Features

• Instant release circuit- no residual magnetism
• Rust resistant- all ferrous metal surfaces plated for durability
• Fully sealed for weather resistant operations
• Direct mount in door frame for strength and reliability
• Automatic dual-voltage - no field adjustment required
• MagnaCare^® lifetime replacement, no-fault, no questions asked warranty
• Efficient, low power usage
• Noise suppression with built-in MOV
• 10 ft [3.05m] of jacketed, stranded conductor
• Recessed for aesthetically appealing finish
