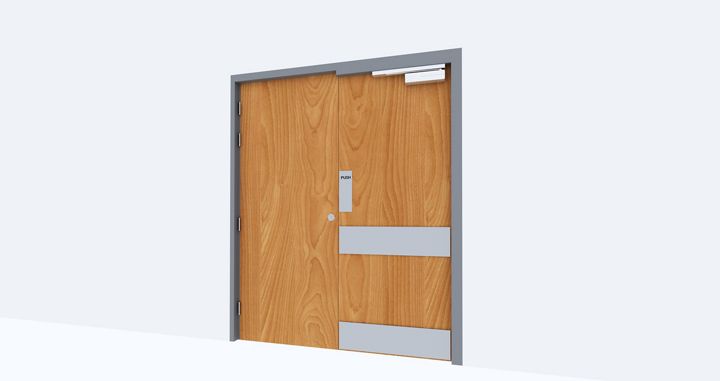

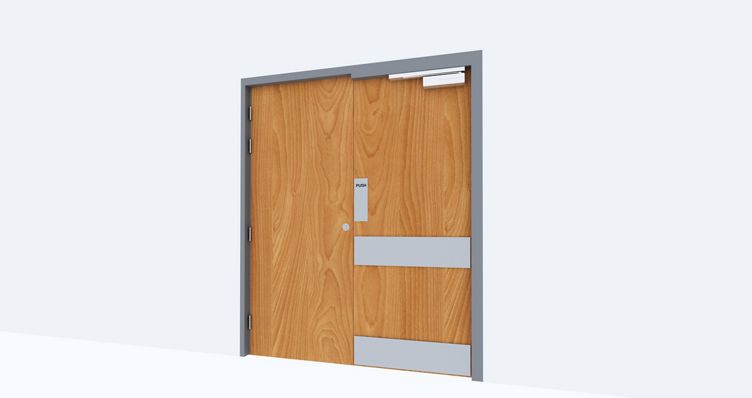

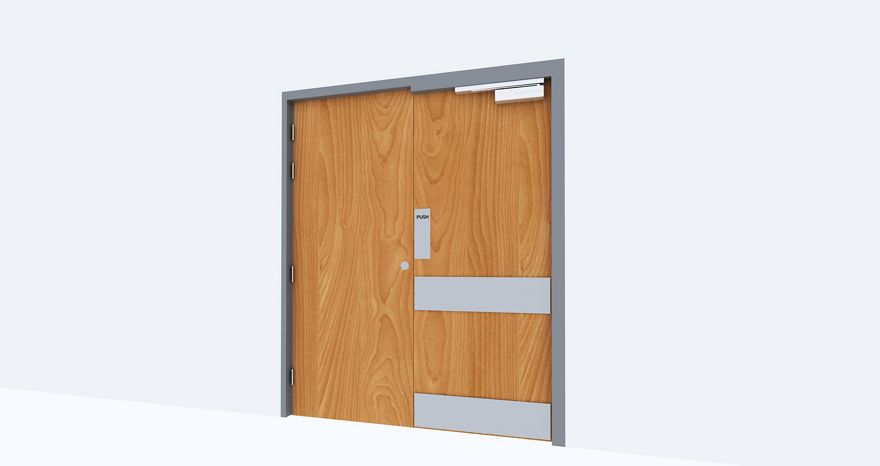

Steel Frame Wooden Doorset Double Egress Door- Double

Characteristics

• Full range of sizes
• Noise insulation properties 32dB
• Door Leaf is of Chip board core/Hardwood Lipping
• Door frames are made of solid wood or steel
• Door leaf and frame in PU paint (HPL Option available for Leaf)

Performance

• BS approval
• Resistance to sound transmission and acts like a sound barrier
• Acoustic rating available up to 32dB
• Usage: Internal

Sustainability

• Complies to the Green Building Requirement
• FSC sourced wood / wood composite materials
• Manufactured under ISO 9001:2015 certification

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked
• Panic touch bar with surface vertical rod exit device, Standard: BS EN 1125:2008, BS EN 1634. CE Marked. (EPD-ASA-20150160-IBA1-EN)
• Cam-Motion Door Closer, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150227-IBA1-EN )
• Floor mounted doorstop
• Self-adhesive perimeter silicone seal, compression type, with a pair of meeting stile astragal
• Intumescent seal

Typical applications: Double leaf corridor area in school, health care, residential, commercial buildings

Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN 1303, BS EN8424
