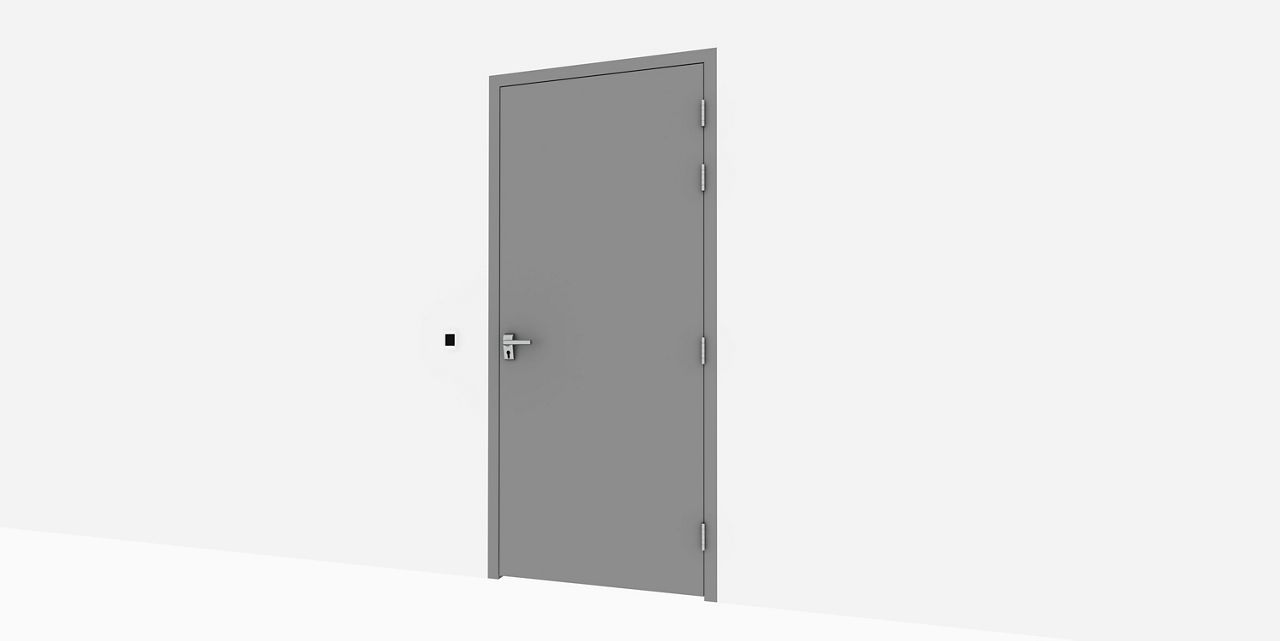

Steel Doorset, Fire Exit with Access Control - Single

Characteristics

• Full range of sizes
• Single leaf
• Doorframes are made of steel galvanised sheet and stainless steel
• Hollow metal steel door powder-coated in any colour from the RAL palette
• Door Frame: Welded corner or Knock down

Performance

• Certifire approval
• Increased finish performance for corrosion, antigraffiti and high impact
• Acoustic rating available up to 35dB (Honeycomb) and up to 50dB (Rockwool)
• Usage: Internal (Honeycomb); Internal and External (Rockwool)

Safety

• Finger guard option
• Fire Rated 90 min

Sustainability

• Thermal transmittance (U) value 1.56W/m2k
• Manufactured under ISO 9001:2015 certification
• Environmental Product Declaration (EPD) available for Honeycomb version

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002, CE Marked, Fire-Rated
• Panic Touch Bar, Standard: EN 1125:2008, EN 1634. CE Marked, Fire-Rated, EPD available
• Outside Access Device with European Cylinder Hole, Lever outside
• Mini- Magnet
• Card Reader Pandomini
• Power Supply
• Door Controller
• Micro Switch
• Euro Profile Half cylinder, Standard: EN 1303:2015, EN 15804, SKG Approved, EPD available
• Door Closer Cam-Motion, Standard: EN 1154, CE Marked, Fire-Rated, EPD available
• Floor mounted door stop
• Fire-Rated and Smoke proof Self-adhesive seal

Typical applications: Back of house areas of residential, commercial buildings, hospitals, schools, hotels, and others

Compatible Standards: EN1935, EN1154, EN1125, EN 1303, BS476 pt22, EN1634-1
