Application

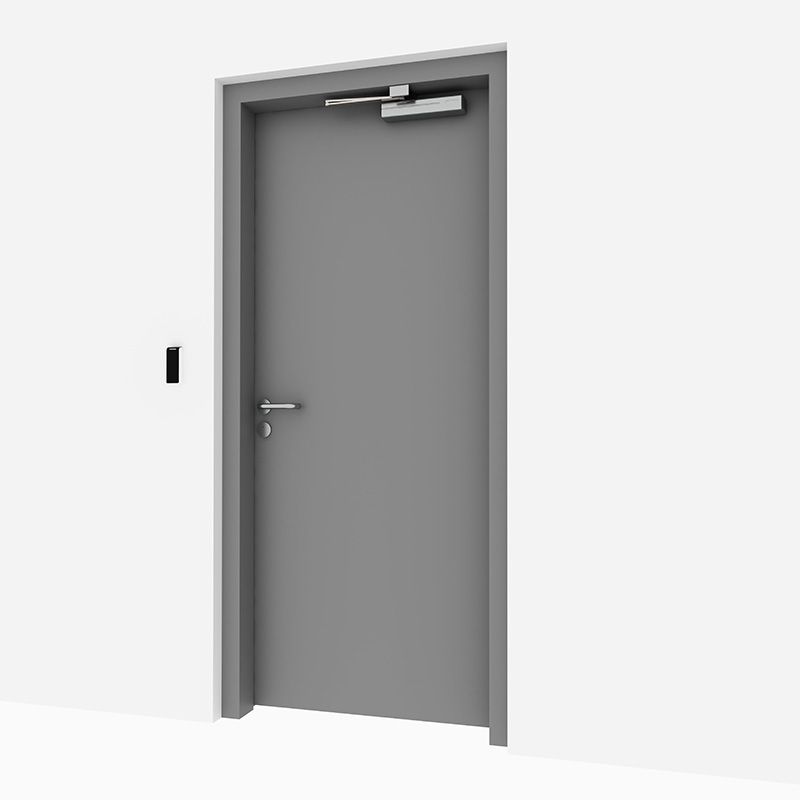

ASSA ABLOY Security Solutions Middle East solution for an Electrical Lock with Both side Access control room with fire rated single leaf steel door. Equipped with mortice electromechanical lock, lever handle; master keyed cylinder and rack & pinion door closer, Break Glass Unit, Card Reader.
Characteristics
• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Door powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down.
Performance
• Certifier approval
• Increased finish performance for corrosion
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool)
Safety
• Fire rating , Protection Plates, Armour plates, options available as required
Typical applications
Back of house areas of residential, commercial buildings, hospitals, schools, hotels, and others.
Sustainability
• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2015 certification
• Environmental Product Declaration (EPD) Available for Honeycomb.
Hardware Set
• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Mortice Electromechanical Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked.
• Lever Handle, standard: BS EN1906 Grade 3.
• MKS Knob Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
• Floor mounted doorstop.
• Break Glass Unit.
• Card Reader
• Lead Cover.
• Power Supply
• Door Controller
• Door Contact
• Cable.
• Gasketing.
Compatible Standards:
BS EN1935, BS EN1154, BS EN 14846, BS EN 1906, BS EN 1303, BS476 pt22, BS EN1634-1.
