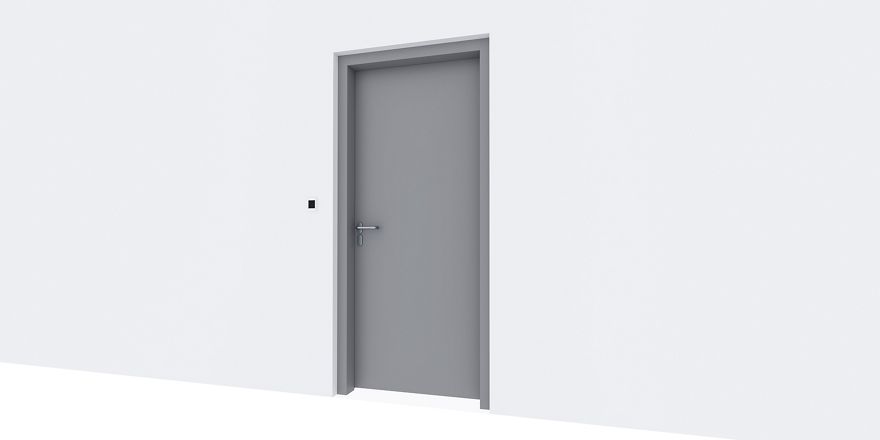

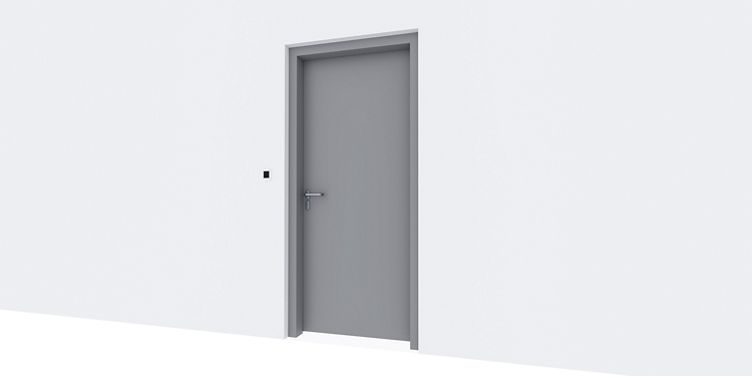

Single Steel Doorset Access control & Multipoint lock

Characteristics

• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Hollow metal steel door powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down

Performance

• Certifier approval
• Increased finish performance for corrosion
• Physical Performance Levels A & B to ANSI A250.4 2011 Available as per specification requirements.
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool)

  Safety

• Fire rating up to FD180

Sustainability

• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2008 certification
• Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Self-activating panic lock with multi-point lock. (EPD-ASA-20130279-IBC1-EN)
• Lever Handle, standard: BS EN1906 Grade 3.
• Escutcheon
• MKS Single Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
• Card Reader Pandomini
• Door Controller
• Floor mounted doorstop.
• Self-adhesive seal.
• Door contact Steel Door
• Self-adhesive seal

Compatible Standards: BS 1245-2012, BS 476 Part 22, UL10C, BS EN1935, BS EN1154, BS EN12209, BS EN1906, BS EN 1303, BS EN14351-1, BS EN1634-1.
