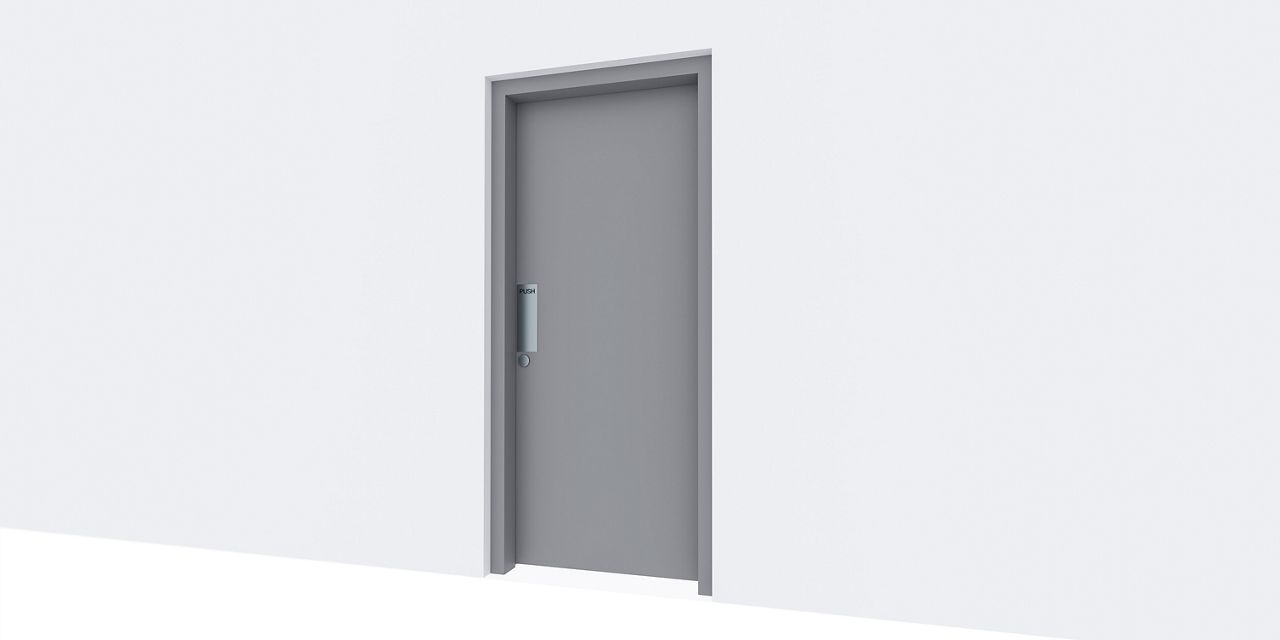

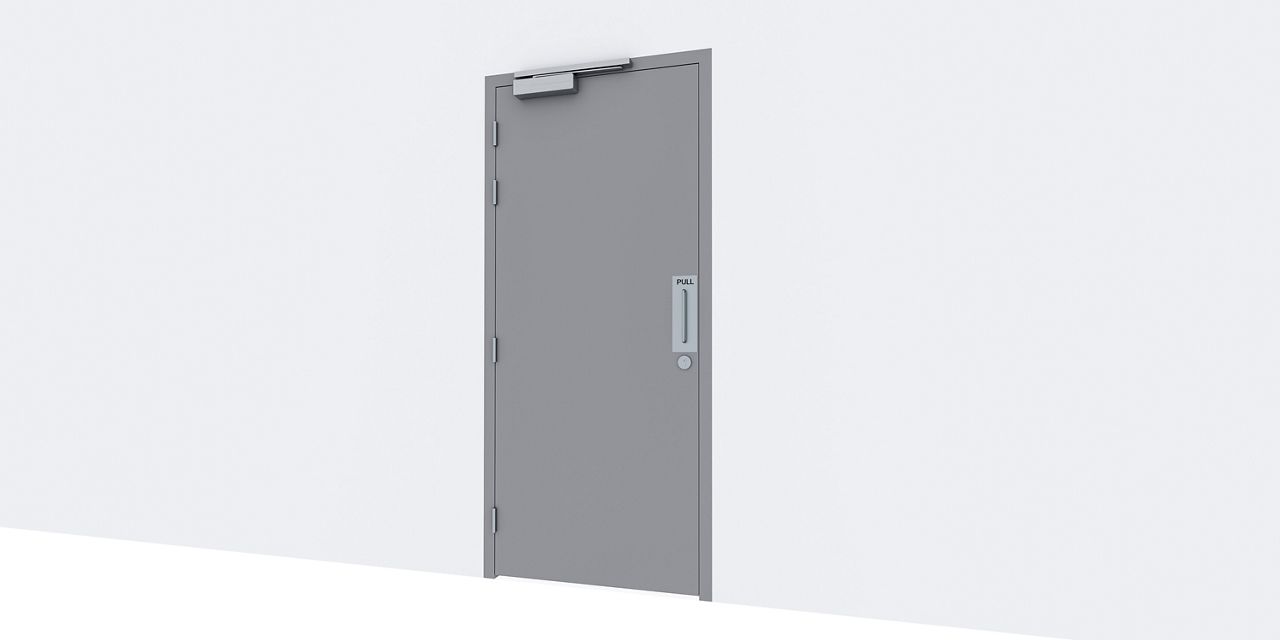

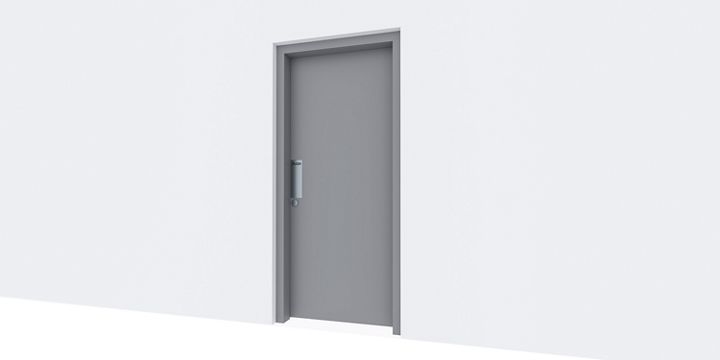

Steel Doorset Standard non-fire rated Door- Single

Characteristics

• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Hollow metal steel door powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down

Performance

• Physical Performance Levels A & B to ANSI A250.4 2011 Available as per specification requirements.
• Increased finish performance for corrosion
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool), Substations /Unmanned (PIC)

Safety

• Protection Plates, Armour plates, Grills, Sand Trap Louver options available as required.

Sustainability

• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb),  Upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2008 certification
• Environmental Product Declaration (EPD)  Available for Honeycomb

Hardware Set

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Mortice Lock case dead lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
• MKS Double Cylinder, Standard: BS EN 1303:2015,  BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked.  (EPD-ASA-20130275-IBC1-EN)
• Push Plate
• Pull Plate
• Escutcheon.
• Floor mounted doorstop.

Compatible Standards: BS 1245-2012, ANSI A250.4 -2011, BS EN1935, BS EN1154, BS EN12209, BS EN 1303.
