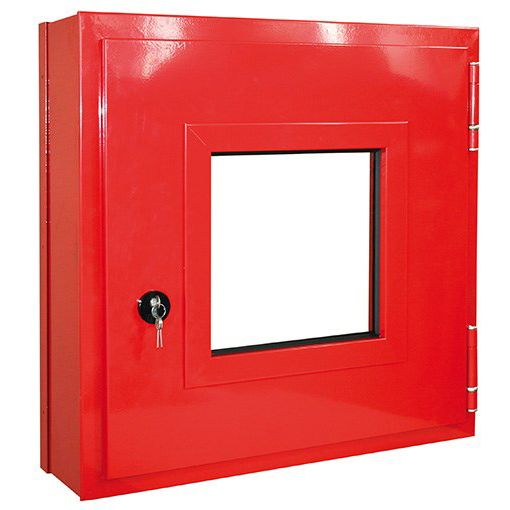

Construction:

Cabinet door:

• galvanised steel sheet 0,8 mm
• EI60
• finishing: powder coating
• fire-rated glass EI60; dimensions 35 x 35 cm, thickness 25 mm

Cabinet shell (steel panel):

• galvanised steel sheet 1,5 mm
• EI90 • finishing: powder coating
• no back side
• back side is a wall for mounting (must be fire-rated)

Gaskets:

• rubber and expanding gaskets in cabinet shell (all four sides)

Fittings:

• fire-rated central lock (EN 12209)
• hinges with ball bearing (pcs.2)
• halfcylinder with 3 keys
• fire-rated expanding grills (pcs.2)

Installation:

• on the brick or concrete wall
• dry assembly walls (with steel construction for mounting)
• installations for fire cabinet must be done concealed
• Dimensions according to the size of fire central

*Most common dimensions 80 x 80 x 25 cm, inside dimensions 65,8 x 65,8 x 18,5 cm.

Option: ventilation fire-rated expanding grill
