DC700 Cam-Motion door closer
For single-leaf doors up to size EN 6 (1400 mm), optionally with closing delay or 180° opening angle

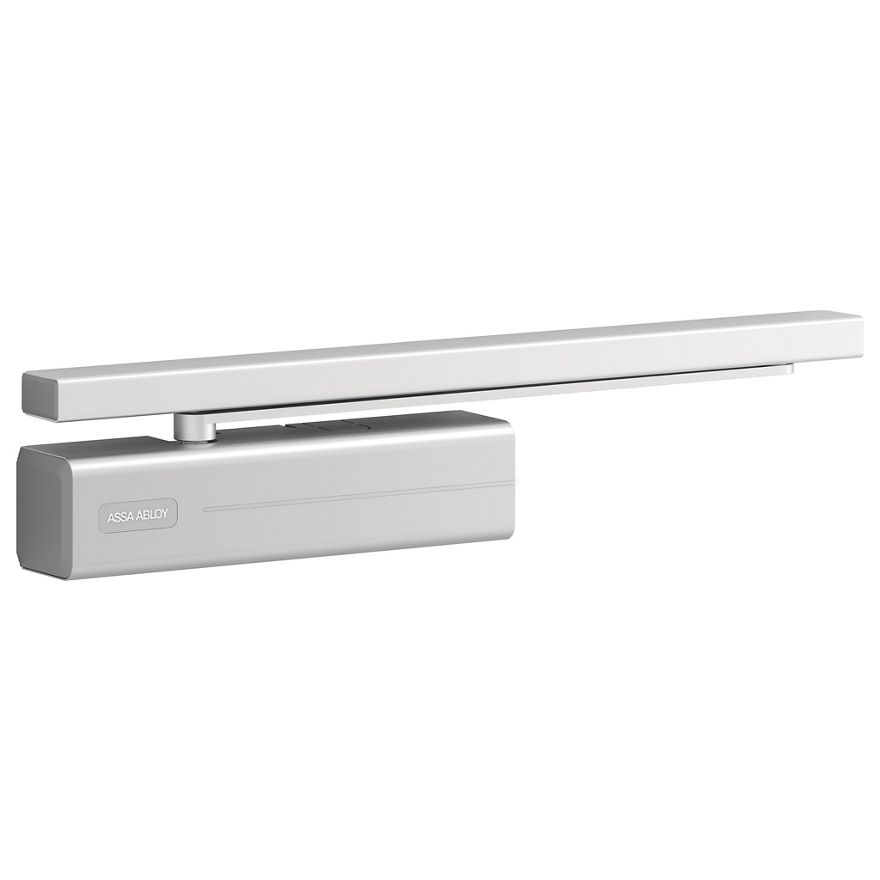

Door closer with Cam-Motion® technology and guide rail
Product description
- Door closer with Cam-Motion® technology and height adjustable guide rail G195 or standard guide rail G193
- Barrier-free in accordance with DIN18040 for door width up to max. 1250mm
- Meets the requirements of DIN SPEC 1104 / CEN15894
- Certified in compliance with EN 1154, size 3-6
- Suitable for fire and smoke protection doors
- For single action doors up to 1400 mm wide
- Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
Overview of Advantages
- Can be used with concealed mounting plate, suitable for fire and smoke protection doors
- Can be used for left and right-handed doors
- Axis continuously height adjustable up to 14 mm
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Thermodynamic valves for consistent performance
- Variable adjustable closing force
- Opening angle up to 160°
- Effective backcheck and latching speed range adjustable
- Large range of applications
- Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel-design
- Customised finishes available on request
Characteristics of special model DC700DA
- Delayed closing variable from max. opening angle - 70°, adjustable from front
- Other features as in model DC700
- Characteristics of special model DC700AC
- Opening angle of 180° for standard installation on hinge side
- Other features as in model DC700
- Characteristics for guide rail G195
- Height adjustable by 2 mm for tolerance
- Concealed fastening screws

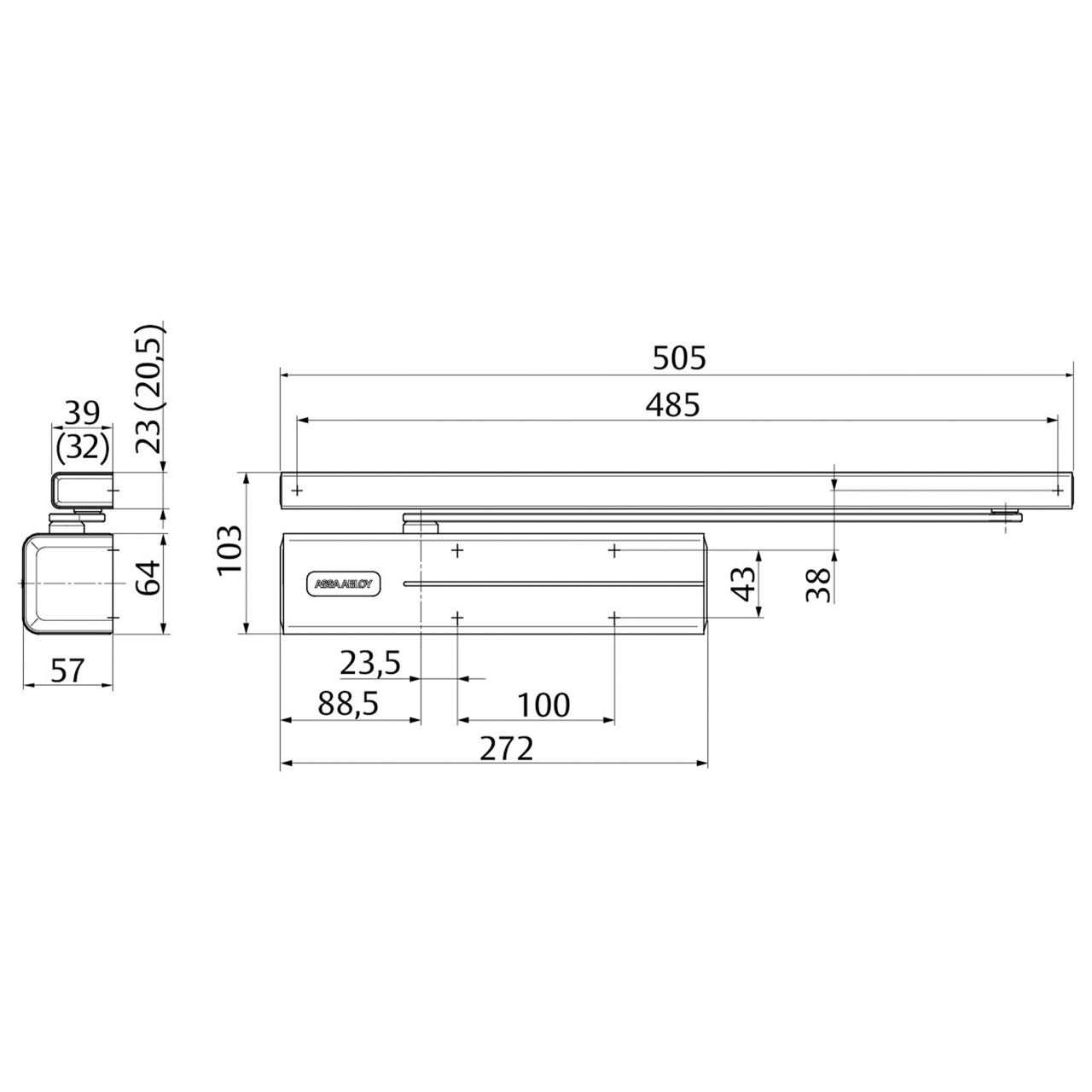

- Installation dimensions: see diagram
Characteristics of standard guide rail G193
- Without protective cover
- Visible fastening screws
- Installation dimensions: see diagram (dimensions in brackets)
