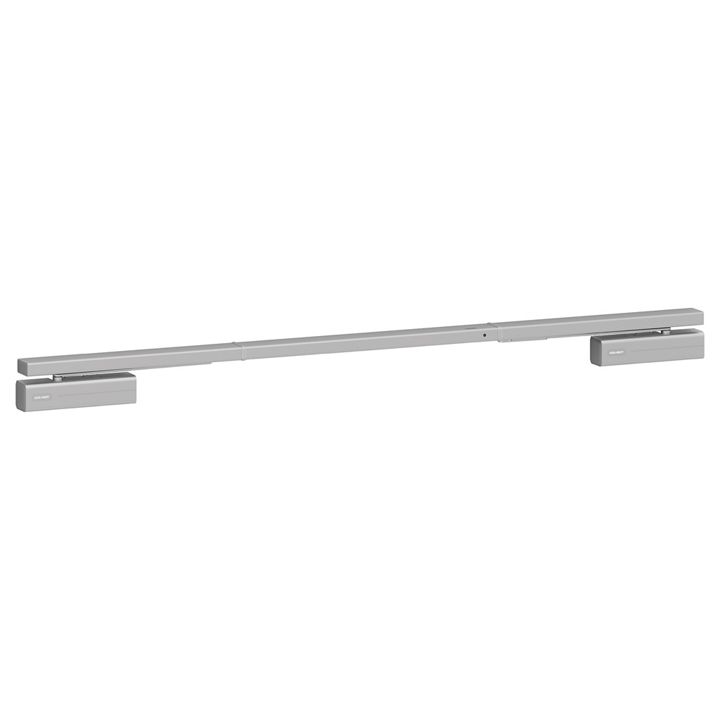

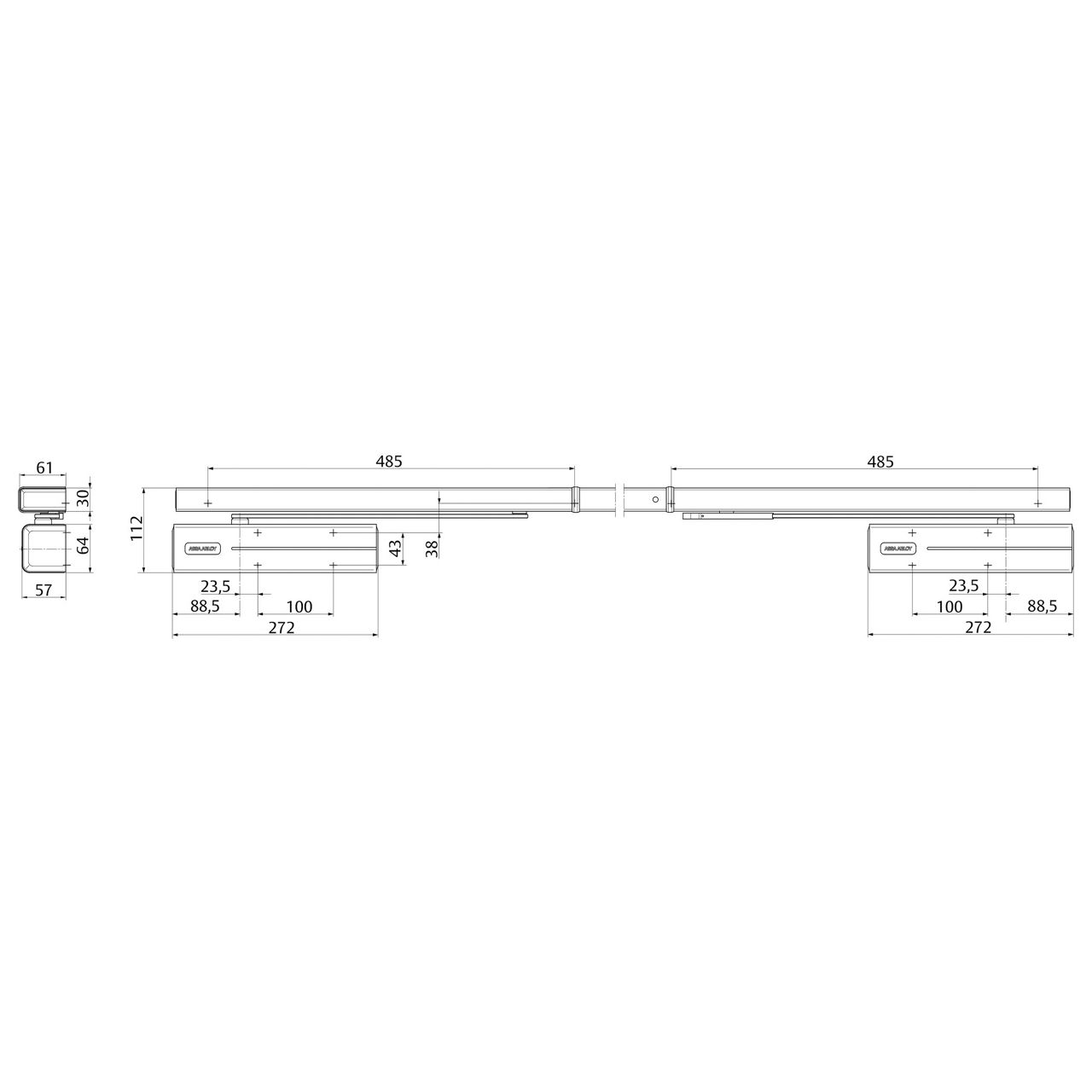

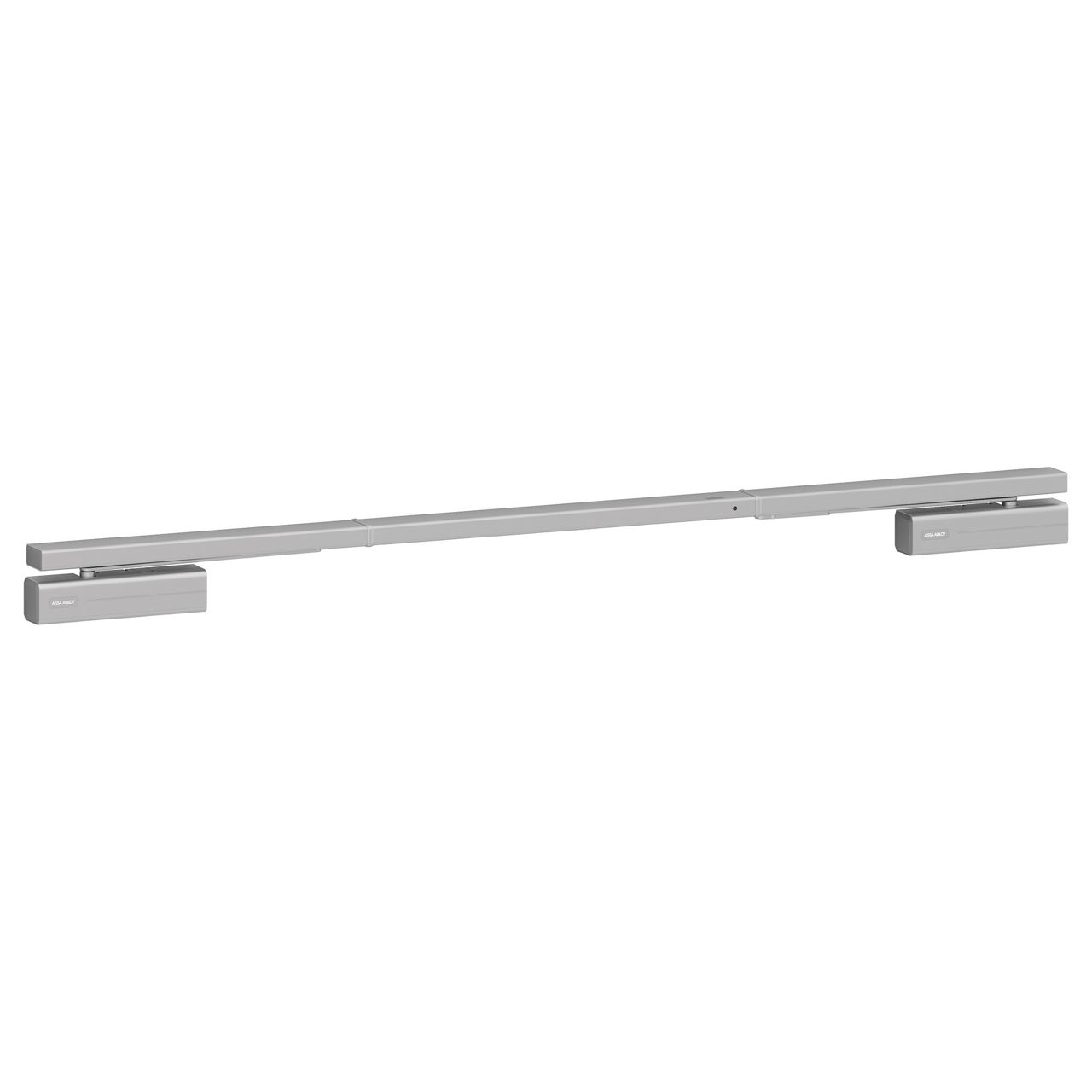

G-CO-CS guide rail for DC700 door closer

Door closer with Cam-Motion® technology with electro-mechanical hold open device, smoke detector and integrated mechanical door coordinator, non-hinge side

Product description

  • Door closer with Cam-Motion® technology with electro-mechanical hold-open device, smoke detector and integrated mechanical door coordinator for double leaf doors, DIBt approval Z-6.500-2364
  • DIBt approval Z-6.500-2364
  • Mechanical door coordinator in continuous guide rail
  • Smoke switch with contamination indicator and alarm threshold monitoring
  • Integrated 230 V power supply
  • All components fully integrated into continuous guide rail
  • Convenient opening of the door with with rapidly decreasing opening torque of the door closer
  • Suitable for fire and smoke protection doors with a hinge distance between 1430 mm and 2500 mm

Overview of Advantages

  • Door coordinator based on wedge system
  • Regular mounting on non-hinge side, can be used for left and right-handed doors
  • Optical smoke detector after scattered light principle
  • Status displayed on LED: operational mode, alarm, maintenance
  • Integrated potential-free alarm relay
  • Can be activated by a fire alarm system
  • Connectivity for manual release buttons and ceiling smoke detectors
  • Electro-mechanical hold-open device
  • Continuously adjustable holding force
  • Traversable arrestor point, continuously adjustable between approx. 80°-110°
  • Flush or surface installation of wiring possible, 230 V AC
  • For doors with panic function in conjunction with the driving flap A102
  • Symmetric and asymmetric door partition possible, minimum width of the inactive leaf = 400 mm
  • Door opening angle up to approx. 120°, maximum opening angle limited
  • Guide rail height adjustable by 2 mm for tolerance
  • Axis continuously height adjustable up to 14 mm
  • Closing speed, latching speed and backcheck adjustable via front facing regulating valves
  • Variable adjustable closing force
  • Thermodynamic valves for consistent performance
  • Effective backcheck and latching speed range adjustable
  • Standard colours: silver EV1, white similar to RAL9016, stainless steel design
  • Customised finishes available on request

Note

  • Guide rail G-CO-CS
  • Facts for door closer see DC700
