DC500

Door closer with Cam-Motion® technology and guide rail – for single leaf doors, size 1-4

The DC500 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort.

  • Certified in compliance with EN 1154, size 1-4
  • Suitable for fire and smoke protection doors
  • For single leaf doors up to 1100 mm width
  • Barrier-free according to DIN 18040 and CEN/TR 15894

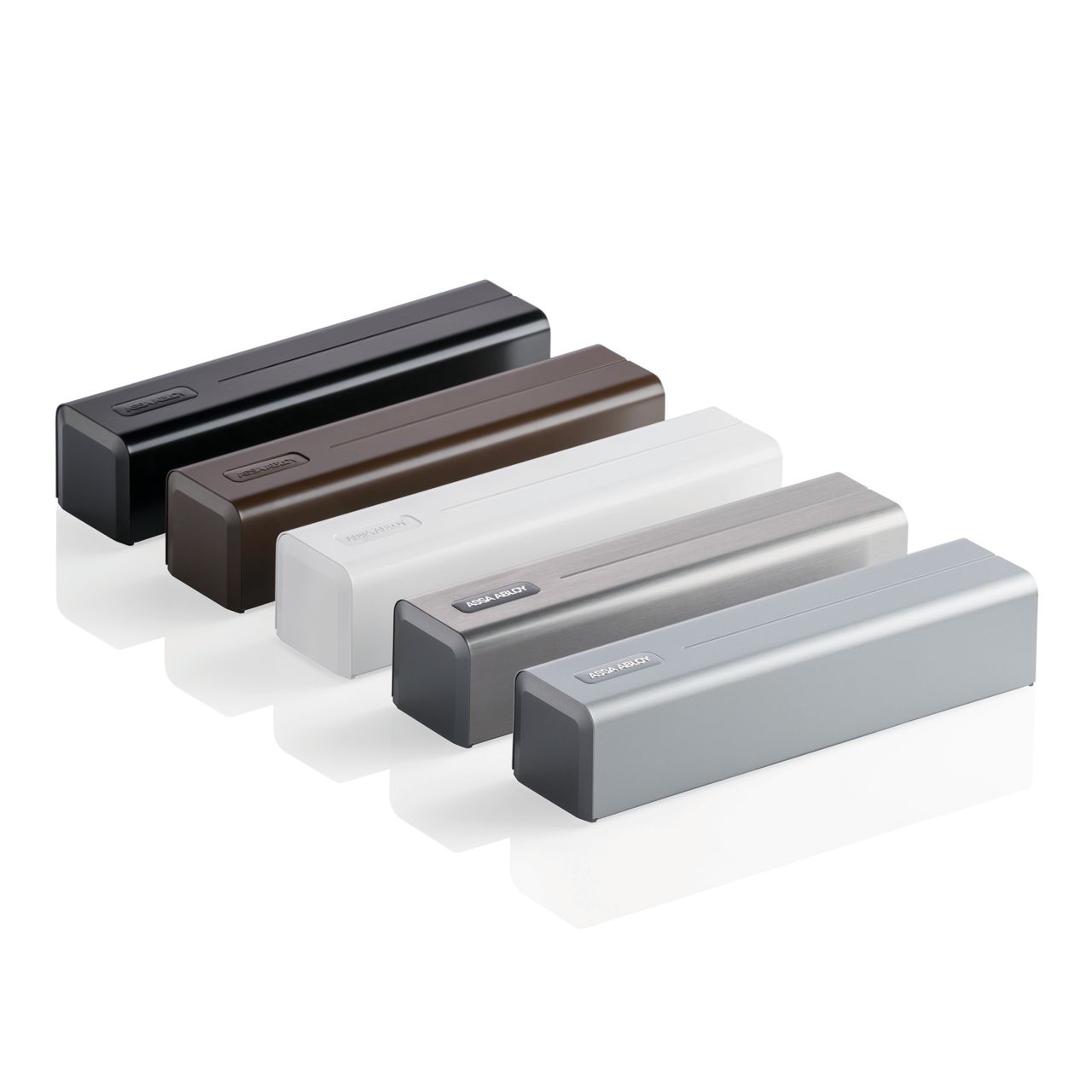

Colours

  • Silver, EV1

  • White, similar to RAL 9016

  • Brown, similar to RAL 8014

  • Black, similar to RAL 9004

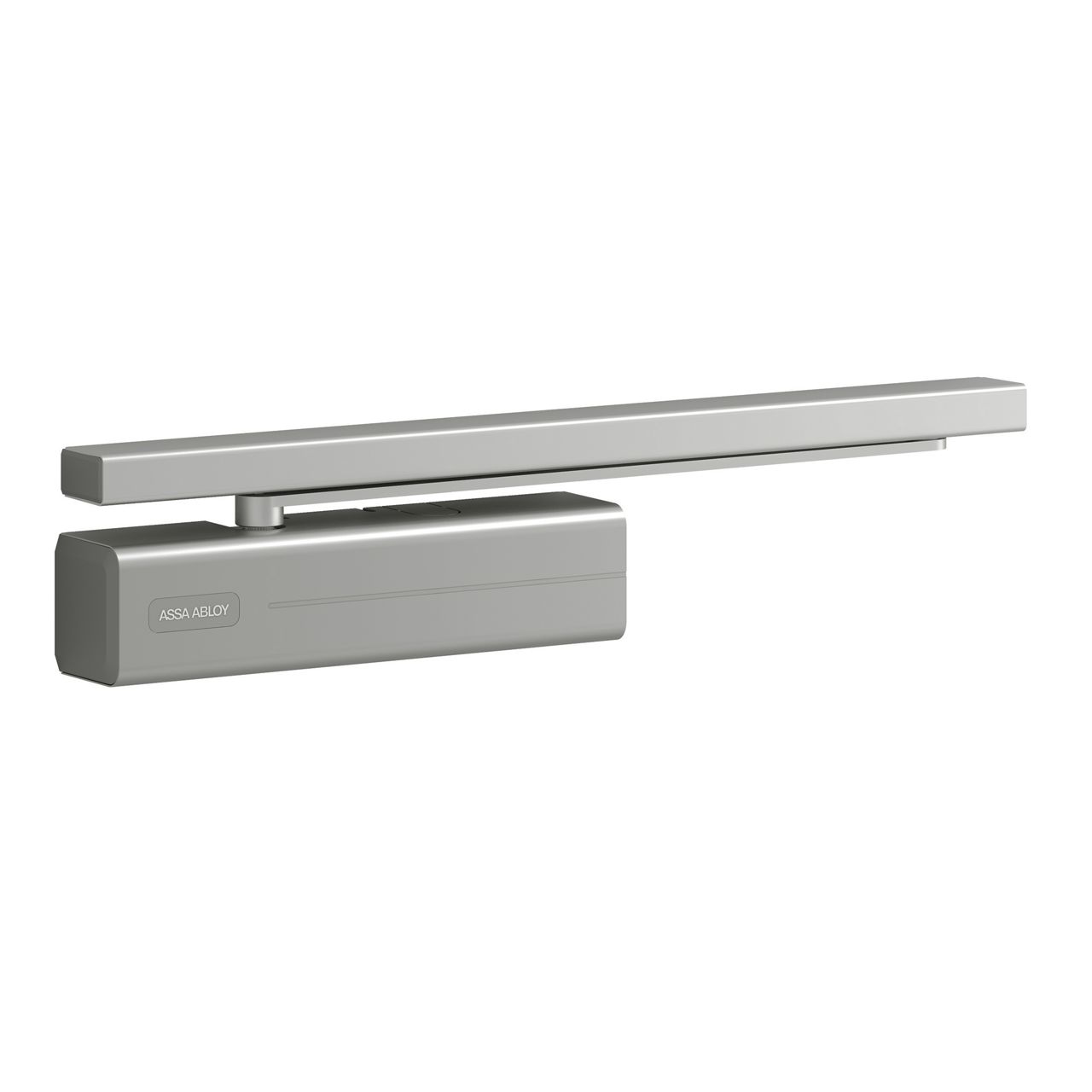

  • Stainless steel, design and full cover

  • Customized colours on request

Watch the installation video Learn more about our Cam-Motion technology

1 of 10

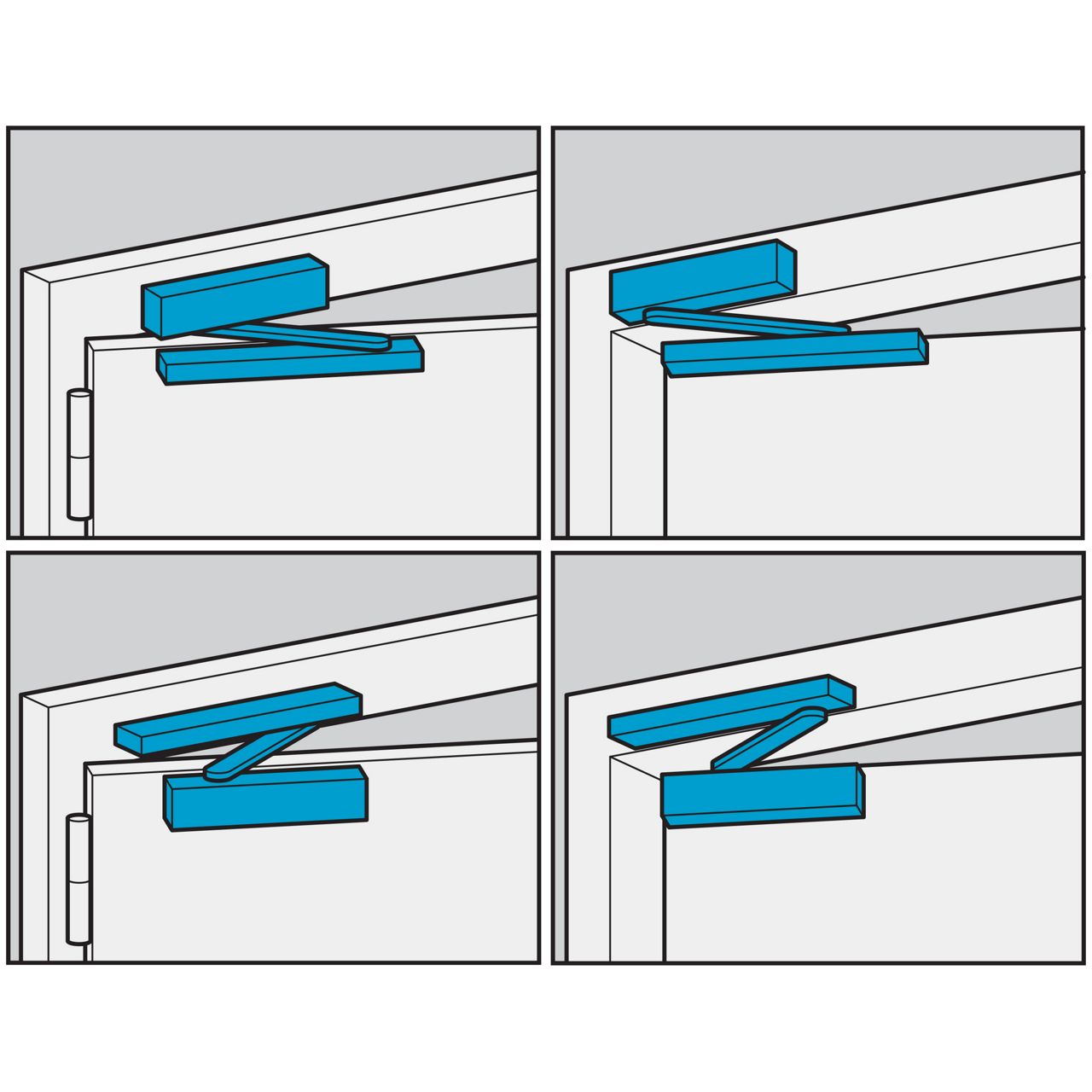

  • 4 mounting options

    Door closer fits door or frame mount, push or pull side – right out of the box

  • Height-adjustable spindle

    Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays

  • Independent adjustments

    Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use

  • Multiple finishes

    Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
