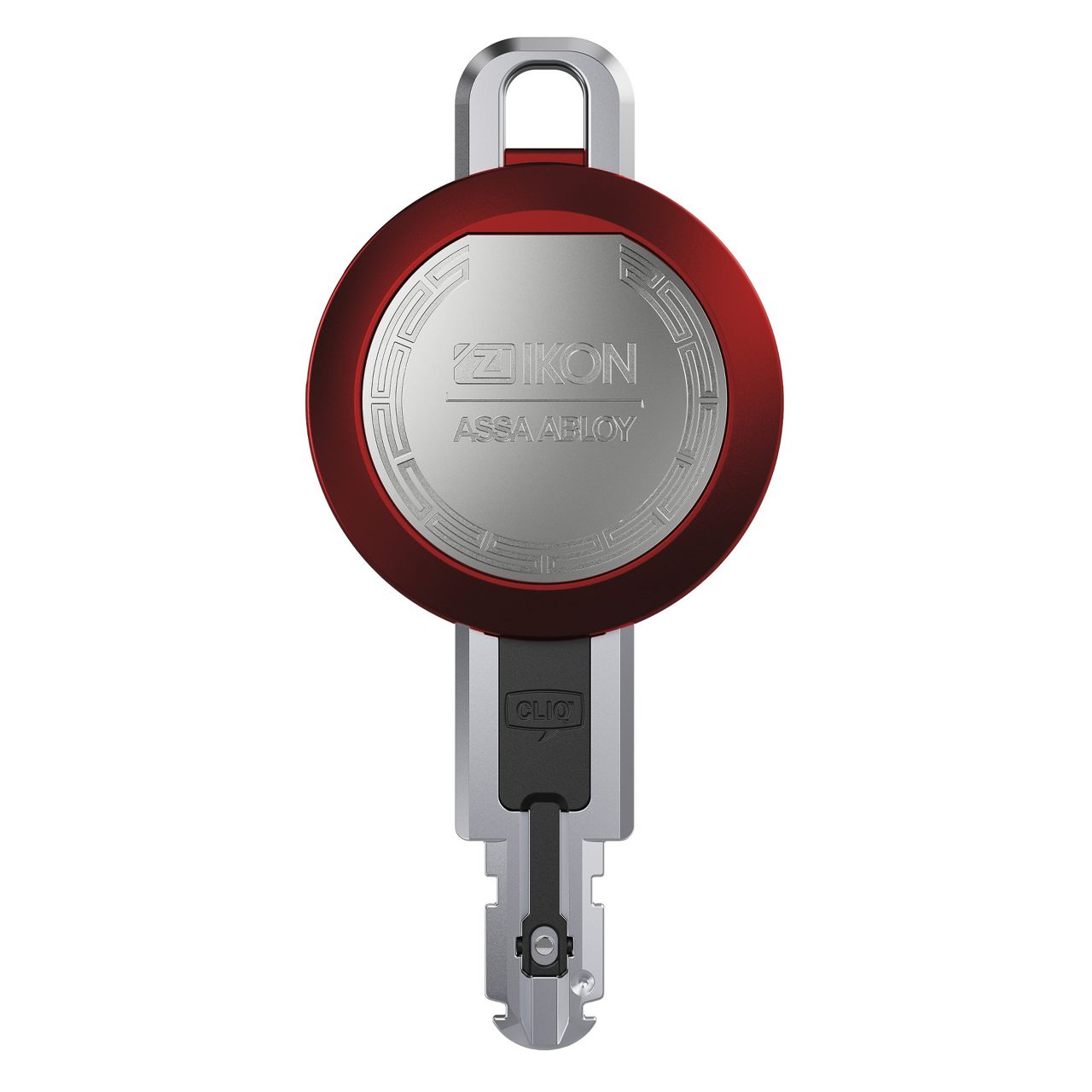

Key eCLIQ N109,V=PR/PSM/PN

Product description

Transfers up to 3,000 programming steps to cylinders
Can read out up to 6,000 events from the cylinders and transmit these to software
Electronic authorisation confirmation within the software
Protected by a 6-digit individual PIN code
Electronic key-unique and locking system encryption
Optical and acoustic signals for indicating programming tasks and battery status
The data and power transmission to the cylinder is contact based
The data transmission to the cylinder is highly encrypted
Temperature range 0° C to +70° C
Protected against temporary immersion in water (IP67)
Power supply via commercially-available lithium battery (CR2450)
The battery can be easily changed by the user without tools

Optional, additional lower ranking programming keys can be supplied for a locking system (N109,V=PN and N109,V=PSM)

Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery
