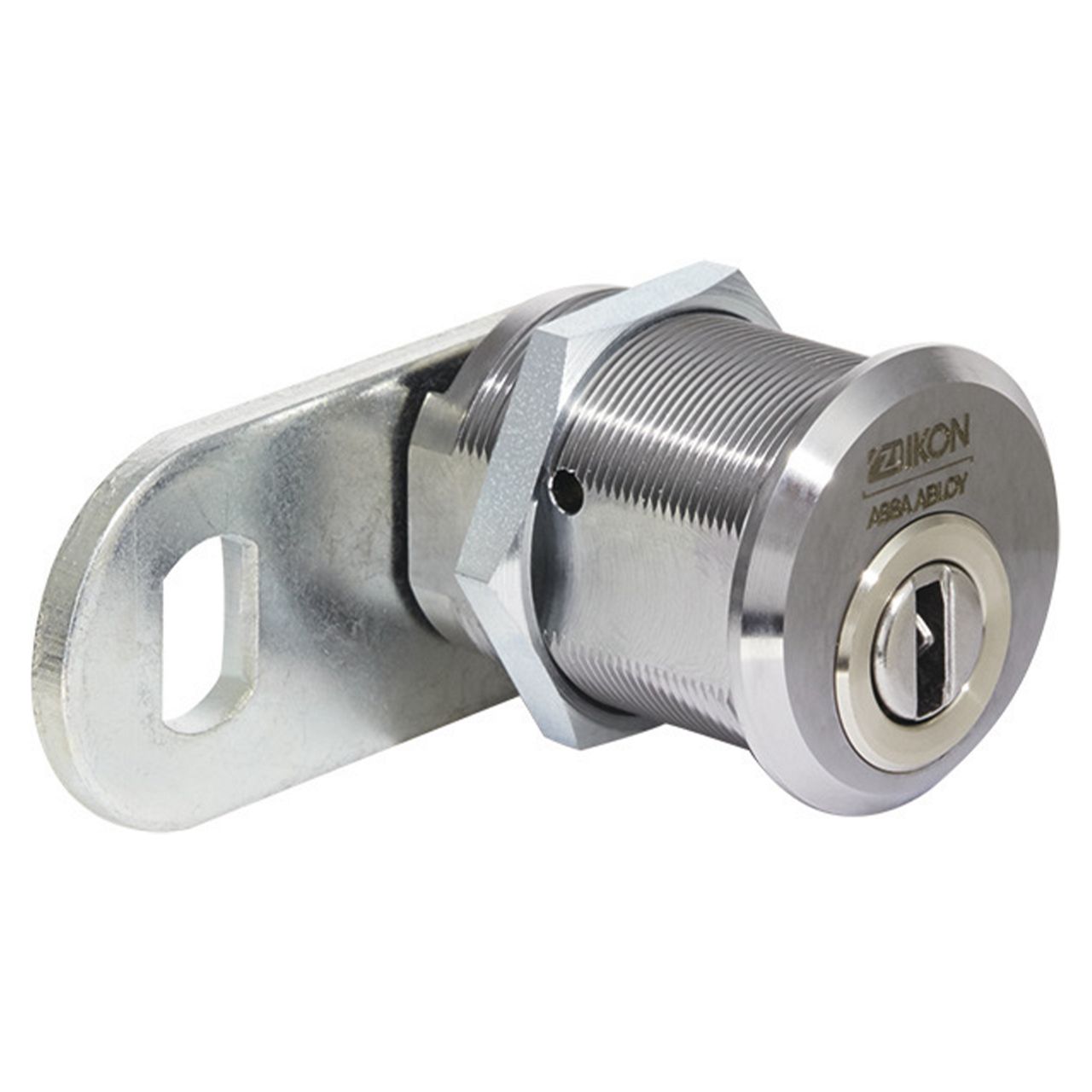

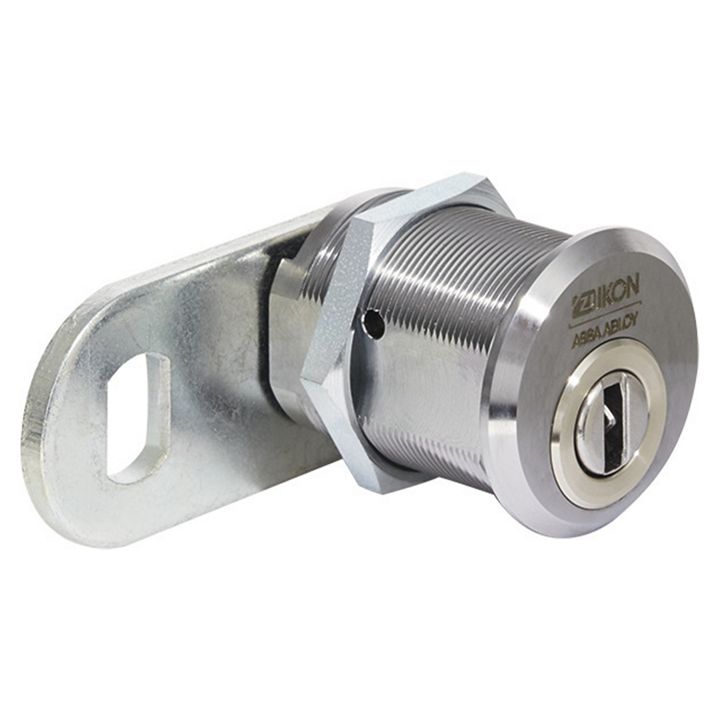

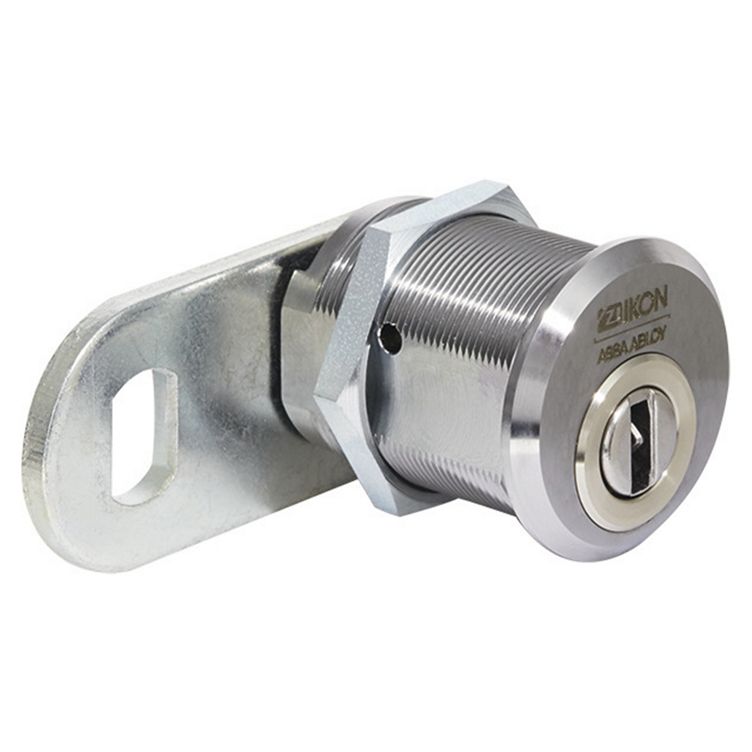

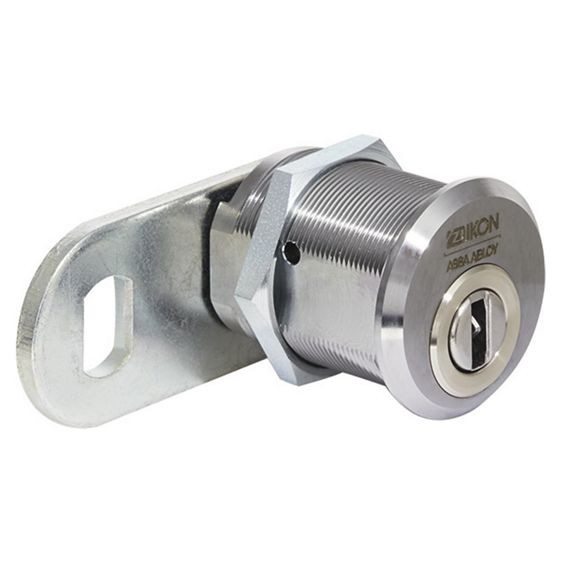

Locking lever cylinder eCLIQ N923

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, matt chrome-plated (OF=MC)

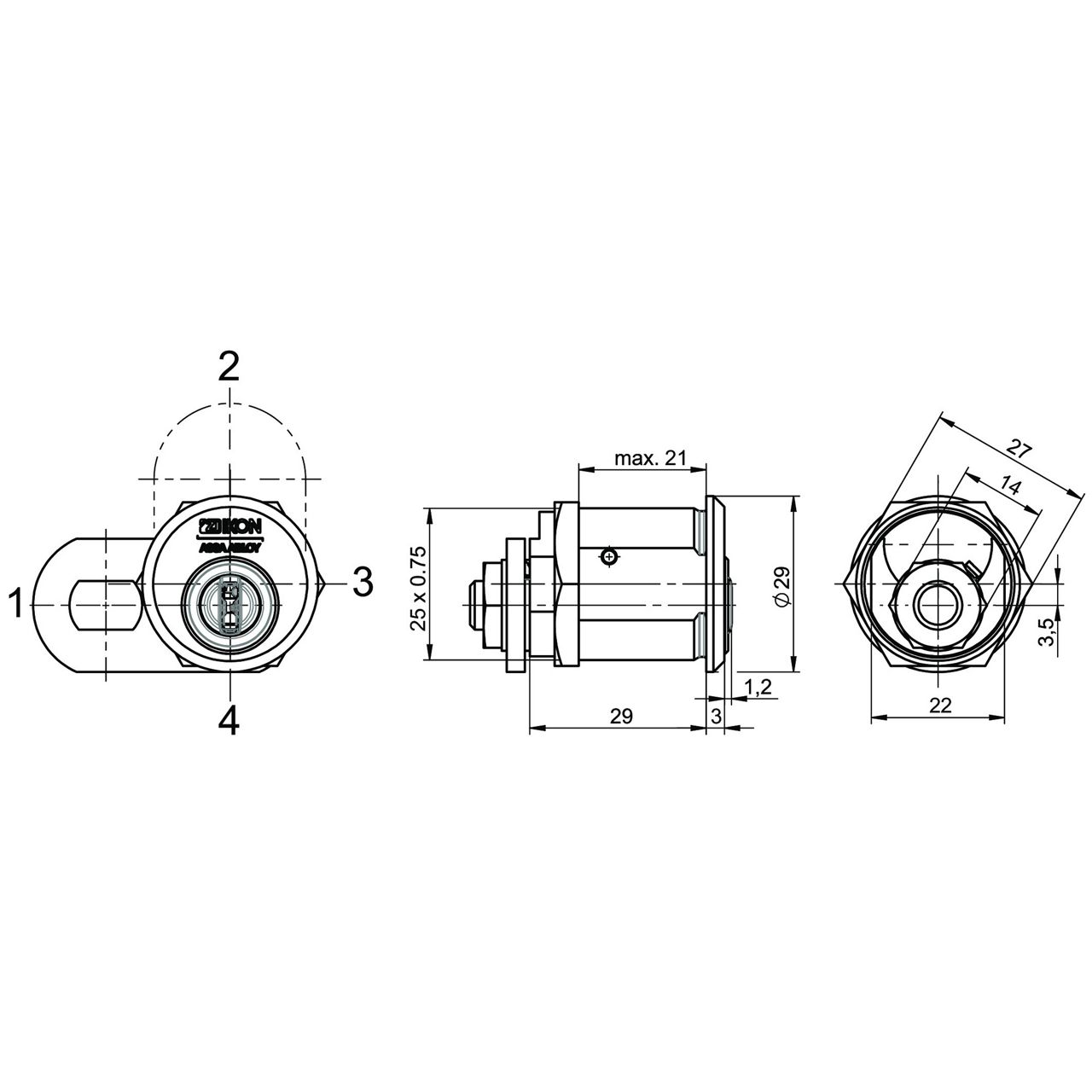

Dimension in mm A, L, B: 38, 29, 21
Fixing with M25 x 0.75 housing nut
Standard locking lever (SLHB=1645009)
Locking path and locking lever path 90º left or right
Key withdrawal when locking lever is closed
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

Ordering Information
