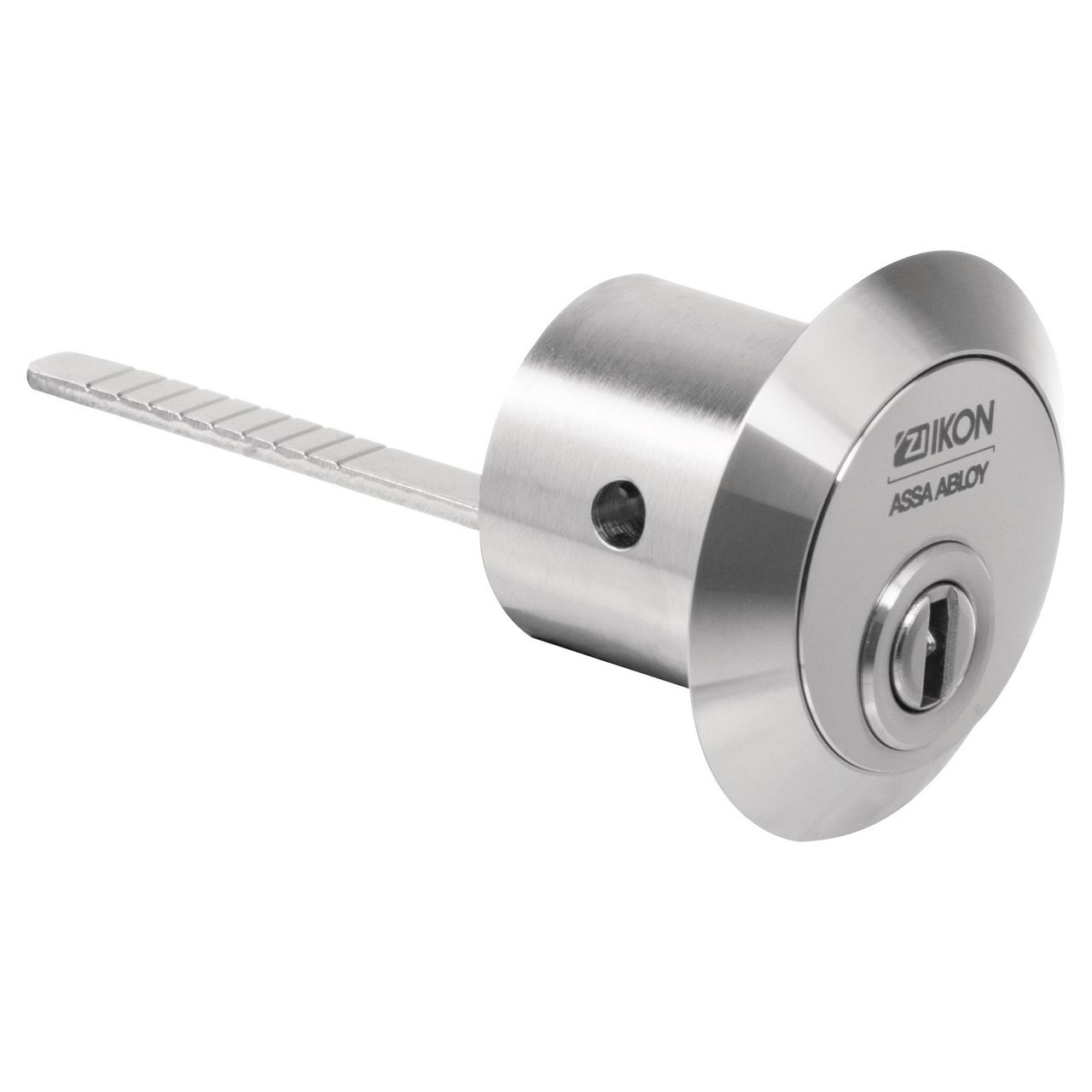

External cylinder eCLIQ N063

• Product description

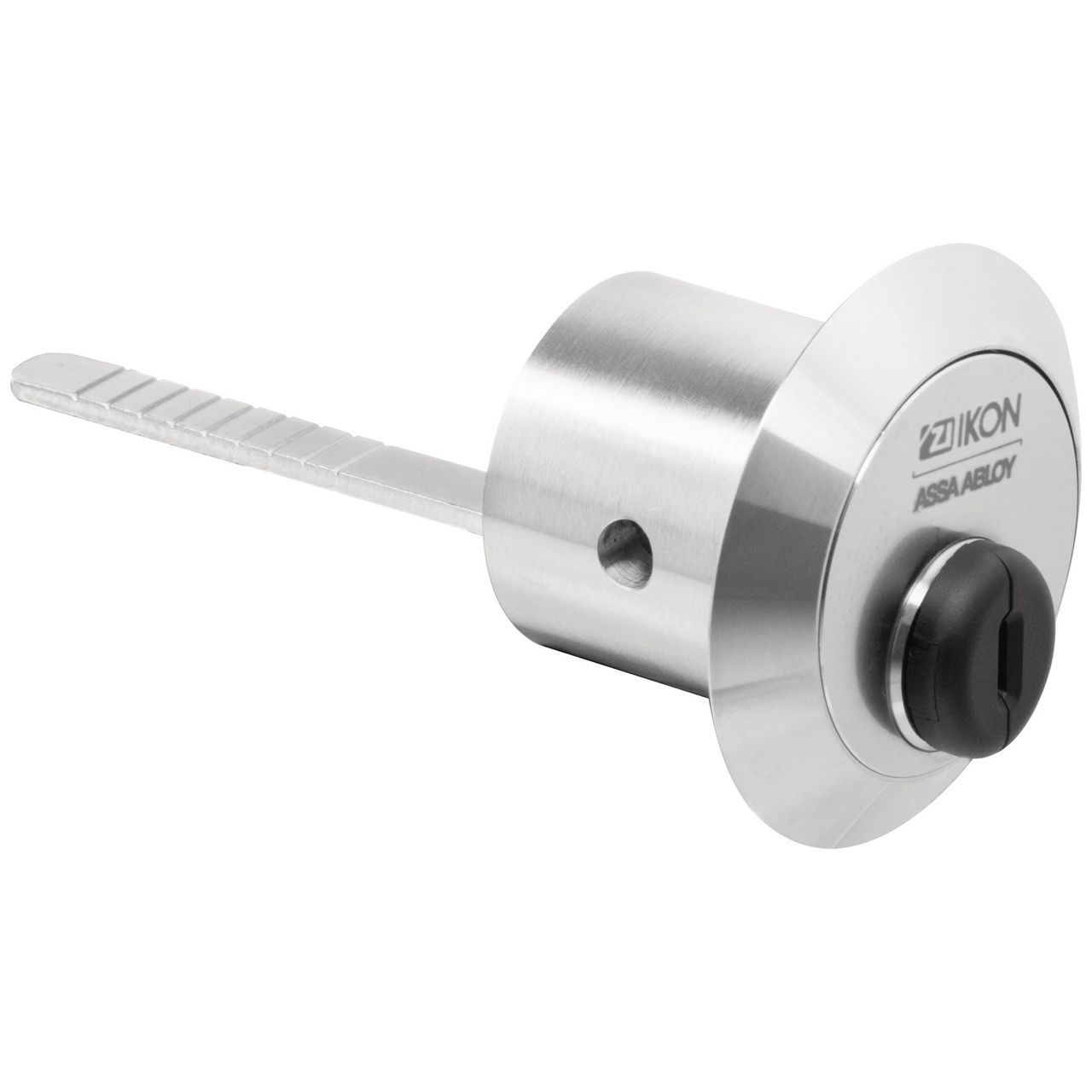

• Available as rotary secured or electronical version (V=)
• Brass cylinder housing components
• Standard finish, satin nickel-plated (OF=MV)
• Standard anti drilling protection (AB=2)
• Screwed onto lock cover from within using M6 screws
• Maintenance-free for up to 200,000 cycles
• Dust and rain cover available (SUR=1) IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

• 1 external cylinder
• 1 shim ring
• 2 screws DIN EN ISO 7046

Ordering Information

• Combination with IKON security escutcheons only possible in version SUR=0
