eCLIQ

CLIQ^® technology.

Product description

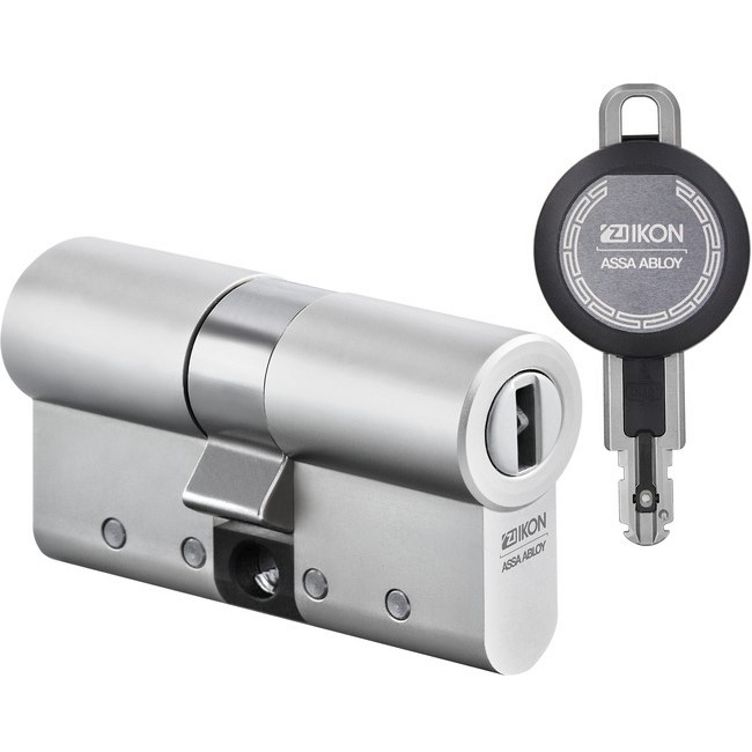

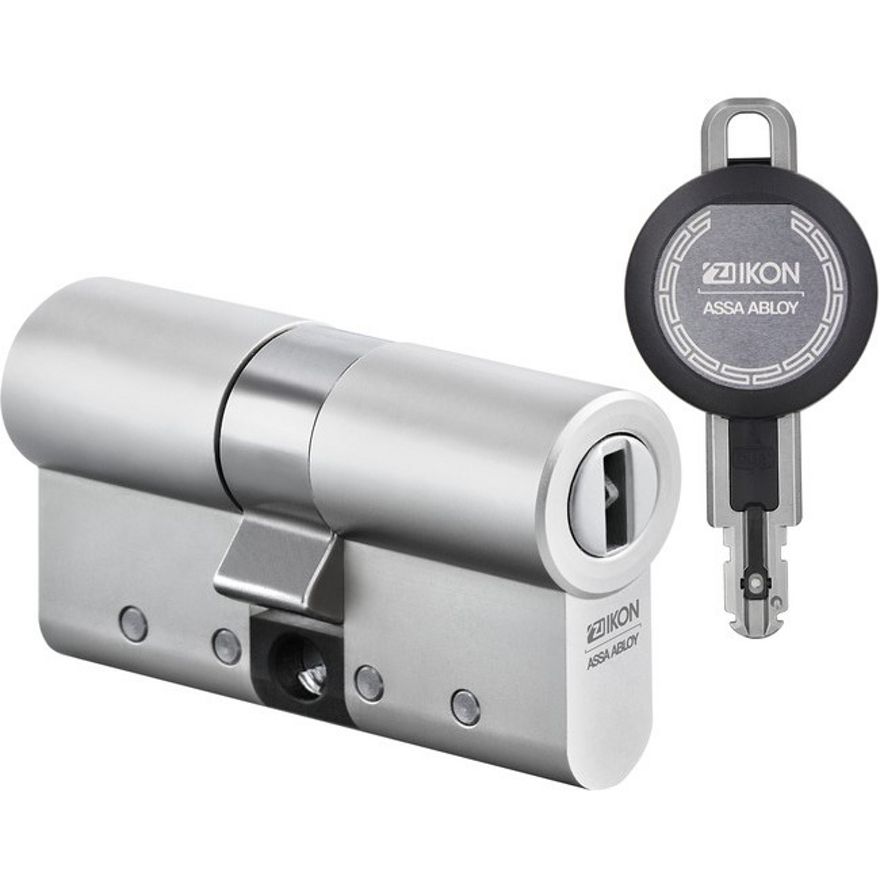

Profile-cylinder

• Unique and locking system coding
• Combination of electronic and rotationally-secured cylinder halves possible
• Adaptable housing kit
• Optional enhanced drilling protection
• Optional comfort function for bilateral opening
• Free rotation angles (optional)
• Integrated chip to store access authorisations and events log
• Operational temperature range: between -25°C and +85°C
• Maintenance-free for up to 200,000 cycles
• DIN EN 15684:2021-05
• VdS approval, class BZ+ according to VdS 2156-2
• Splash-proof IP54
• Optionally with dust and rain protection cap IP55
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIB T4 Gb)

User key

• Reversible key: always fits, no matter which way it is inserted into the cylinder
• Optical and acoustic signalling for access entitlements, time zone and battery status
• Optional different colouring of the battery cover
• Optionally with RFID chip integrated in the battery cover
• Temperature range 0° C to +70° C
• Protected against temporary immersion in water (IP67)
• Power supply via commercially-available lithium battery (CR2450)
• For 100,000 locking operations (service life of about 10 years)
