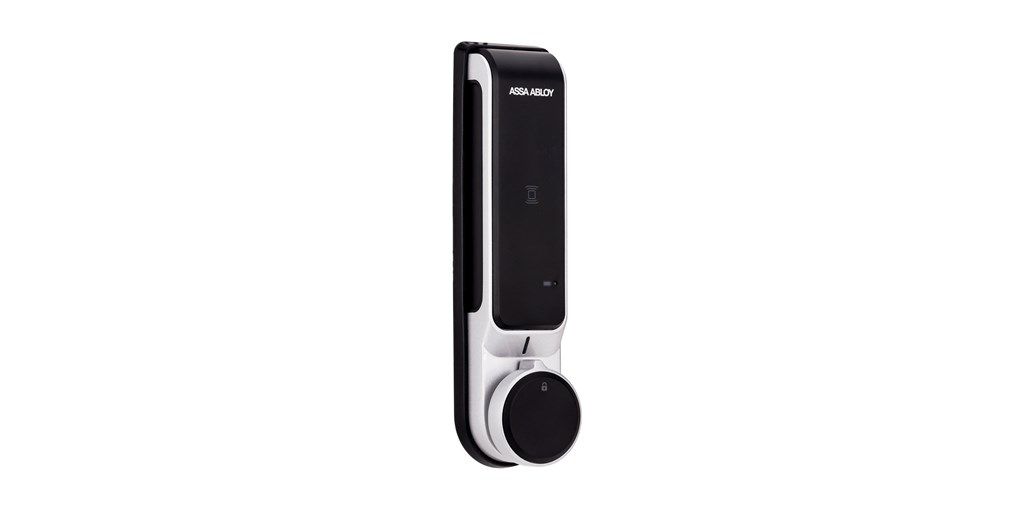

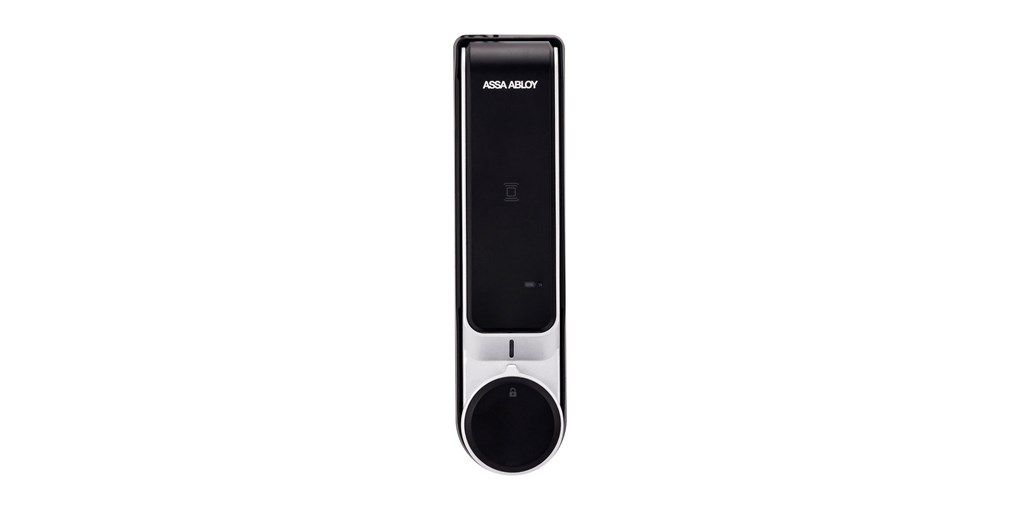

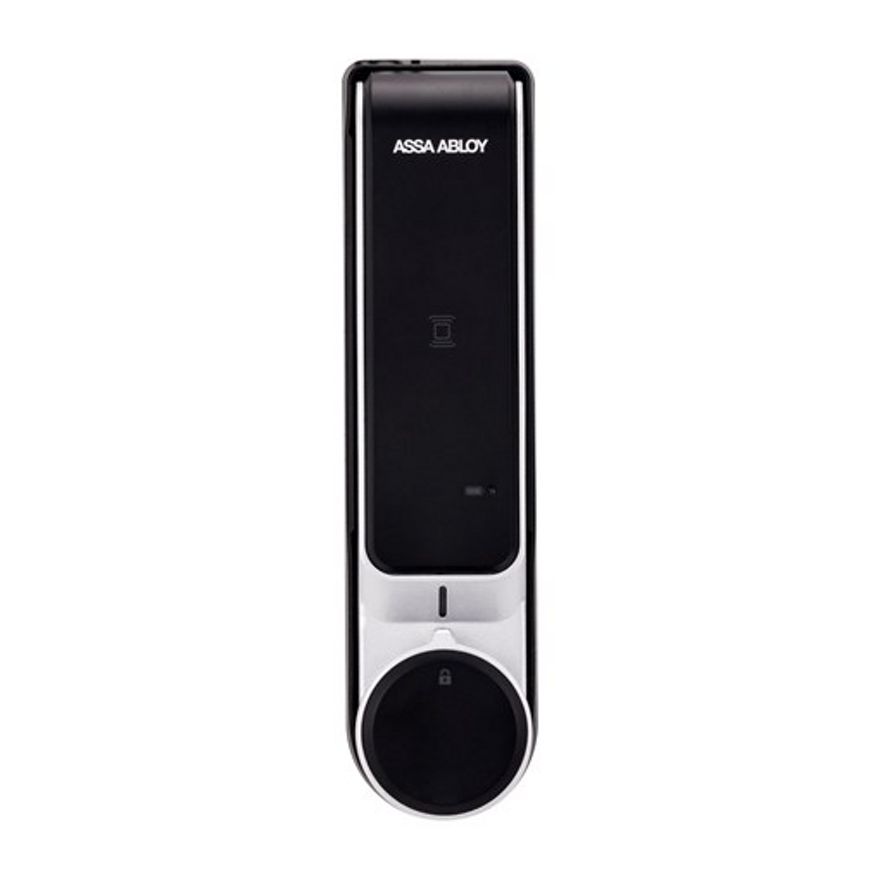

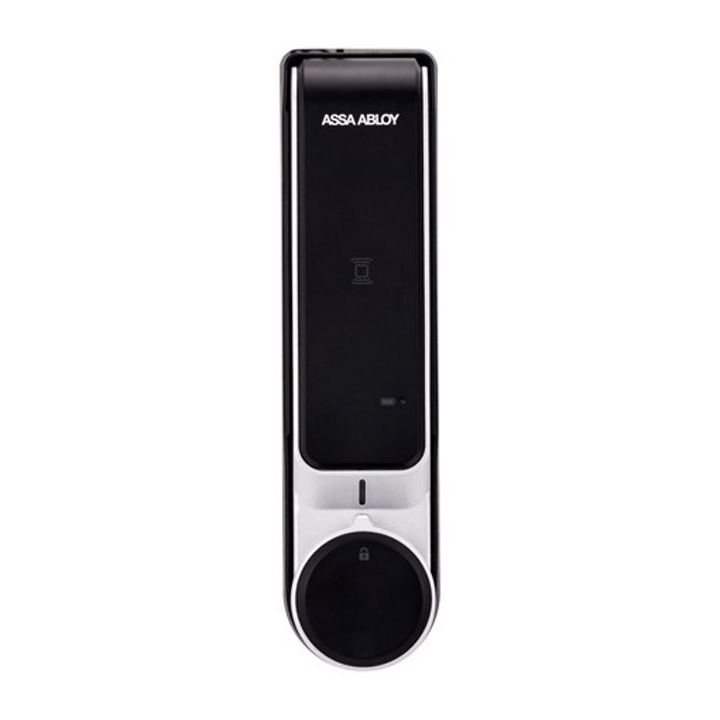

Convenient PIN Keypad and RFID Card solutions to manage your organisation’s lockers and cabinets.

Features

Attractive slim line design
Battery status LED
Lock status LED
Standard Alkaline batteries, 3 x AAA
Micro USB power back up
Suits doors up to 23mm thick
3mm thick stainless steel cam
Supported RF type: 13.56MHz ISO14443A MIFARE Classic, Ultralight, DESFireEV1
Accepts up to 20 Administration Cards, 20 Master Cards and 20 User Cards per lock

Applications

Digital Cam Locks – How to Set User Cards

Material:
Die-cast (Body & Knob), ABS (Front)

Operating Temperature:
-20oc ~ +70oc

Operating Humidity:
0 ~ 90%

Credential Levels:
Administration: 1 – 20 RF Tags
Master: 1 – 20 RF Tags
User: 1 – 20 RF Tags

Battery / Life:
3 x AAA Alkaline batteries
1 Year (using 10 times a day)

Salt spray tested to:
96 hours

Compliance:

Door Thickness:
1 to 23mm

Cam:
2 x Standard 3mm thick stainless steel cams supplied, one straight cam, one offset cam

Note: Other 8 x 8mm square drive cams are suitable for this product.
