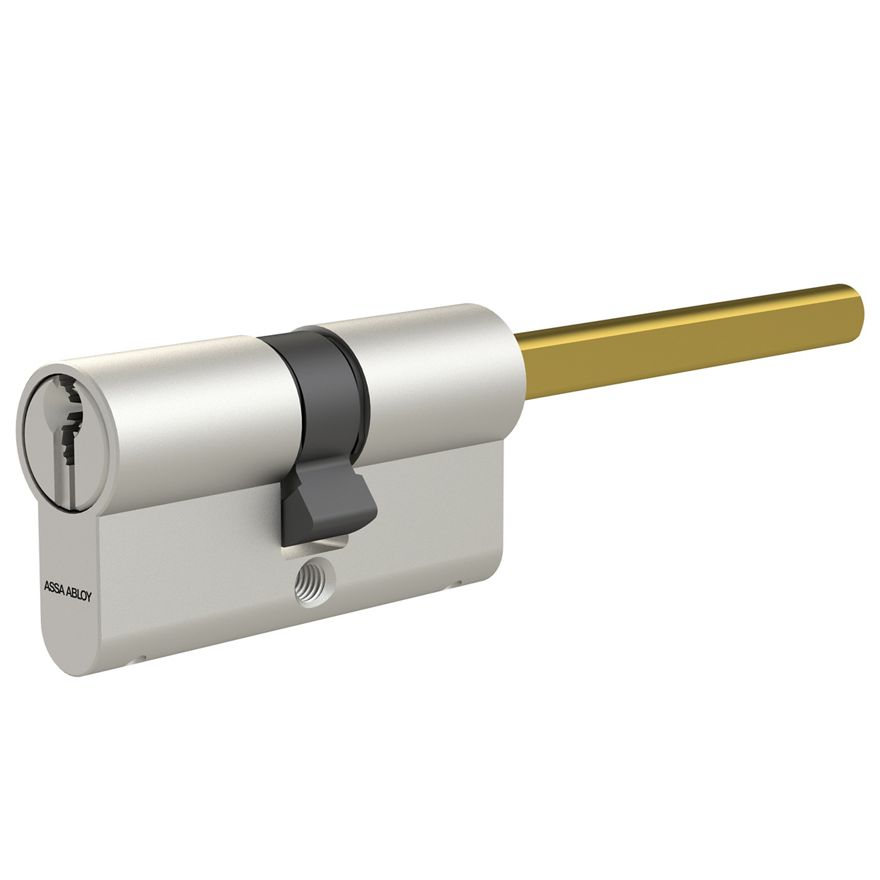

CYS10 Euro double cylinder with thumbturn axis

Durable and secure, the CYS10 double cylinder provides the protection you need to lock your building‘s doors.

The cylinder is assembled with a thumbturn axis to cut it to a preferred size and fit a custom design.

Applications:

External and internal doors
Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.

Feature	Detail
Security	EN 1303:2015 certified, 1 6 0 B 0 C 6 D \| SKG** certified (except anti-snap design) \| DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-bump (only for KA and KD)
Number of keys	MKS and KA: according to order \| KD: 3
Max. number of effective key differs	144,729
Max. number of MKS profiles	63
Number of pins	6
Raw material	Brass
Finish	Satin nickel
Cylinder length	Minimum: 27/27 mm \| Maximum: 90/90 mm \| Increments: 5 mm (starting from 30/30 mm)
Weight	251 g (length 30/35 mm)
